AT-WCU201G Wireless Adapter Card Installation Guide
43
3. Click Data Encryption and select either TKIP (Temporal Key Integrity
Protocol) or AES (Advanced Encryption Standard) from the pull-down
menu. The encryption method must be the same on both the wireless
node and the wireless access point.
4. Click the Authentication Config button.
The Advance Security Settings window is shown in Figure 27.

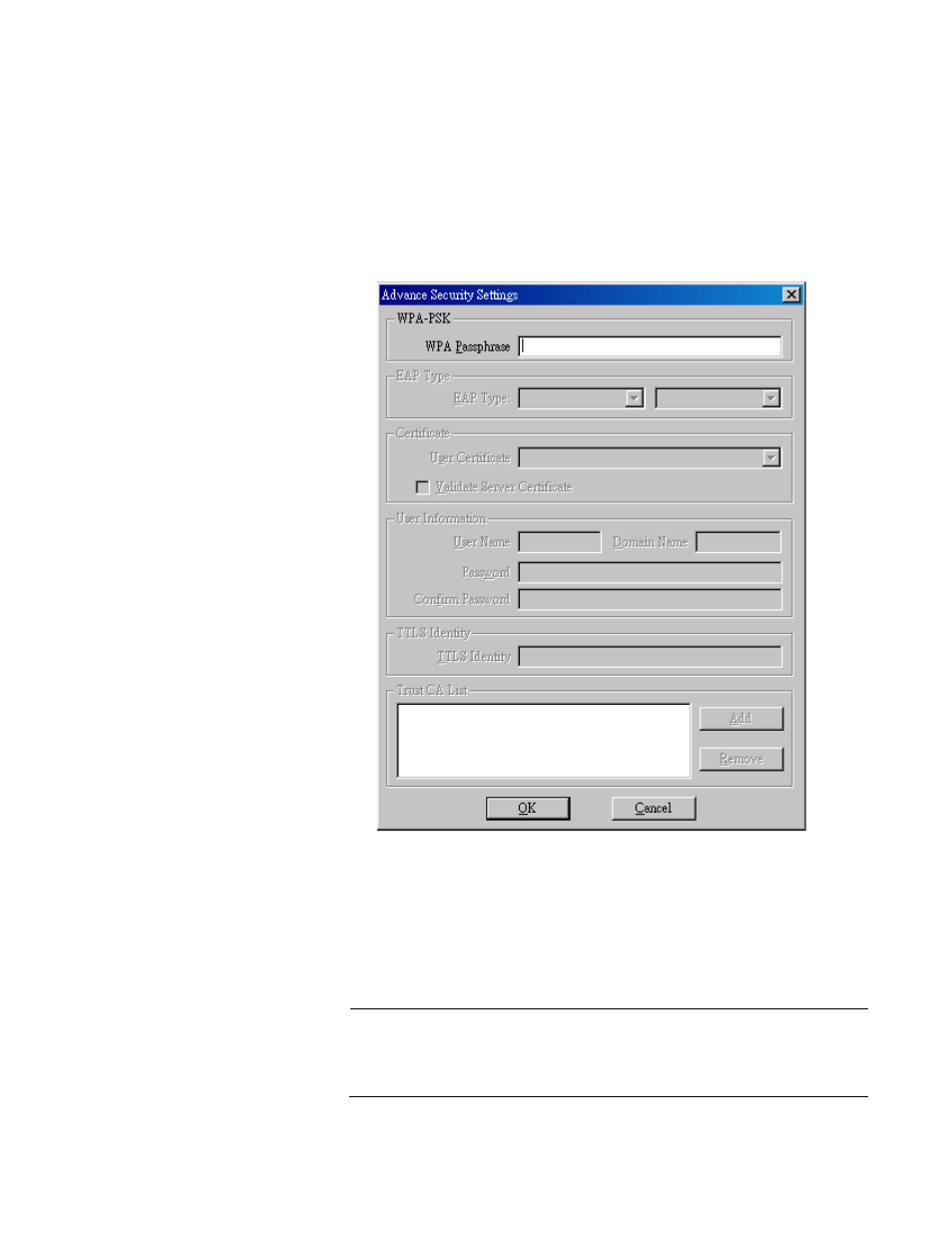

Figure 27. Advance Security Settings Window
5. Click the WPA Passphrase field and enter the passphrase (also
referred to as the shared secret) from the wireless router or access
point.
6. Click OK to close the Advance Security Settings window.
Note
You must assign the profile an IP address. To set the IP address
now, go to step 5 in “Configuring the IP Address” on page 45. To set
the IP address at another time, complete this procedure.
