AT-MCF2000S Stacking Module Installation Guide
21

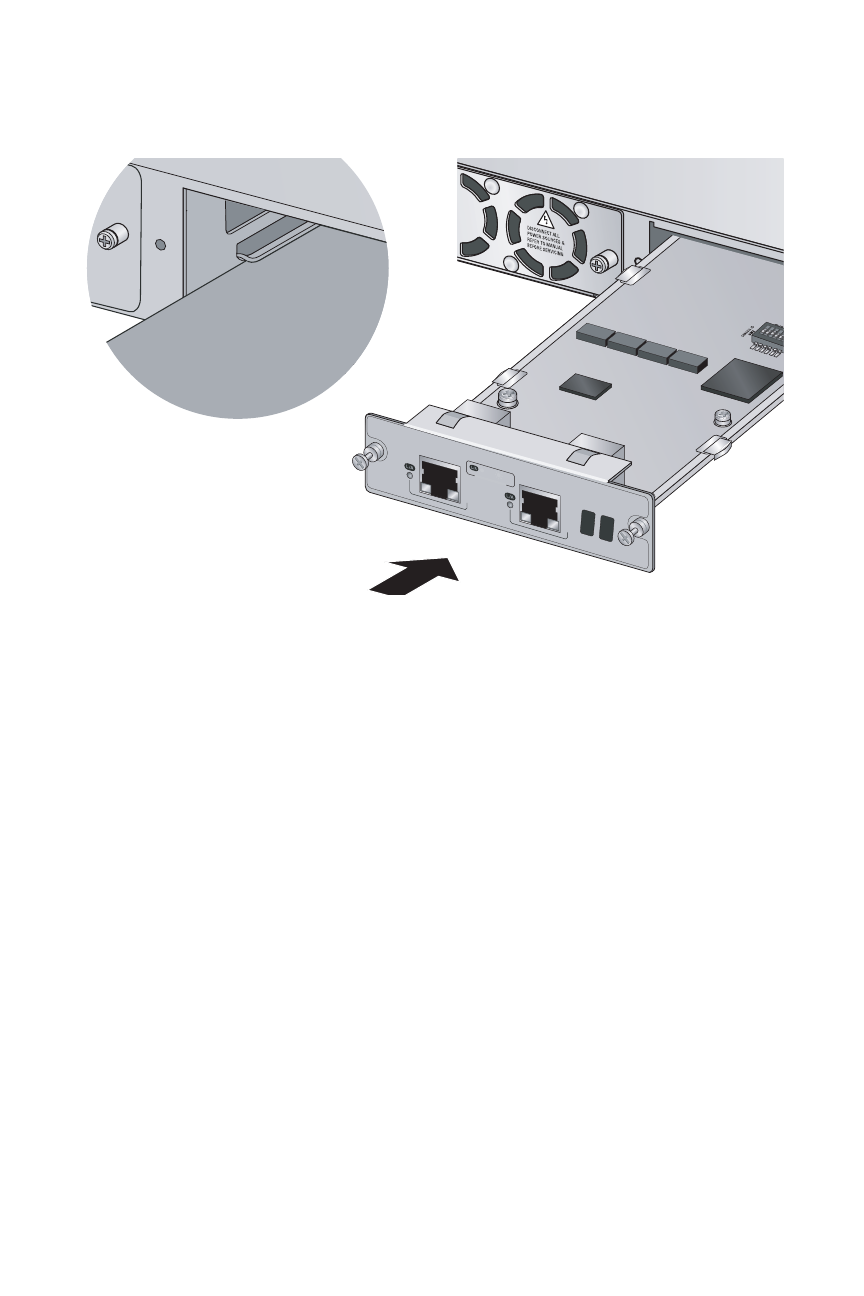

Figure 4. Installing the AT-MCF2000S Stacking Module
6. Secure the module to the chassis by the tightening the two
captive screws with a cross-head screwdriver. See Figure 5
on page 22.
1258
AT-MCF2000S
STACK 1
LINK
ACT PORT ACTIV ITY STACK 2
CHAS
SIS ID
