Chapter 1: Installation
20

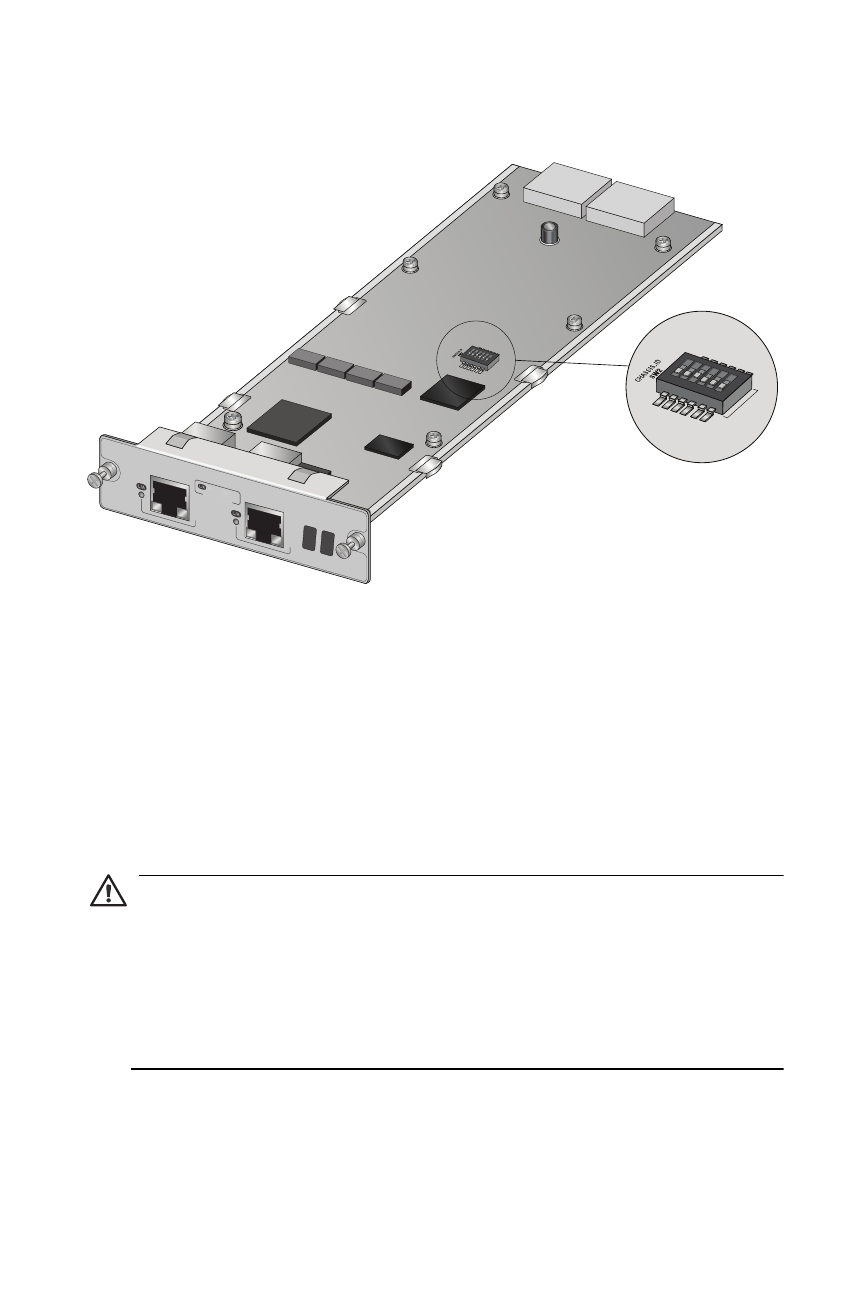

Figure 3. Changing the DIP switch
5. Align the edges of the module with the guides in the slot and
carefully slide the module into the chassis until it is flush with
the back panel of the chassis. See Figure 4 on page 21.
You may need to exert light pressure to seat the module on
the connector on the back panel of the chassis.
Caution
Do not force the module into place. Doing so may damage
the connector pins on the backplane inside the chassis. If
there is resistance, remove the module and reinsert it after
verifying that the edges of the card are properly aligned in the
guides.
