Chapter 1: Installation
18
To install the AT-MCF2000S Stacking Module, perform the
following procedure:
1. Remove the module from the shipping package.
Note
Store the packaging material in a safe location. You must use
the original shipping material if you need to return the unit to
Allied Telesis.
2. Remove the blank panel from the management slot on the
chassis by loosening the two captive screws on the panel
with a cross-head screwdriver. See Figure 2.
Refer to the chassis’ Installation Guide for the location of the
management slot.

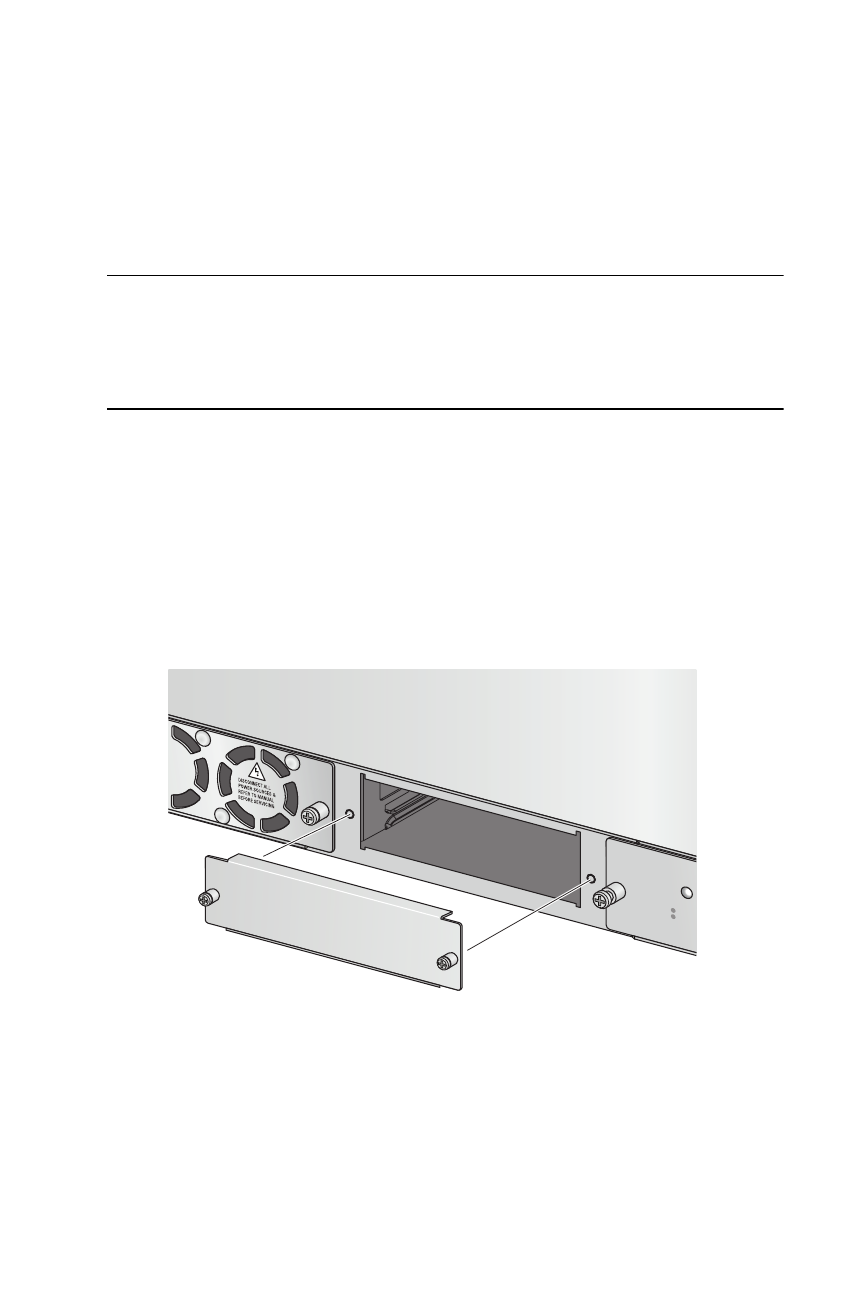

Figure 2. Removing the Blank Panel
AT-MCF2KF
AN
NORM
AL FAULT
STATU
S
AT-MCF2KPNL3
