Chapter 1: Installation
14
Overview
The AT-MCF2000S Module is a stacking module for the
AT-MCF2000 Media Converter Series. See Figure 1.

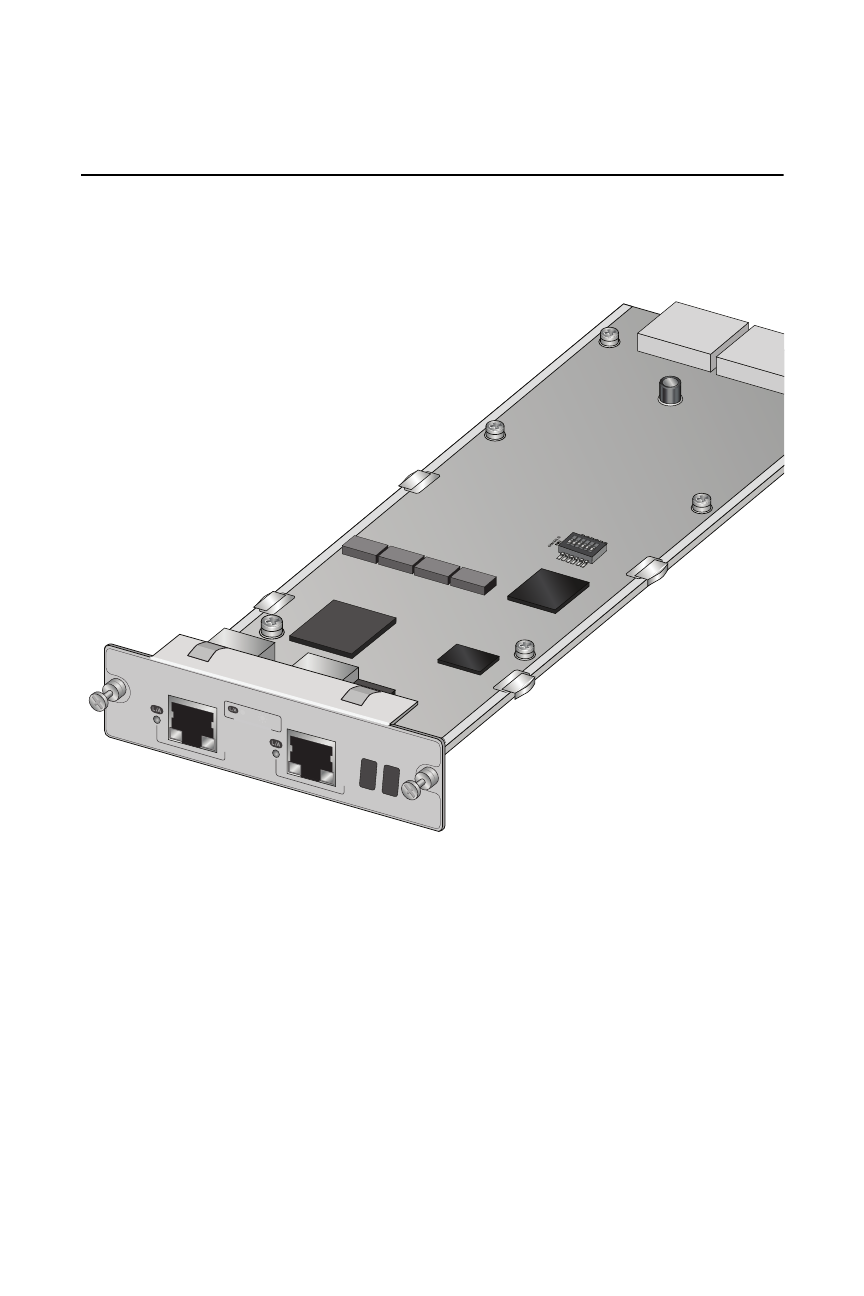

Figure 1. AT-MCF2000S Stacking Module
Features
The stacking module contains the following features:
ˆ There are two RJ-45 Fast Ethernet connections on the front of
the module. The port on the left is labeled STACK 1 and the
port on the right is labeled STACK 2. Each port has an LED
that displays link activity. For more information about the
LEDs, see “AT-MCF2000S Stacking Module LED” on page 27.
AT-MCF2000S
STACK 1
LINK
ACT POR T ACTIV
ITY STACK 2
CHASSIS
ID
