AT-S87 Management Software User’s Guide
45
Setting Up the Host Table
When you assign a host IP address to a community string, you identify
which management workstations can access the string. A community
string can have up to eight IP addresses of management workstations
(hosts) assigned to it.
To set up the host table, perform the following procedure:
1. From the main menu, select SNMP > Host Table.
The Host Table page is shown in Figure 12.

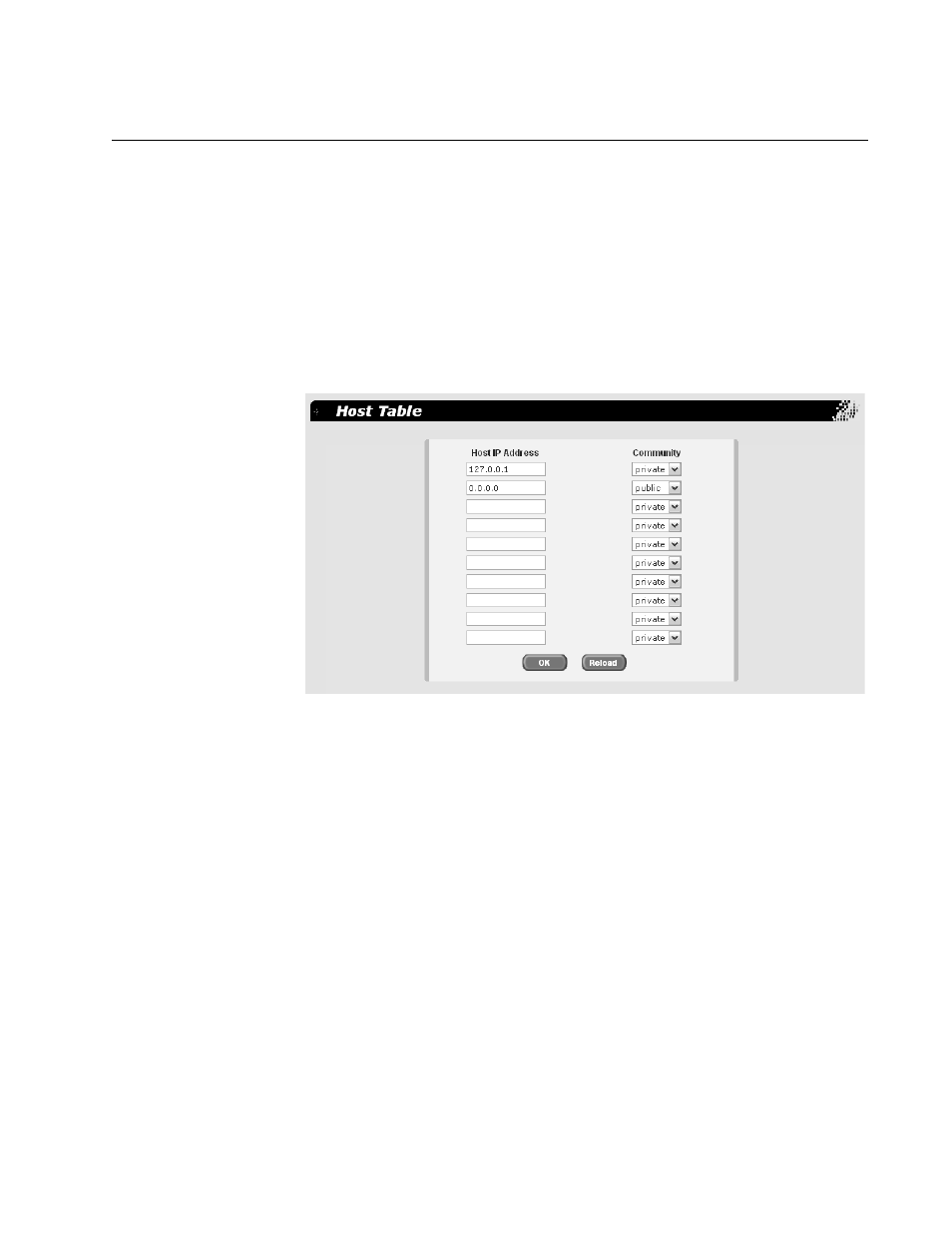

Figure 12. (SNMP) Host Table Page
2. In the Host IP Address field, enter the IP address of a management
workstation
3. In the Community list, select the name of the SNMP community that
the host can access.
Continue to assign host addresses to the community strings you
configured.
4. Do one of the following:
ˆ Click OK to save the SNMP hosts.
ˆ Click Reload to clear the fields and start over.
5. To permanently save these settings in the configuration file, from the
main menu, select Save Configuration.
The Save Configuration page is shown in Figure 3 on page 21.
