AT-WNP300N IEEE802.11b/g/n 1T2R Wireless Fast PCI adapter User Manual 29

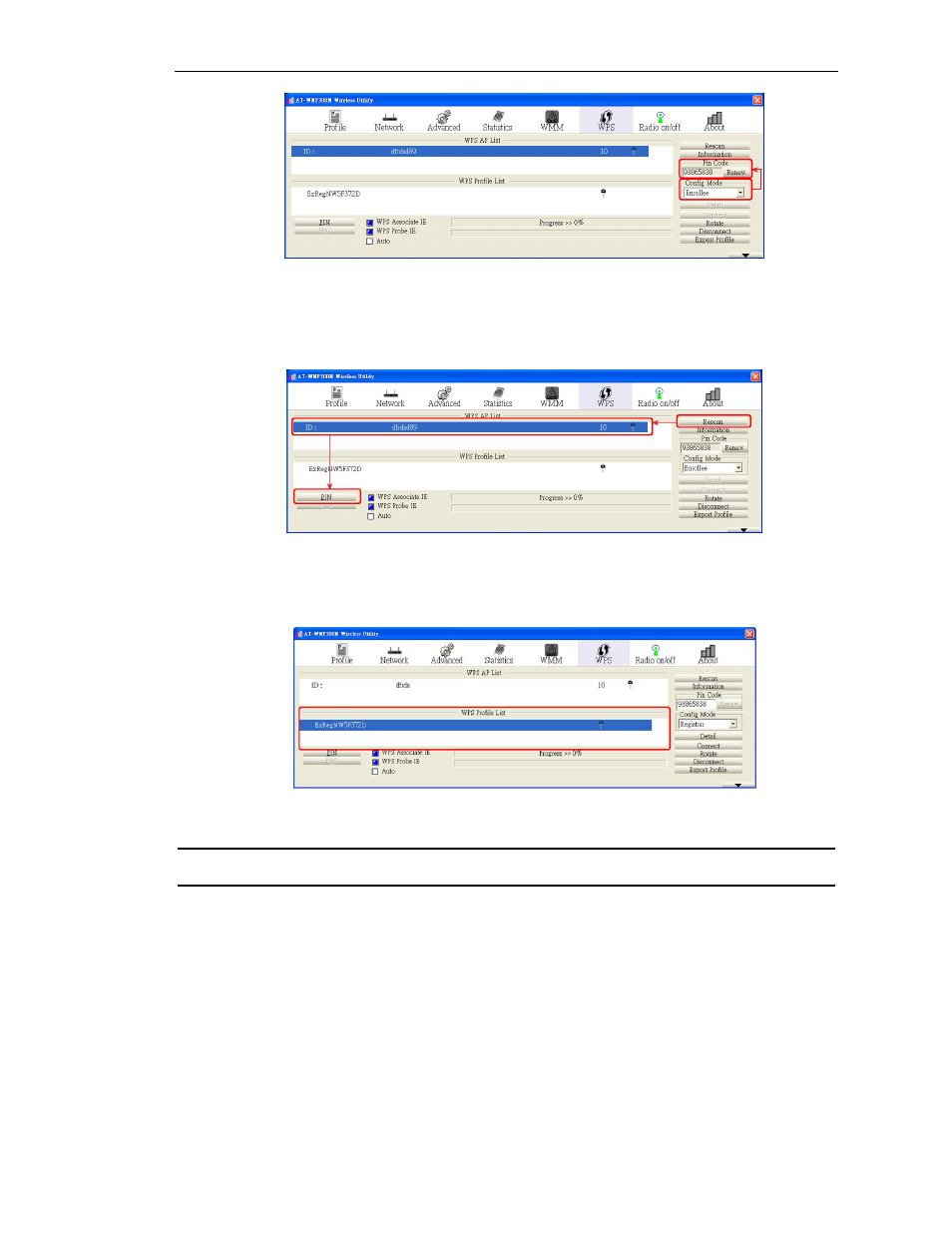

Figure 45: Enrolee Mode
2. In wireless AP utility, input the PIN code and then run WPS.
3. Go back to AT-WNP300N Wireless Utility. In WPS tab, click on “Rescan” to get the WPS signal from
wireless AP.
Figure 46: Click on PIN
4. Select the wireless AP from WPS AP List, and then click on “PIN” to implement the connection.
As the connection successes, the network is shown in the WPS Profile list.
Figure 47: WPS Successfully
Note: After running WPS on wireless AP, you need to push “PIN” button on wireless adapter
in 120 seconds. Otherwise you need to perform the procedure from step 1.
Connect to a Regular Network
You can connect to a saved profile to save time. Please perform the following procedure to connect to a
regular network.
