28 AT-WNP300N - IEEE802.11b/g/n 1T2R Wireless Fast PCI adapter - User Manual
Note: After pushing PBC in wireless AP utility, you need to push “PBC” button on wireless
adapter in 120 seconds. Otherwise you need to perform the procedure from step 1.
Enter Wireless AP PIN code
1. In wireless AP utility, select generate PIN code and record the 8-character code. Then click on run
WPS.
2.
In AT-WNP300N Wireless Utility, go to “WPS”. Switch the Config Mode to “Registrar”. Then input
the 8-character PIN code.

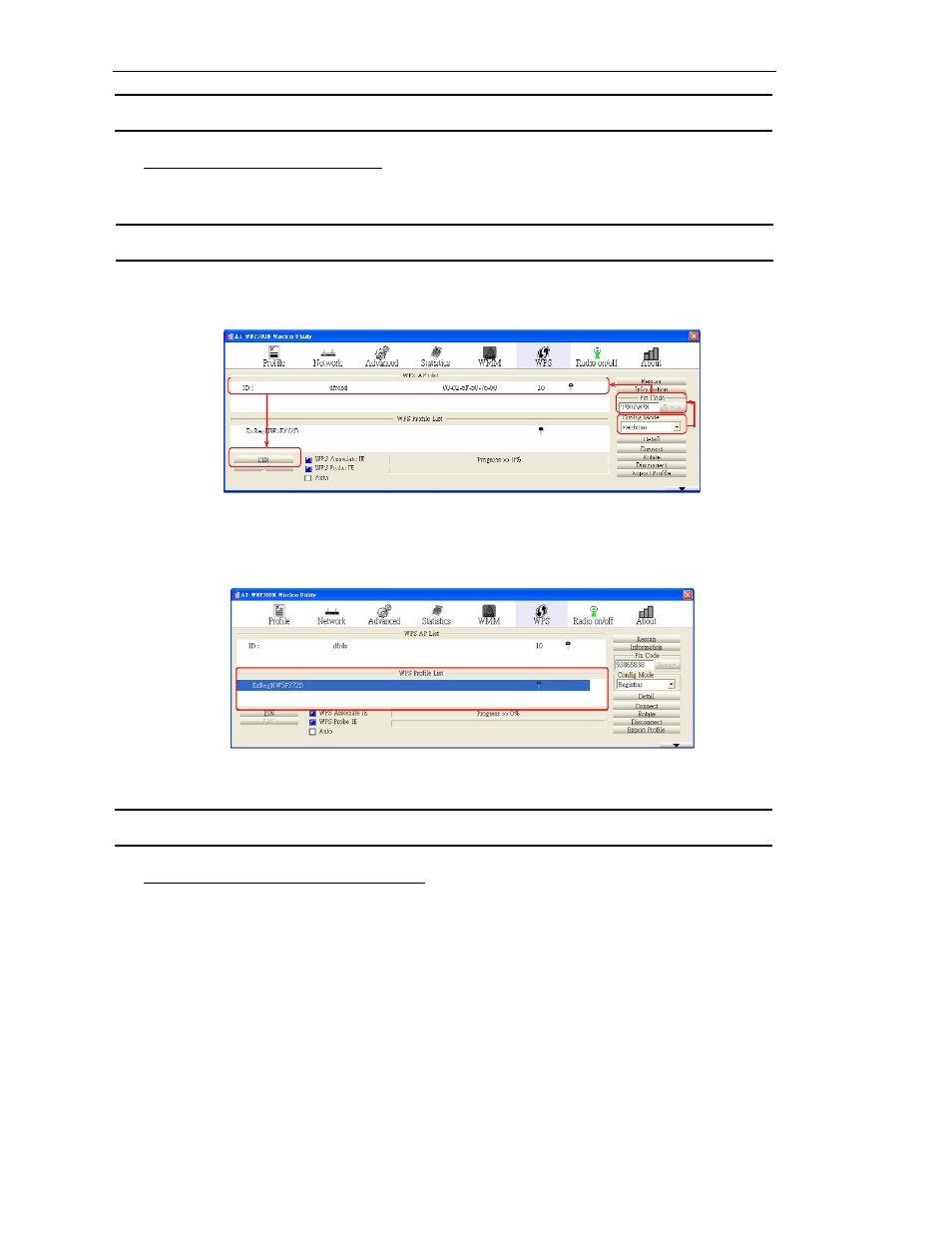

Figure 43: PIN Code
3. Click on “PIN” to connect to the wireless AP.
As the connection successes, the network is shown in the WPS Profile list.
Figure 44: WPS Successfully
Note: After running WPS on wireless AP, you need to push “PIN” button on wireless adapter
in 120 seconds. Otherwise you need to perform the procedure from step 1.
Enter Wireless Adapter PIN code
1. In AT-WNP300N Wireless Utility, go to “WPS”. Switch the Config Mode to “Enrollee”. Then record
the 8-character PIN code. You can press “Renew” to get a new PIN code.
Note: The interface and terminology of wireless AP might be dissimilar in different models.
Please refer to their manuals for the configuration.
