AT-WNP300N IEEE802.11b/g/n 1T2R Wireless Fast PCI adapter User Manual

21

Connect to an Un-secured Network

Please perform the following procedure to connect to an un-secured network.

1.

Go to “Network”, select the AP you want to connect to, and then click on “Add to Profile”.

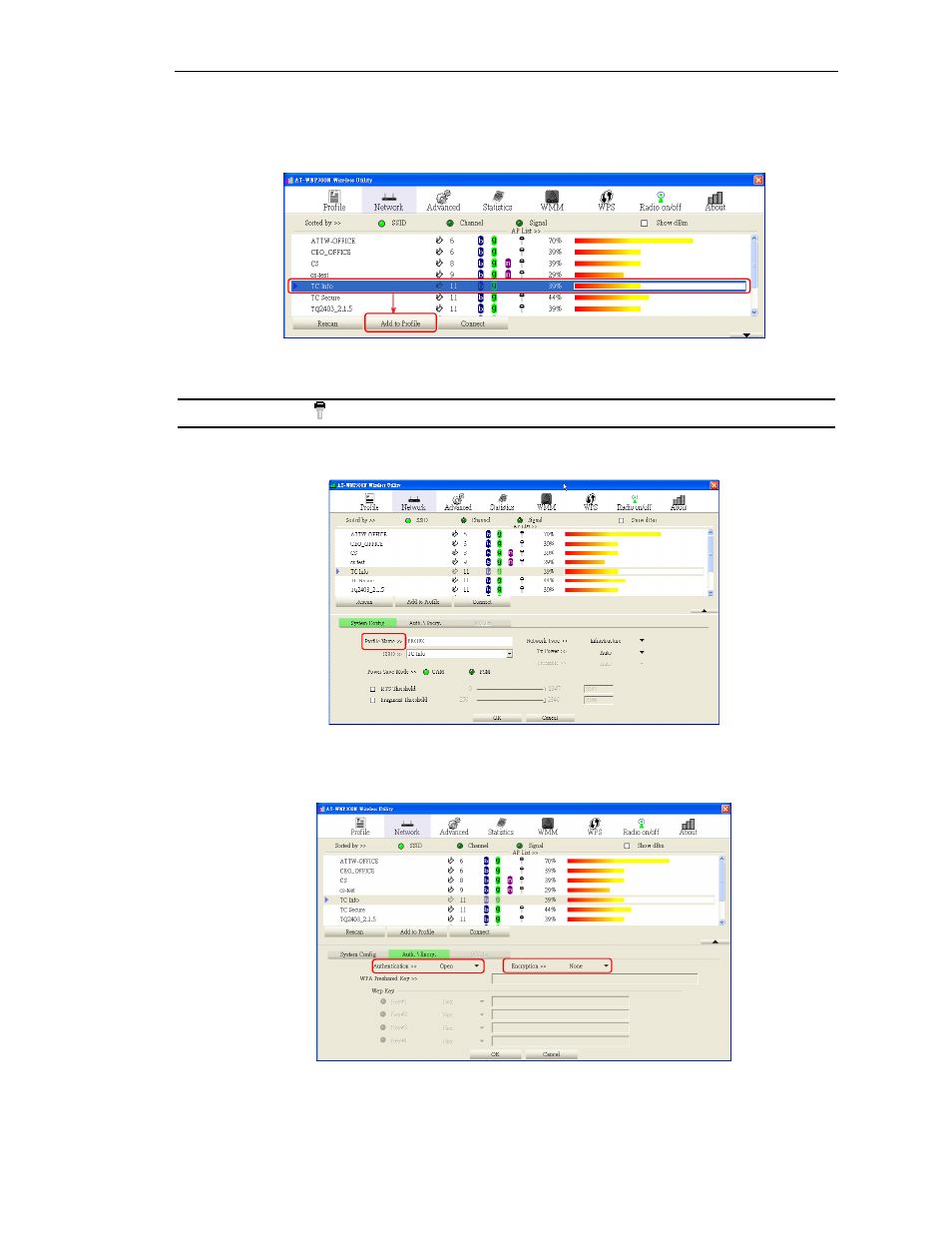

Figure 18: Select a Network

Note:

icon in the AP List means it is a secured network.

2.

In “System Config” tab, input a Profile Name to identify.

Figure 19: Configure Profile

3.

In “Auth.\Encry.” Tab, confirm that the Authentication is “Open” and the Encryption is “None”.

Figure 20: Configure Auth./Encry.
