AT-WNP300N IEEE802.11b/g/n 1T2R Wireless Fast PCI adapter User Manual 27
3. Select the wireless AP from WPS AP List, and then click on “PBC” to implement the connection.
As the connection successes, the network is shown in the WPS Profile list.

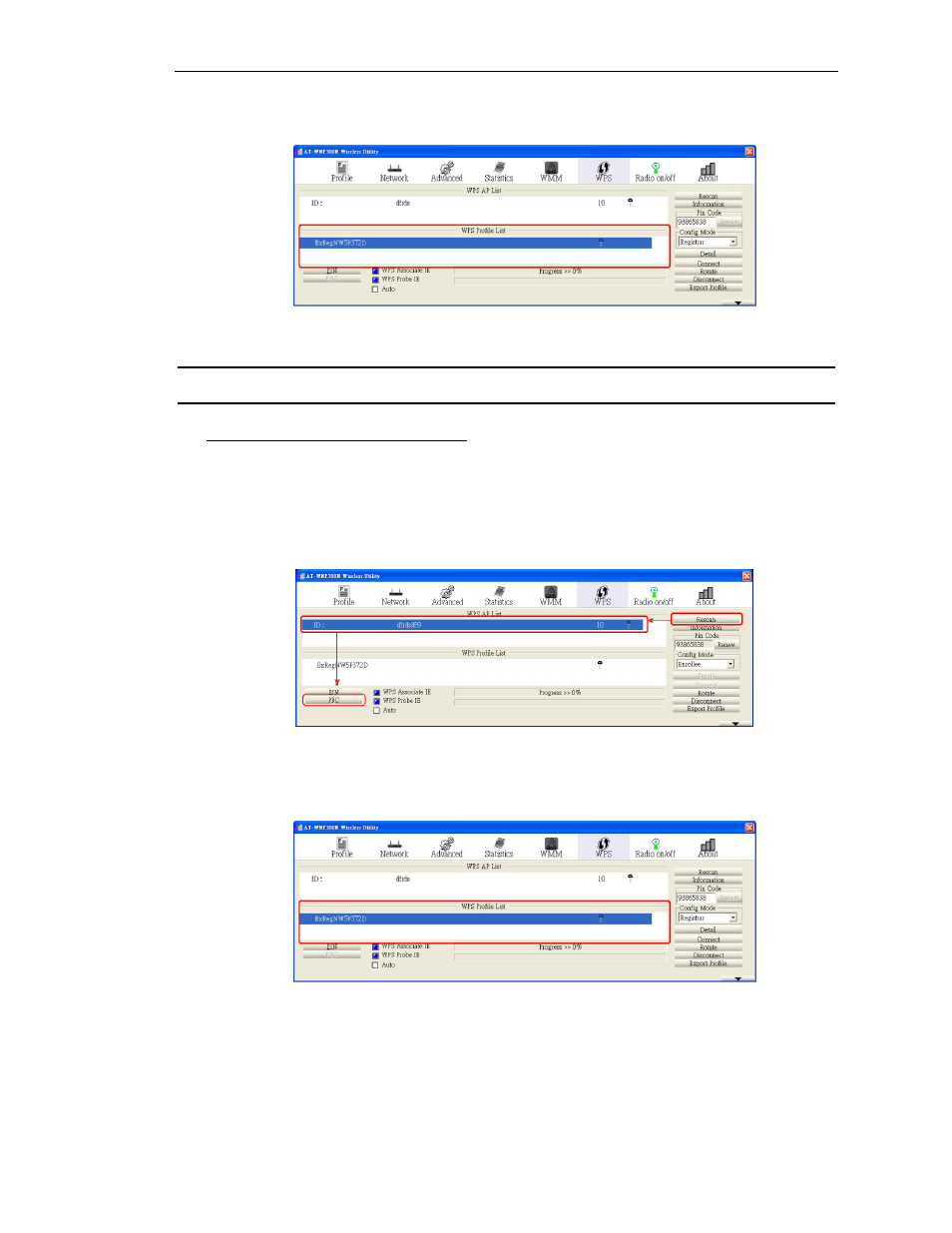

Figure 40: WPS Successfully
Note: After pushing WPS button on the wireless AP, you need to click on “PBC” button in 120
seconds. Otherwise you need to perform the procedure from step 1.
Push Button Connection (PBC)
If the wireless AP does not provide hardware WPS button, you need to apply WPS in the utility. The
interface and terminology might be dissimilar in different models. Please refer to their manuals for the
configuration.
1. In wireless AP utility, push PBC button to generate WPS signal.
2. In AT-WNP300N Wireless Utility, go to “WPS”. Click on “Rescan” to get the WPS signal from the
wireless AP.
Figure 41: Push Button Connection
3. Select the wireless AP from WPS AP List, and then click on “PBC” to implement the connection.
As the connection successes, the network is shown in the WPS Profile list.
Figure 42: WPS Successfully
