18 AT-WNP300N - IEEE802.11b/g/n 1T2R Wireless Fast PCI adapter - User Manual

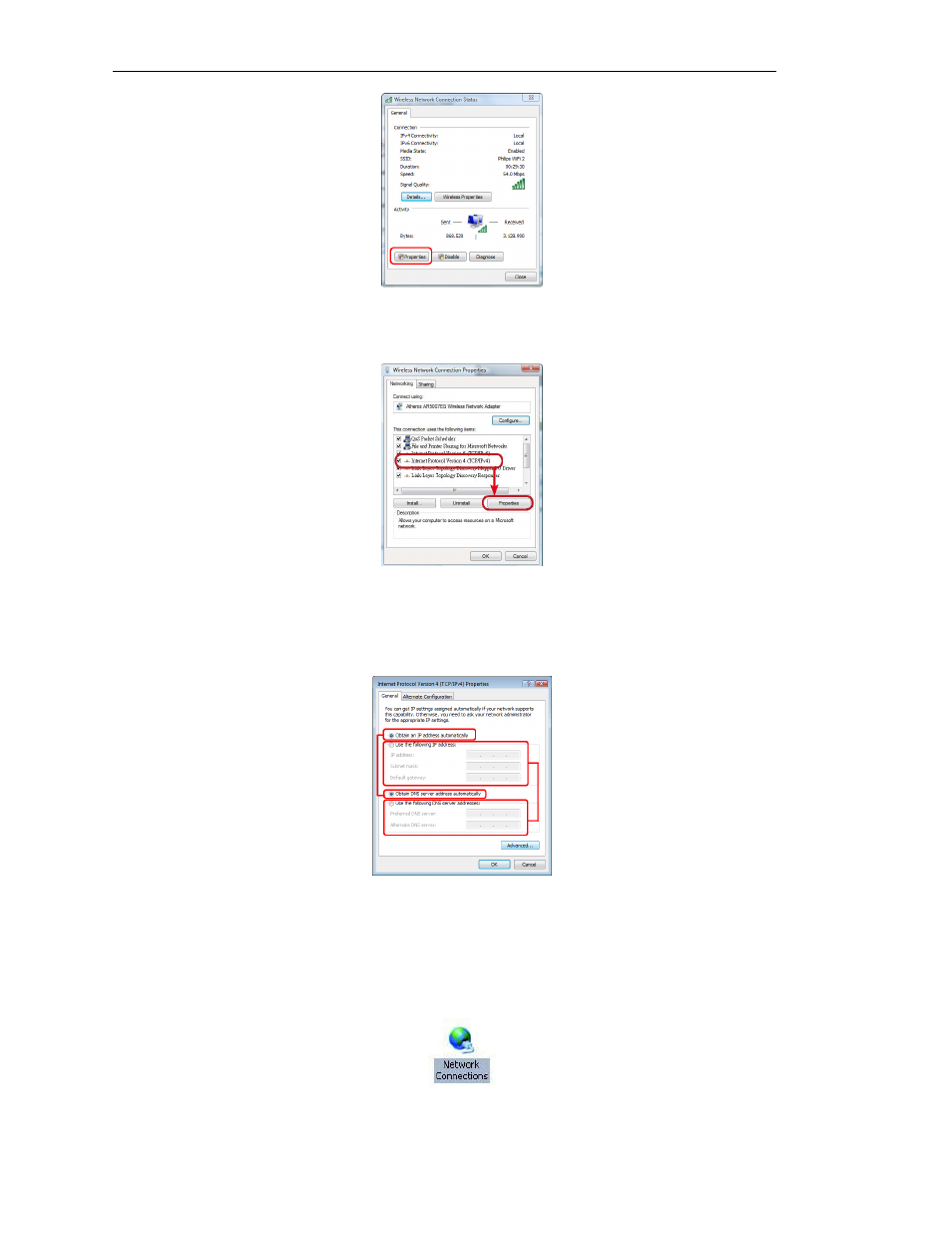

Figure 11: Wireless Connection Status
4. In “Networking” tab, select “Internet Protocol version 4 (TCP/IPv4)” and then click on “Properties”.’
Figure 12: Internet Protocol version 4 (TCP/IP)
5. In “General” tab, if the AP you use provides DHCP server, you are suggested to select both “Obtain
an IP address automatically” and “Obtain DNS server address automatically”. Otherwise, please
configure your IP address to obtain a specific IP address.
Figure 13: Internet Protocol Version 4 (TCP/IPv4) Properties
1. In “Control Panel”, double click on “Network Connections” to open it.
2. Right click on “Wireless Connection” and select “Properties”.
