26 AT-WNP300N - IEEE802.11b/g/n 1T2R Wireless Fast PCI adapter - User Manual
4. In “Profile” tab, select the profile you want to connect to, and then click on “Activate”.

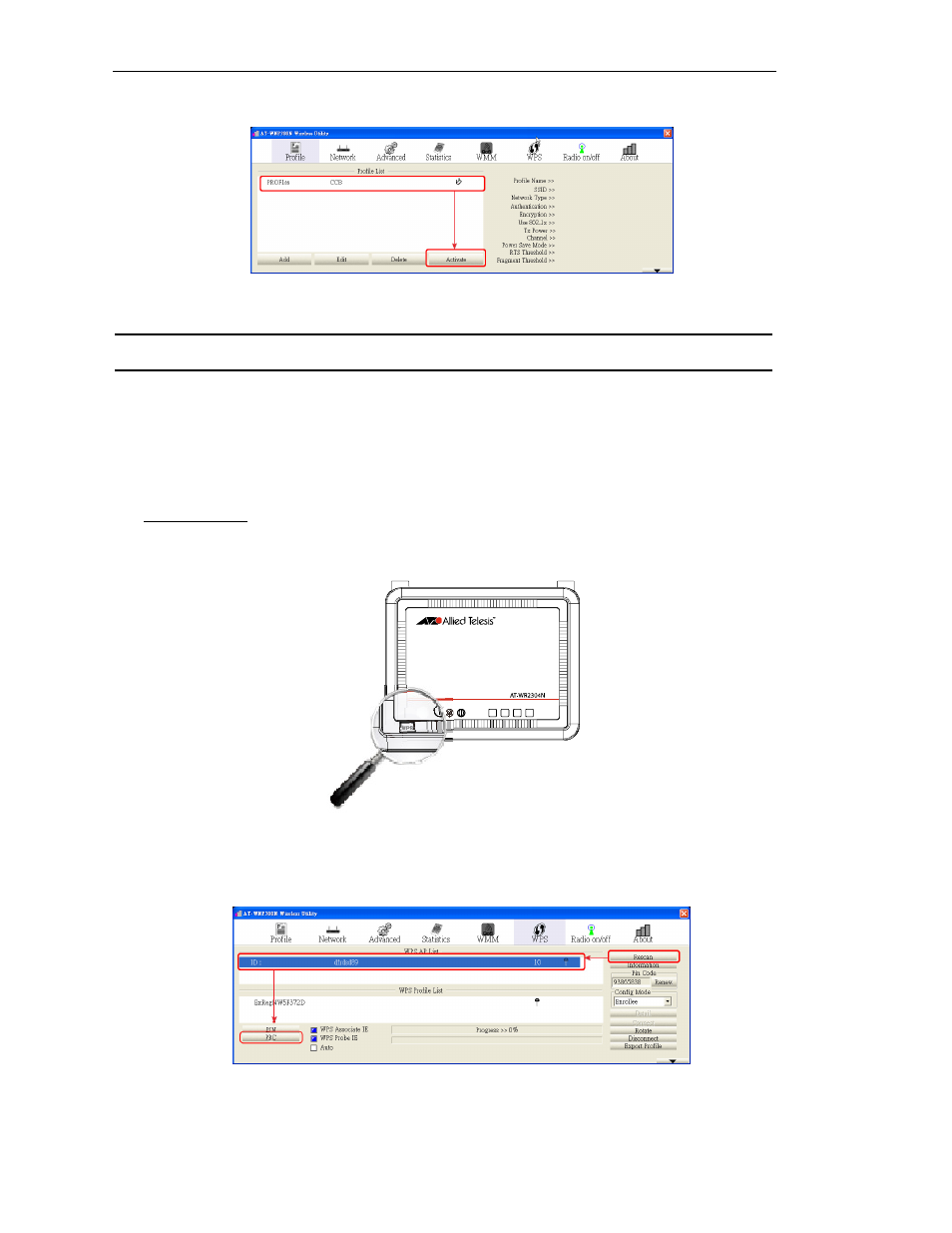

Figure 37: Active a Non-broadcasting Network
Note: The SSID and encryption settings must be exactly the same with the wireless AP,
otherwise it will result in a failure.
Wireless Protected Setup (WPS)
Wireless Protected Setup (WPS) provides an easy way to connect to a wireless network. To apply WPS, the
wireless AP should be compatible with WPS standard. There are several ways to implement WPS
connection. Please perform one of the following procedures.
WPS Button
1. Push WPS button on the wireless AP to generate WPS signal.
1 2 3 4
Figure 38: WPS Button on Wireless Router
2. In AT-WNP300N Wireless Utility, go to “WPS”. Click on “Rescan” to get the WPS signal from
wireless AP.
Figure 39: Push Button Connection
