AT-2716POE Fast Ethernet Fiber & PoE Adapter Installation and User’s Guide
15

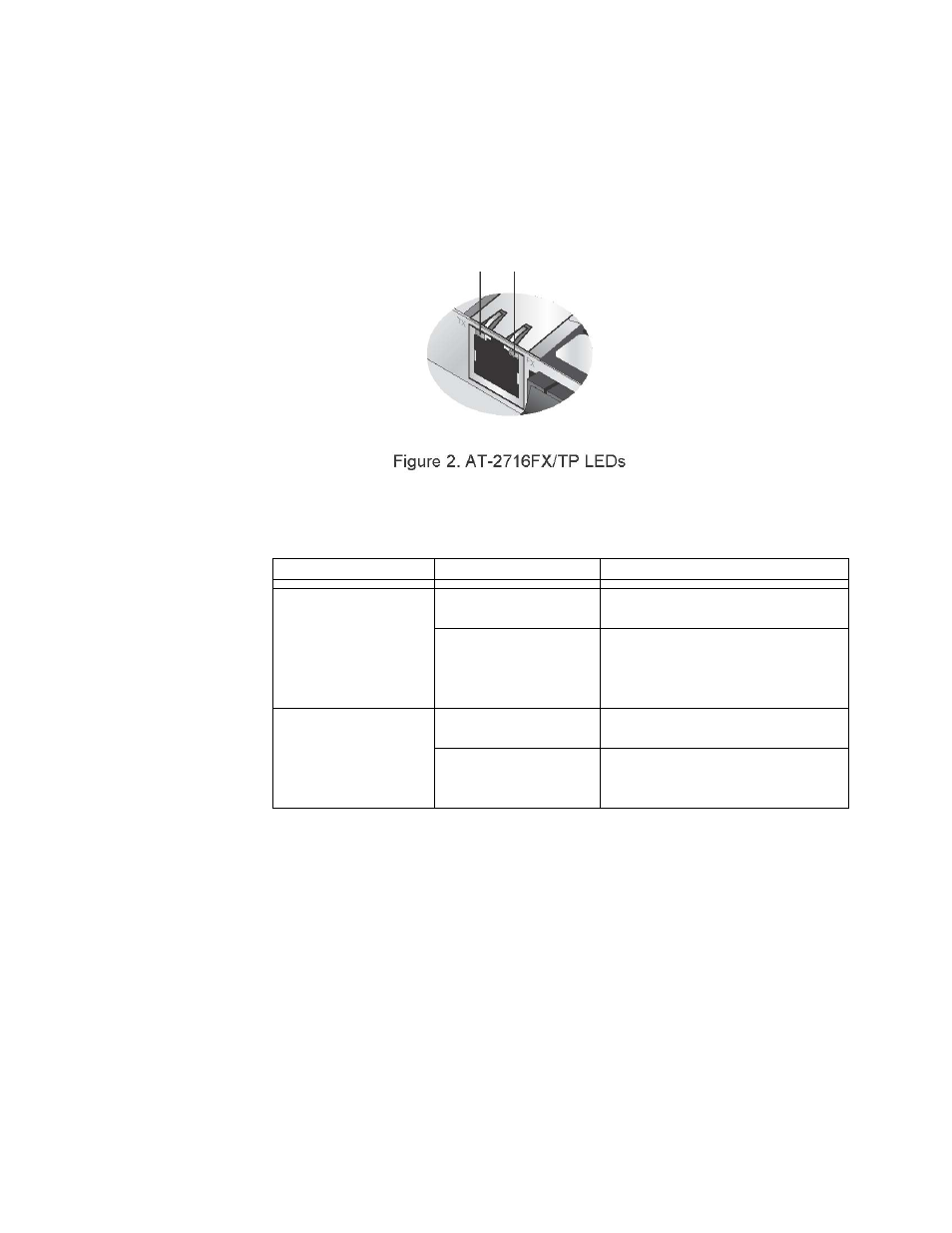

LEDs The AT-2716POE adapter has two LEDs located on the copper port. See
Figure 2. The left LED, labeled TX, indicates the link and activity status of
the 1 Gigabit copper port that has PoE capabilities. The right LED, labeled
FX, indicates the link and activity status of the 100FX fiber port. For a
description of the LEDs, see Table 1.
Table 1. TX and FX LEDs
LED State Description
TX Green Indicates a valid link on the
copper port.
Blinking Green Indicates data traffic is
present between the adapter’s
copper port and its link
partner.
FX Green Indicates a valid link on the
fiber port.
Blinking Green Indicates data traffic is
present between the adapter’s
fiber port and its link partner.
