Chapter 5: Powering On the Switch
70
Powering On the Switch
To power on the switch, connect the power cords to the connectors on the
back panels and to the appropriate power sources. All the models have
two power supplies with separate connectors.

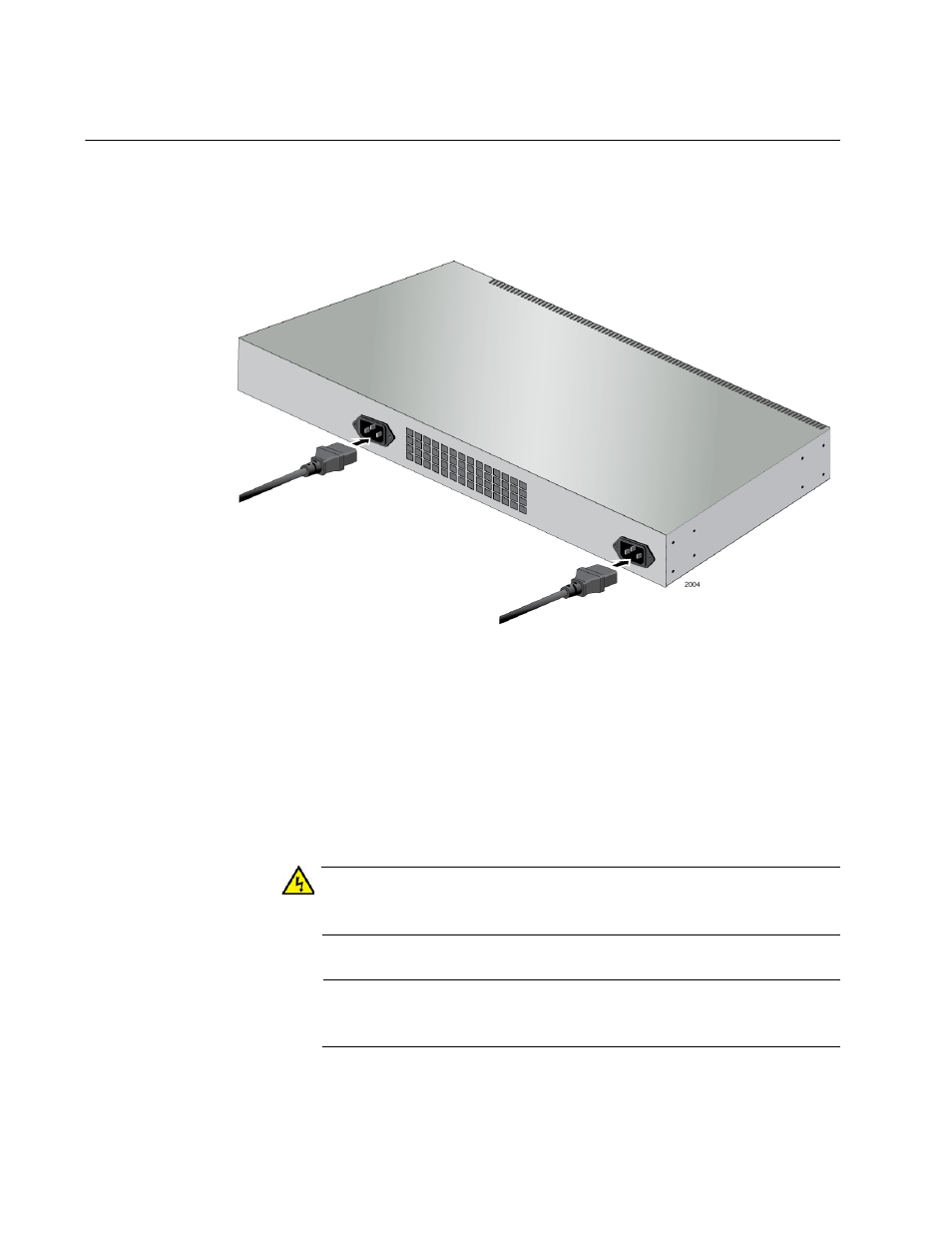

Figure 29. Plugging in the AC Power Cord
Consider the following items as you power on the switch:
Connecting the two power cords to power sources that are on
different circuits will provide power redundancy to the switch in the
event a circuit fails.
Refer to “Power Specifications” on page 86 for the power
specifications of the switches.
Warning
Power cord is used as a disconnection device. To de-energize
equipment, disconnect the power cord. E3
Note
Pluggable Equipment. The socket outlet shall be installed near the
equipment and shall be easily accessible. E5
