Allied Telesis x510 Series User Manual
Page 67
x510 Series Installation Guide for Stand-alone Switches
67

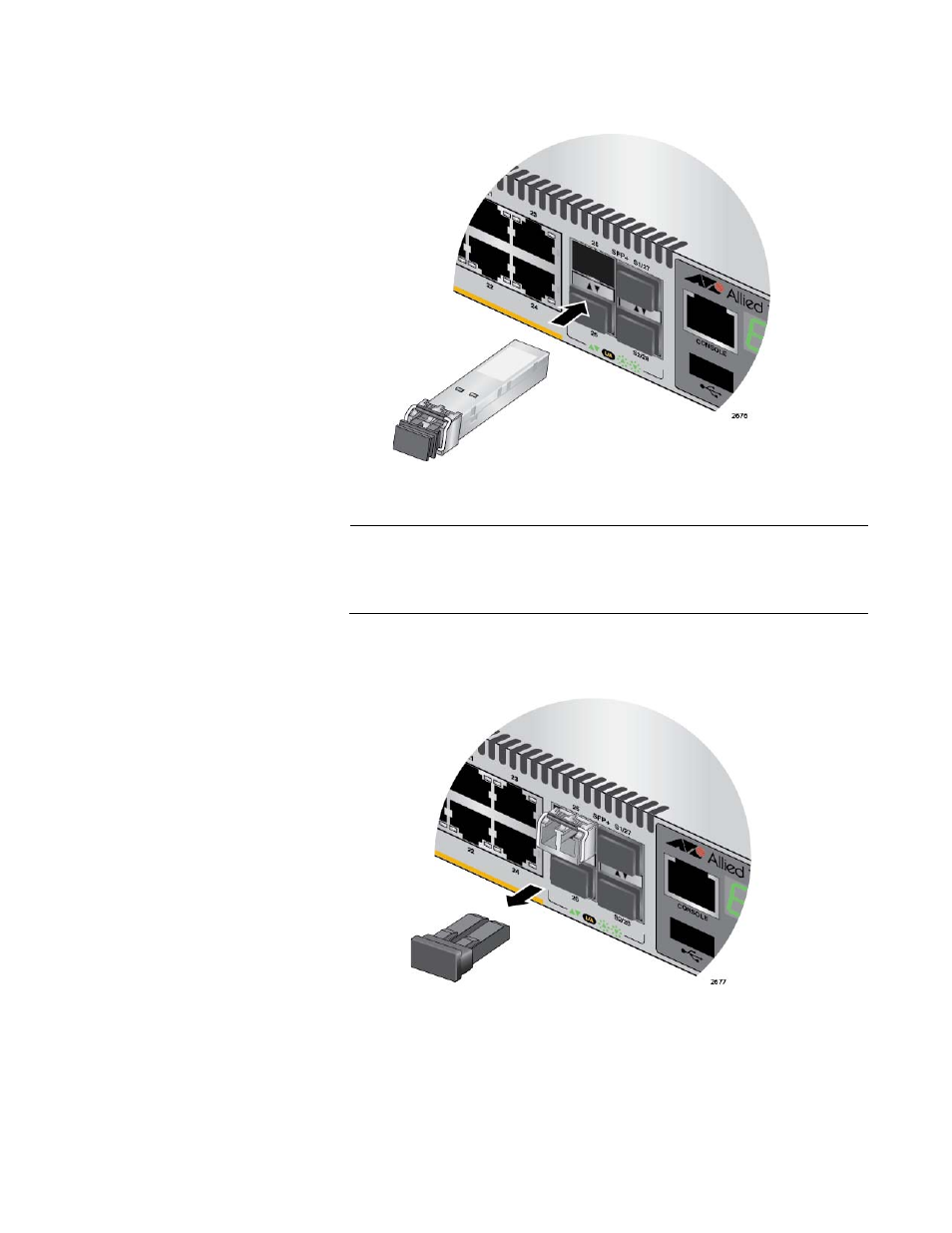

Figure 25. Installing an SFP or SFP+ Transceiver
Note
If you are ready to attach the fiber optic cable to the transceiver,
continue with the next step. Otherwise, repeat steps 1 to 4 to install
the remaining SFP or SFP+ transceivers in the switch.
5. Remove the dust cover from the transceiver, as shown in Figure 26.
Figure 26. Removing the Dust Cover from an SFP or SFP+ Transceiver
