Figure 16: attaching the equipment rack brackets – Allied Telesis x510 Series User Manual
Page 56
Chapter 3: Installing the Switch on a Table or in an Equipment Rack
56
3. Turn the switch over.
4. Attach the two rack mount brackets to the sides of the switch using the
eight bracket screws included with the unit. Figure 16 and Figure 17 on
page 57 illustrate the four possible bracket positions.

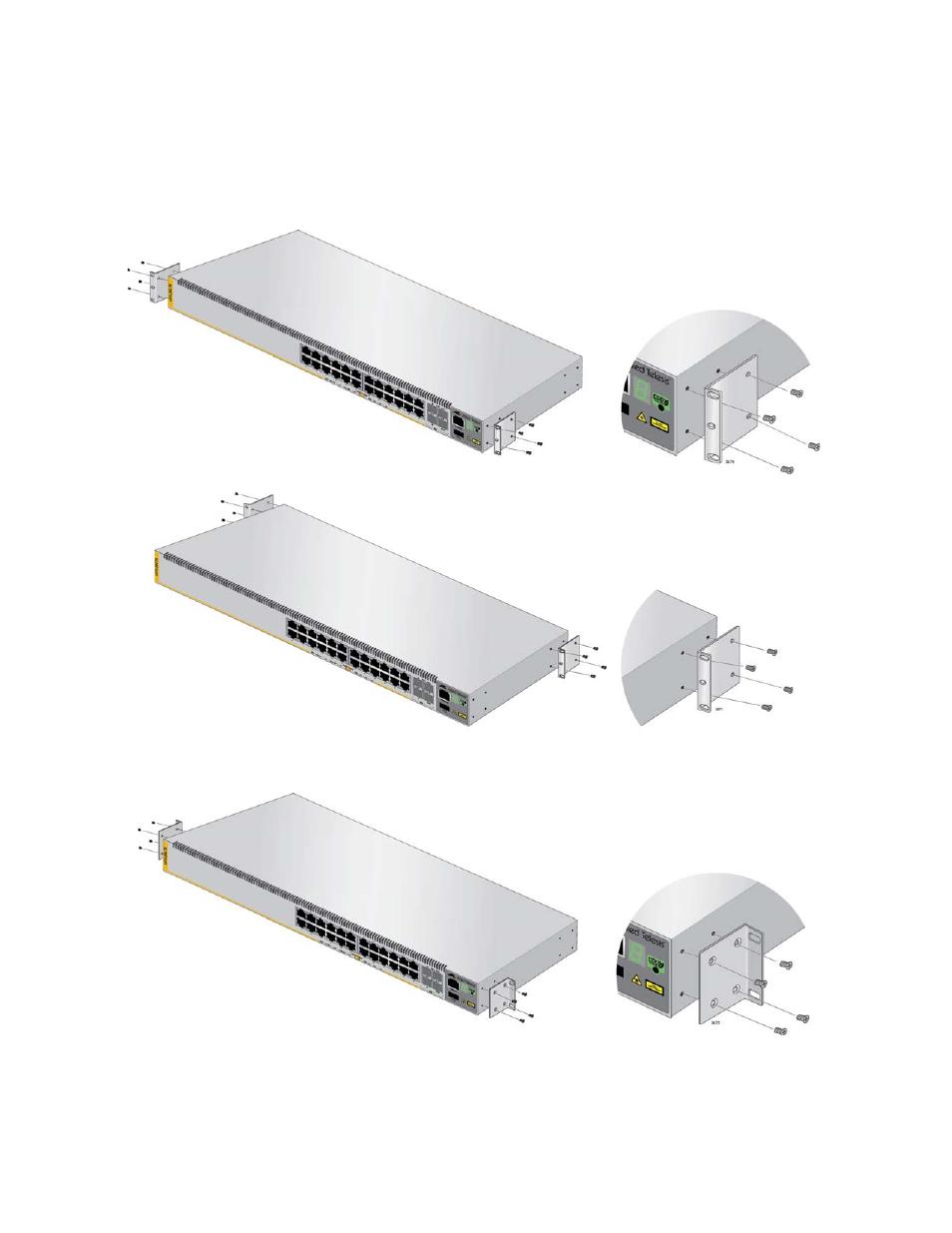

Figure 16. Attaching the Equipment Rack Brackets
