Allied Telesis x510 Series User Manual
Page 57
x510 Series Installation Guide for Stand-alone Switches
57

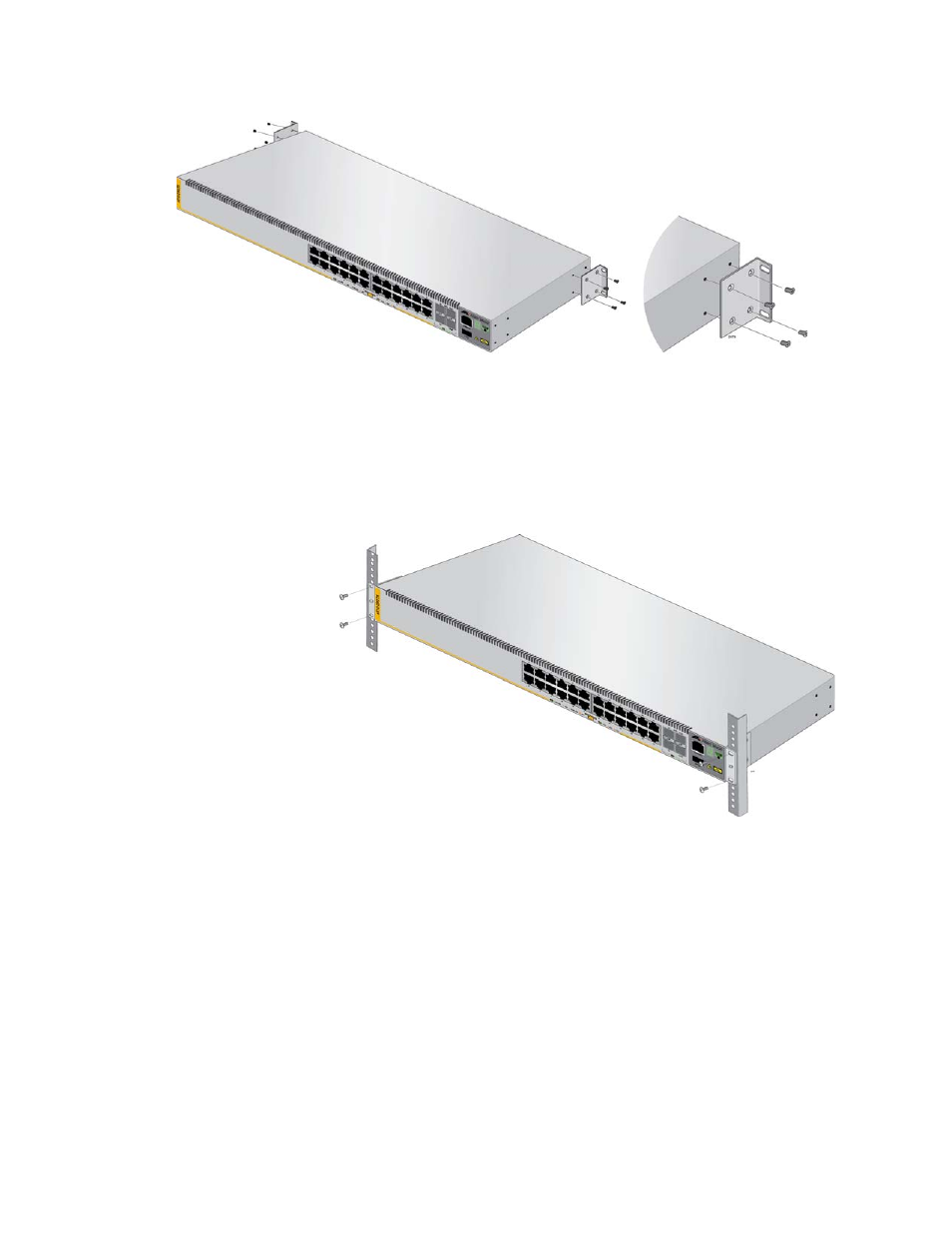

Figure 17. Attaching the Equipment Rack Brackets (Continued)
5. While another person holds the switch in the equipment rack, secure it
using standard equipment rack screws (not provided), as shown in
Figure 18.
Figure 18. Mounting the Switch in an Equipment Rack
Go to Chapter 4, “Cabling the Networking Ports” on page 59, to connect
the network cables to the ports on the switch.
