Chapter 4: Cabling the Networking Ports
64

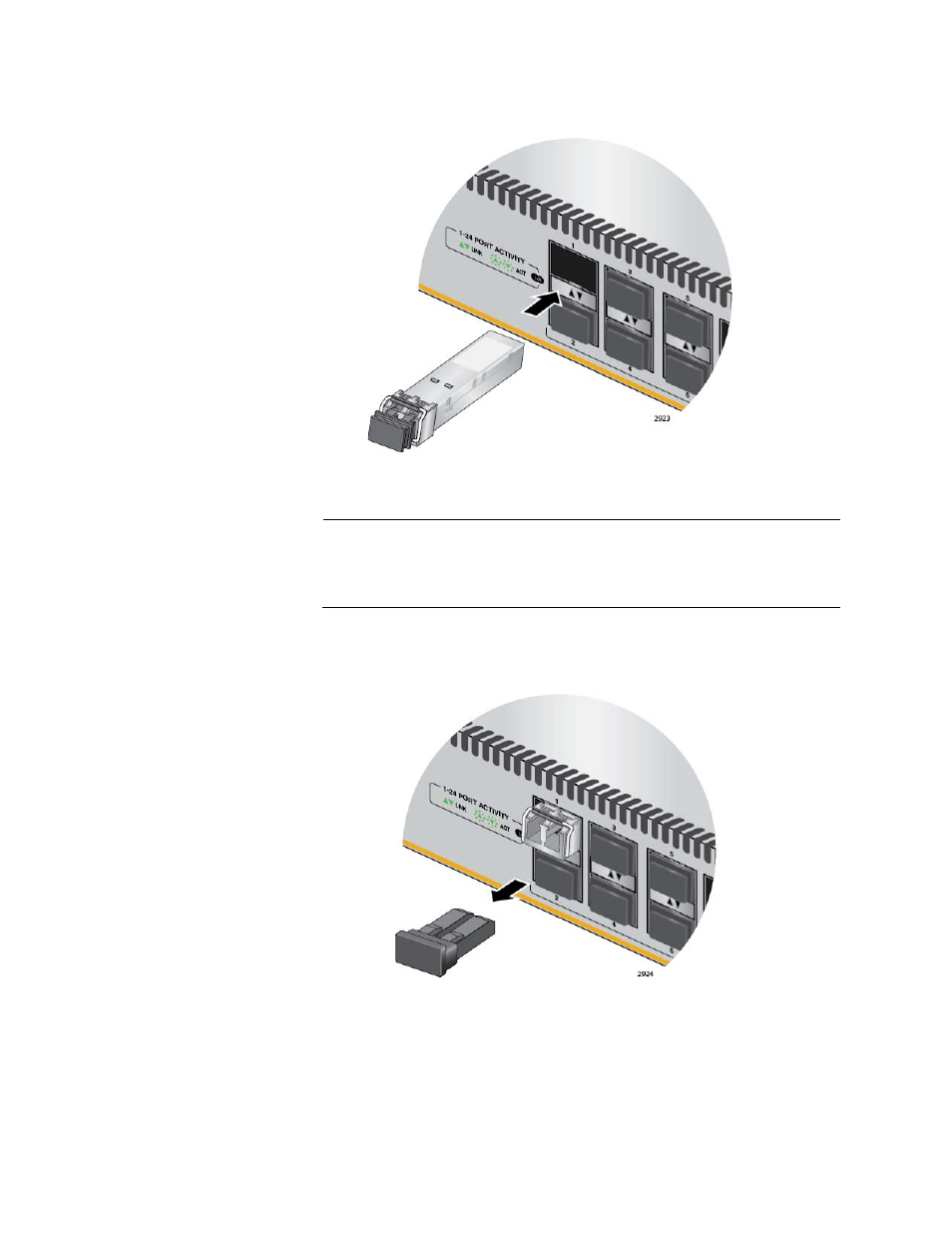

Figure 20. Installing an SFP Transceiver
Note
If you are ready to attach the fiber optic cable to the transceiver,
continue with the next step. Otherwise, repeat steps 1 to 4 to install
the remaining SFP transceivers in the switch.
5. Remove the dust cover from the transceiver, as shown in Figure 21.
Figure 21. Removing the Dust Cover from an SFP Transceiver
6. Verify the position of the handle on the SFP transceiver. If the
transceiver is in a top slot, the handle should be in the upright position,
as shown in Figure 22 on page 65. If the transceiver is in a bottom slot,
the handle should be in the down position.
