78 Installation Guide APC Silcon 10-40kW 400V UPS
990-4050
Options/Accessories

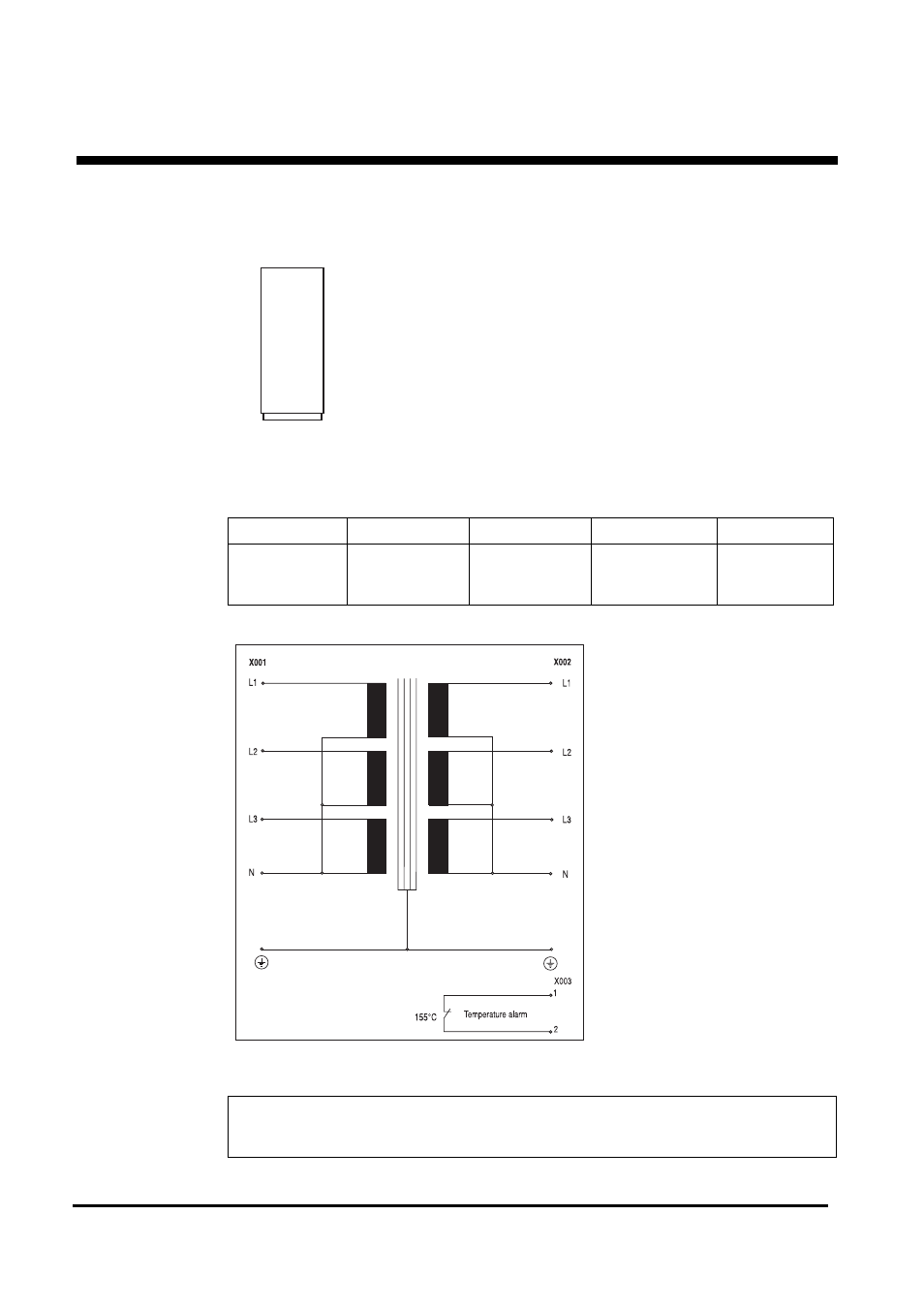

6.7 Isolation Transformer
UPS Height [mm] Width [mm] Depth [mm] Weight [kg]
10 kW
20 kW
40 kW 1400
1400
1400 600
600
600 800
800
800 185
245
405
NOTICE!
APC isolation transformers are available in various configuration. Contact your local APC
representative for further information. See “How to Contact APC” in this guide.
600 mm wide
APC Isolation
Transformer module
10-80kW
600 mm wide
1400mm
PE PE
Example of Transformer Configuration (Yyno)
