External connection – APC SILCON 10-40KW 400V UPS User Manual
Page 42
42
Installation Guide APC Silcon 10-40kW 400V UPS
990-4050
External Connection

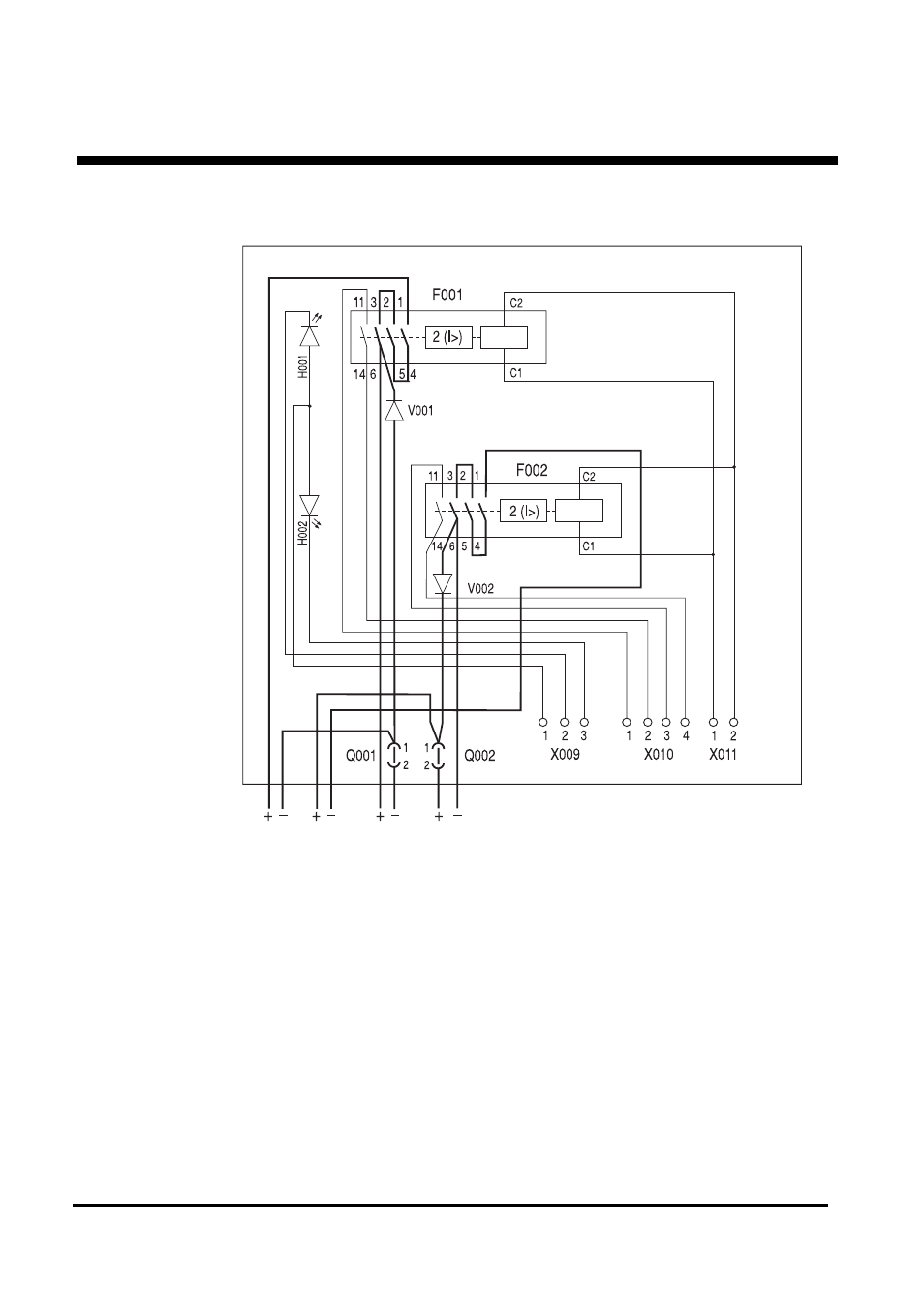

4.8.2 Battery Breaker Box Connection Diagram
X009 LED signal from UPS “OK to operate corresponding MCCB”
X010 MCCB position signals for UPS
X011 Trip for emergency stop (220-240V AC)
Battery 1
Battery 2
Battery 1
Battery 2
UPS
UPS
Main cables are connected directly
to component terminals
