Installation – APC SILCON 10-40KW 400V UPS User Manual
Page 10
10
Installation Guide APC Silcon 10-40kW 400V UPS
990-4050
Installation
3.2

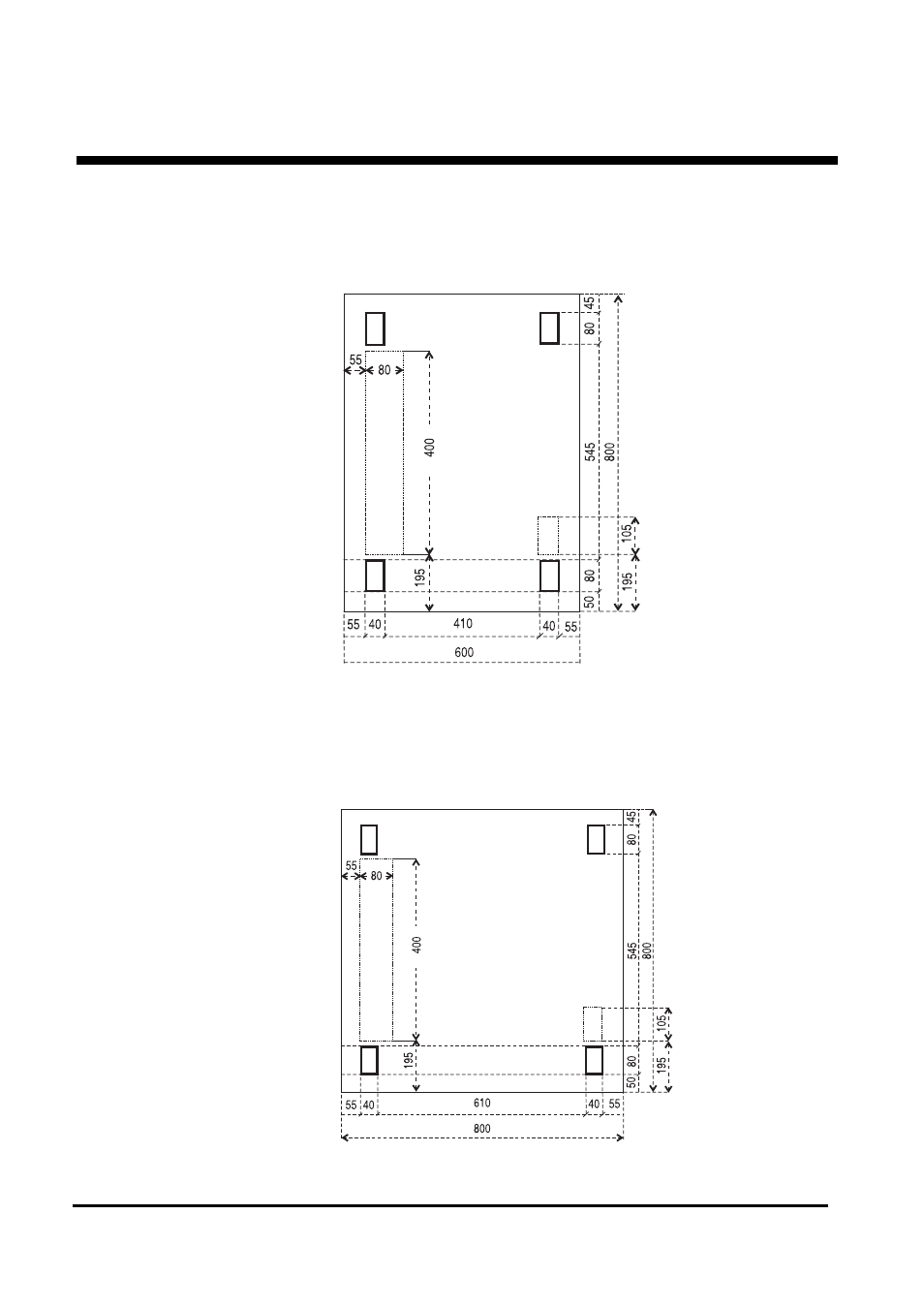

Footprint
3.2.1 600mm UPS Cabinet with 1xBP I or Isolation Transformer
3.2.2 800mm UPS Cabinet with 1xBP I or Built-in Isolation Transformer, or 2xBP I
Rear
Front
Power cable entry
Com. cable
entry
Rear
Front
Power cable entry
Com. cable
entry
