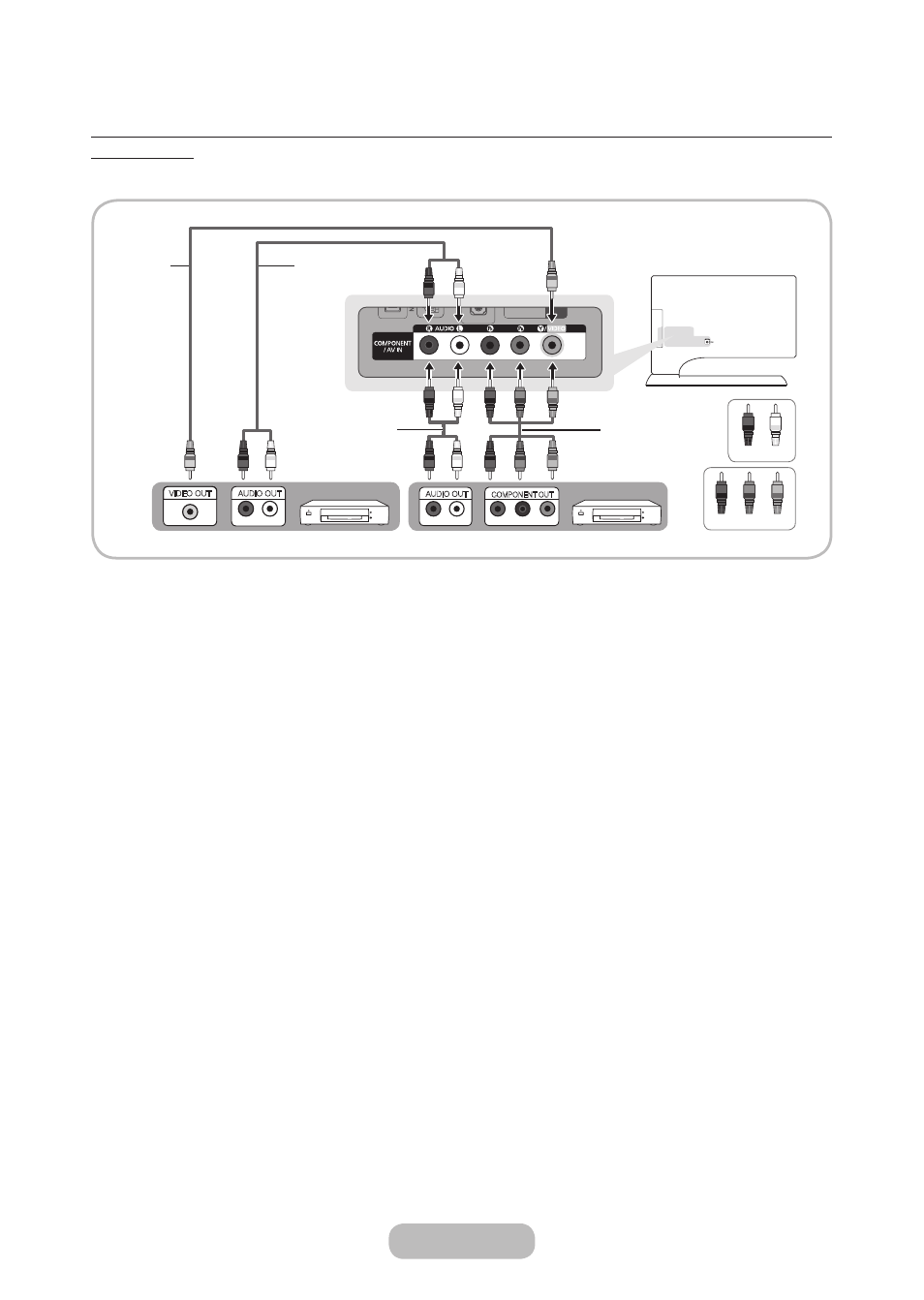

Using a Component Cable (up to 1080p HD signals) or an Audio/Video Cable (480i analog
signals only)
Use with DVD players, Blu-ray players, cable boxes, STB satellite receivers, VCRs.
R G B
R W
R W R G B
R W R B G
Y
R W
R W Y
P R P B Y
COMPONENT OUT AUDIO OUT
R-AUDIO-L
AUDIO OUT
R-AUDIO-L
VIDEO OUT
Device Device
Audio Cable
(Not Supplied)
Component Cable
(Not Supplied)
Red
Red
Blue
White
Green
Audio Cable
(Not Supplied)
Video Cable
(Not Supplied)
✎ For better picture quality, we recommend the Component connection over the A/V connection.
✎ When you connect a Video cable to COMPONENT / AV IN, the color of the COMPONENT / AV IN [VIDEO] jack
(green) will not match the video cable (yellow).
