CONNECTIONS

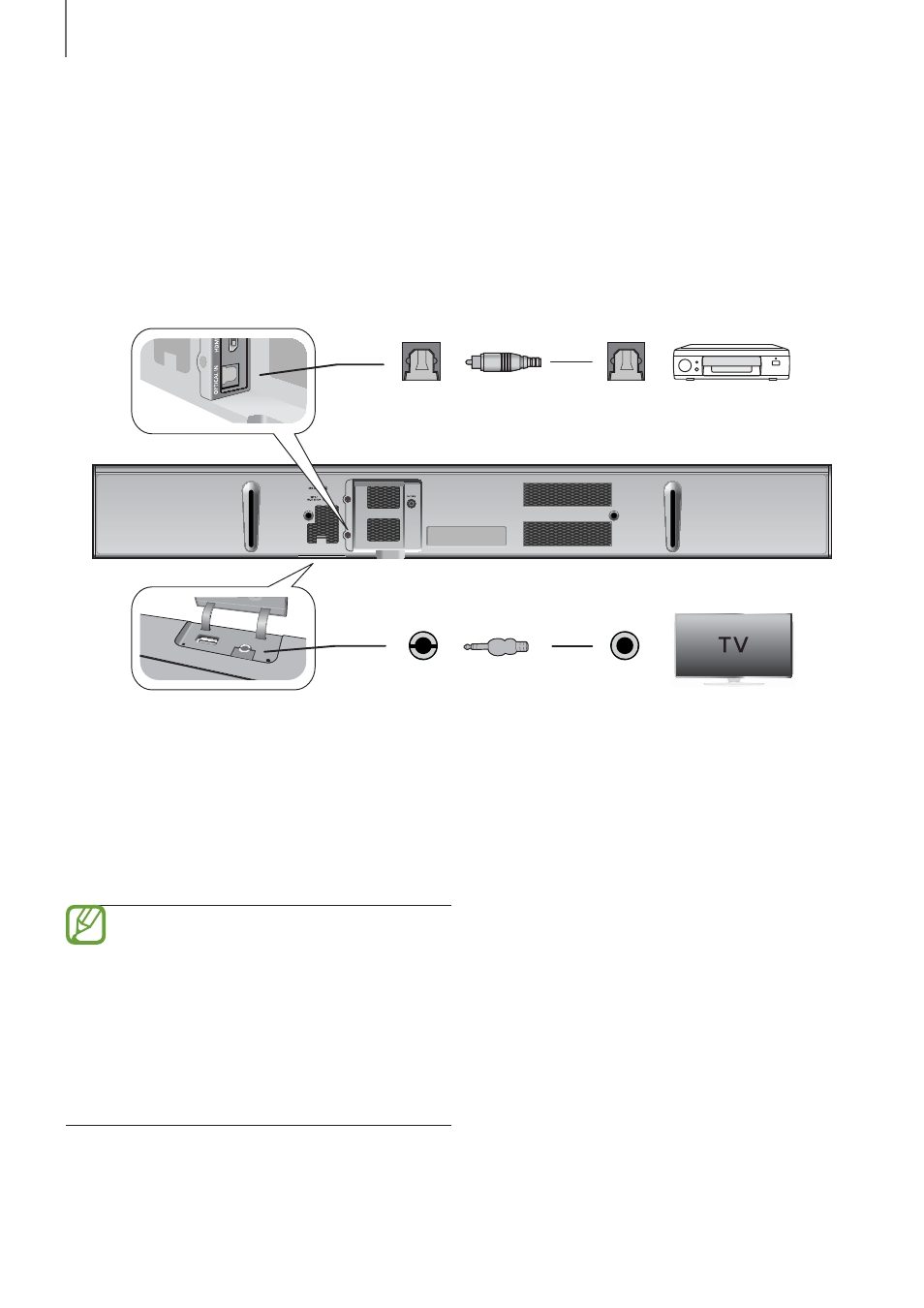

CONNECTING AN EXTERNAL DEVICE USING OPTICAL
(DIGITAL) CABLE OR AUDIO (ANALOG) CABLE
This unit comes equipped with one optical in digital jack and one audio analog in jack,
giving you two ways to connect it to a TV.
AUX IN
AUDIO
OUT
OPTICAL IN
OPTICAL
OUT
Audio Cable
Optical Cable
(not supplied) BD/ DVD player/
Set-top box/ Game
console
OPTICAL IN
Connect the OPTICAL IN on the main unit
to the OPTICAL OUT jack of the TV or
Source Device.
● Do not connect the power cord of
this product or your TV to the wall
outlet until all connections between
components are complete.
● Before moving or installing this
product, be sure to turn off the
power and disconnect the power
cord.
or,
AUX IN
Connect AUX IN (Audio) on the main unit to
the AUDIO OUT jack of the TV or Source
Device.
Be sure to match connector colors.
