CONNECTIONS

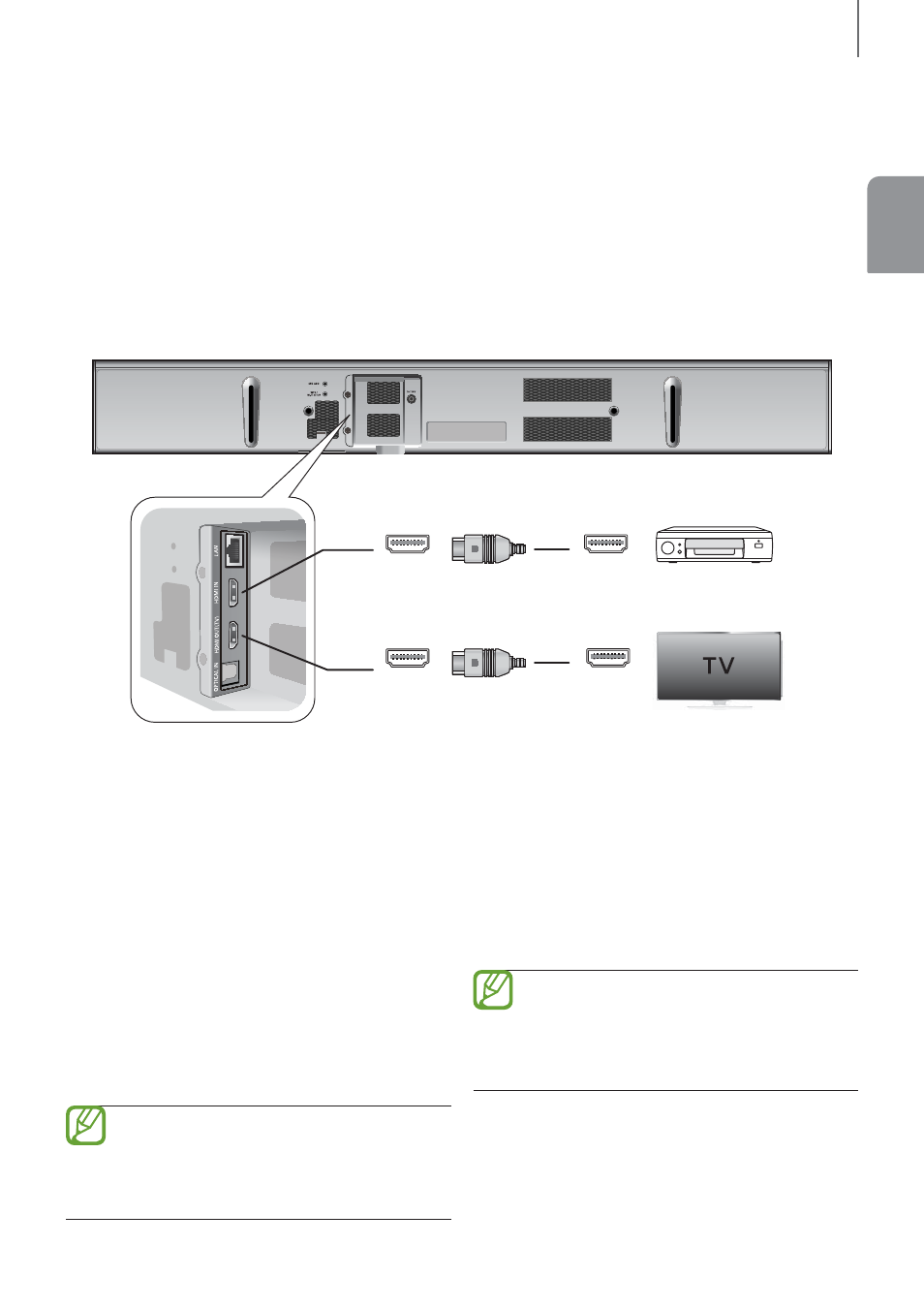

CONNECTING AN EXTERNAL DEVICE USING AN
HDMI CABLE
HDMI is the standard digital interface for connecting to such TVs, projectors, DVD players,
Blu-ray players, set top boxes, and more.
Because HDMI transmits the highest quality digital signal, you can enjoy superior video and
audio - as it was originally created at the digital source.
HDMI IN
HDMI OUT (TV)
HDMI OUT
HDMI IN
HDMI Cable
(not supplied)
HDMI Cable
(not supplied)
Digital Devices
HDMI IN
Connect an HDMI cable (not supplied) from
the HDMI IN jack on the back of the
product to the HDMI OUT jack on your
digital device.
and,
HDMI OUT (TV)
Connect an HDMI cable (not supplied) from
the HDMI OUT (TV) jack on the back of the
product to the HDMI IN jack on your TV.
● HDMI is an interface that enables
the digital transmission of video
and audio data with just a single
connector.
ARC (HDMI OUT)
The ARC function allows digital audio to
output via the HDMI OUT (ARC) port.
It can be enabled only when the Soundbar
is connected to a TV that supports the ARC
function.
● Anynet+ must be turned on.
● This function is not available if the
HDMI cable does not support
ARC.
