AXIS 240Q - Product Description

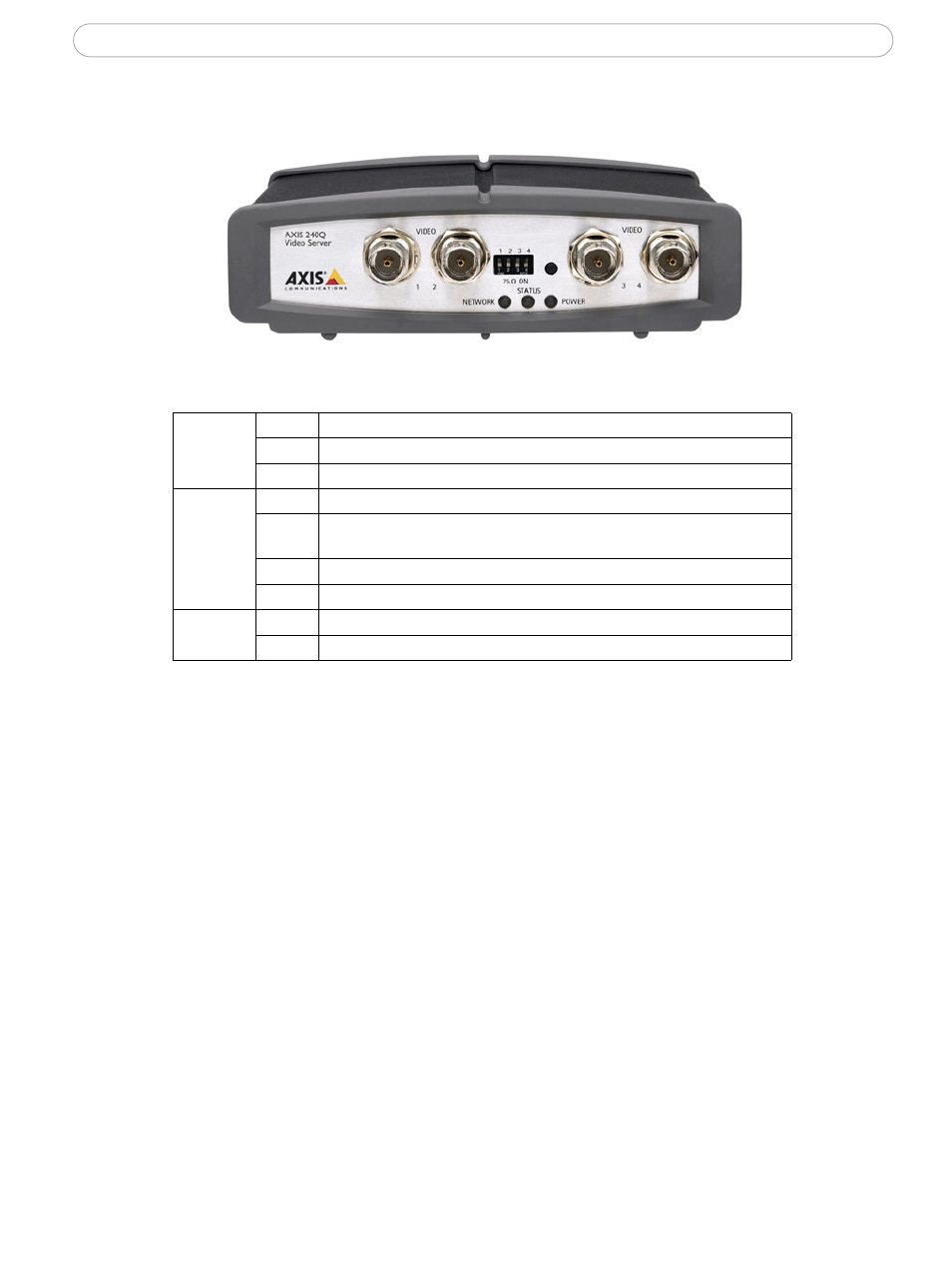

AXIS 240Q Front Panel
Indicators - After completion of the startup and self-test routines, the multi-colored
Network, Status, Power Indicators flash as follows:
Unlit
No connection.
Green
Steady for connection to a 100 Mbit/s network. Flashes for network activity.
Amber
Steady for connection to a 10 Mbit/s network. Flashes for network activity.
Unlit
When configured for “no flash” on camera access.
Green
Steady for normal operation. Can be configured to flash green at intervals
whenever the camera is accessed. See the online help for more information.
Amber
Steady during startup, reset to factory default or when restoring settings.
Red
Slow flash for failed upgrade.
Green
Normal operation.
Amber
Flashes green/amber during firmware upgrade.
DIP Switches - A corresponding line termination switch for each of the supported video
inputs. All units are shipped with the line termination enabled for each video input; that is,
with the DIP switches set in the down position.
Note:
If the AXIS 240Q is to be connected in parallel with other equipment, disable the input termination by
turning the corresponding DIP switch to the up position (OFF). Failure to do so may impair the image qual-
ity.
Control Button - Press this button to restore the factory default settings, as described in
Resetting to the Factory Default Settings, on page 43, or to install using AXIS Internet
Dynamic DNS Service (page 15).
Video Inputs - Accommodates up to 4 separate video sources (VIDEO 1 - VIDEO 4)
simultaneously. Each supported video input is connected using a coax/BNC connector.
Physical connections made using e.g. 75 Ohm coax video cable have a recommended
maximum length of 800 feet (250 meters).
