Attach a 2 terminal connector to the temperature sensors 2-conductor cable. The temperature sensor
wires are not polarity sensitive.
Connect a 2 terminal connector to the AC adapters 2-conductor cable. The
adapter is polarity sensitive so be sure to connect the wires as shown in the
diagram.
Configuration and Testing
We’re now ready to configure the units of measurement and test the system. First, the units of
measurement jumpers need to be set. There are six standard PC type jumpers like you find on the
circuit boards in a PC. When the jumper cap is mounted on the jumper pins, the jumper is closed, if

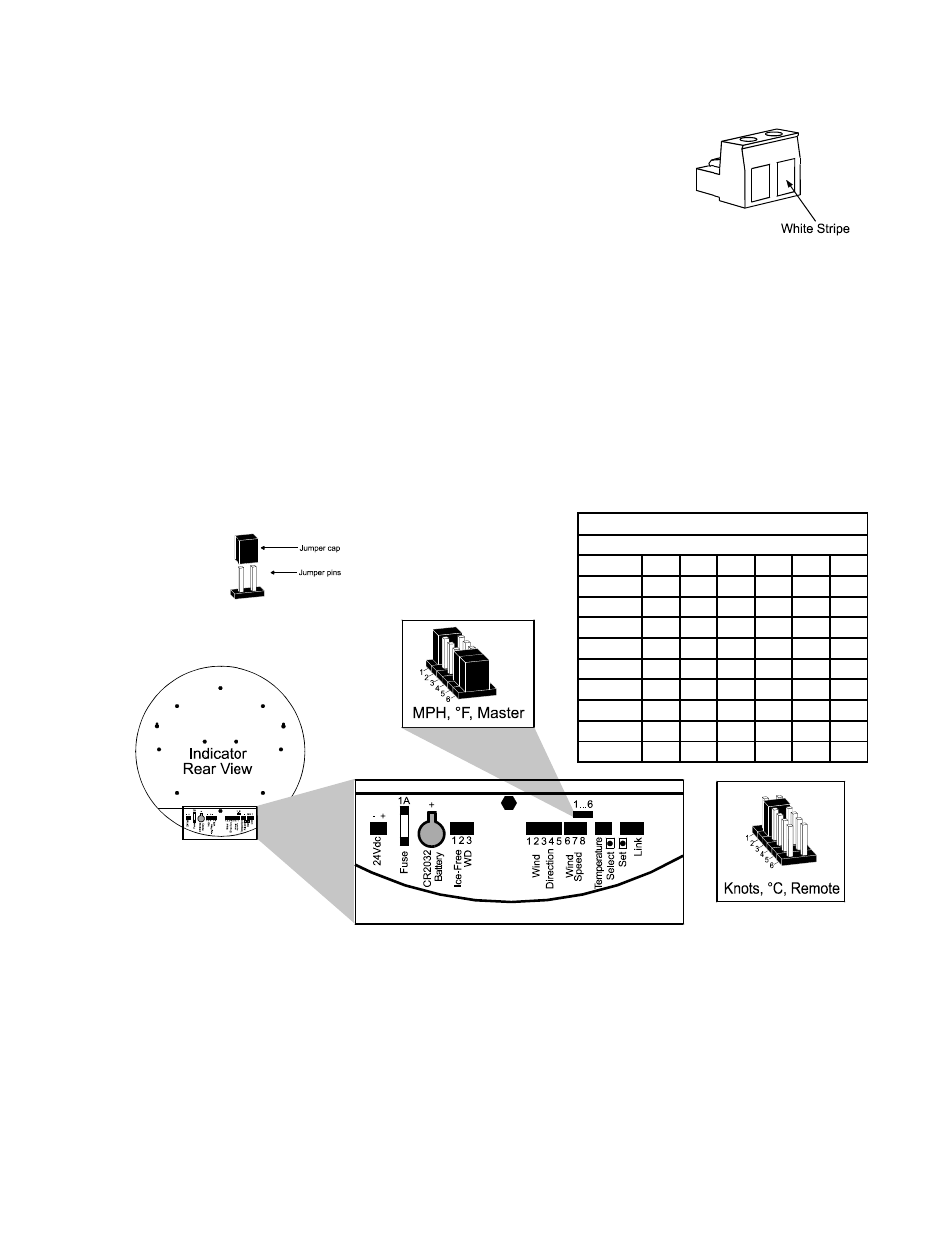

the cap is not mounted on the pins, the jumper is open (see diagram). The first four jumpers control
the units of measurement for wind speed, the fifth jumper sets the units of measurement for tempera-
ture and, the sixth jumper sets master or remote operating mode. Summit is shipped with the jumpers
set for: Speed = MPH, Temperature = °F and Mode = Master (see diagram). The following table
shows all of the valid jumper settings. If you want to use other units of measurement then you must
change the jumper settings using the table and diagrams.
Now it’s time to plug the terminal strips into the indicator. Note that there is a plug already installed
in the space for the optional ice-free wind direction sensor, don’t remove this plug unless you are
using the optional ice-free wind sensor set (see separate ice-free sensor instructions). To plug in a
terminal, position it with the screw heads oriented toward the middle of the indicator and press into
place firmly. The connectors will snap into place when inserted correctly. Go ahead and plug the
terminals into the appropriate positions on the indicator (see diagram) The AC adapter connects to
the position labeled 24Vdc, do not plug the AC adapter into a 110VAC outlet yet.
Jumper Settings
C = Closed, O = Open, X = Don't Care
Jumper #
1
2
3
4
5
6
MPH
C
O
O
O
X
X
Knots
O
C
O
O
X
X
km/h
O
O
C
O
X
X
m/s
O
O
O
C
X
X
Beaufort
O
O
O
O
X
X
Fahrenheit
X
X
X
X
C
X
Celcius
X
X
X
X
O
X
Master
X
X
X
X
X
C
Remote
X
X
X
X
X
O
