OBS-3A Turbidity and Temperature Monitoring System
Temperature, Salinity, Concentration, and Depth are shown on the charts.
Only the sensor measurements that were chosen in the configuration will be
shown. (Temperature and Salinity are shown as different traces on the same
chart. The temperature scale is on the left axis, and the salinity scale is on the

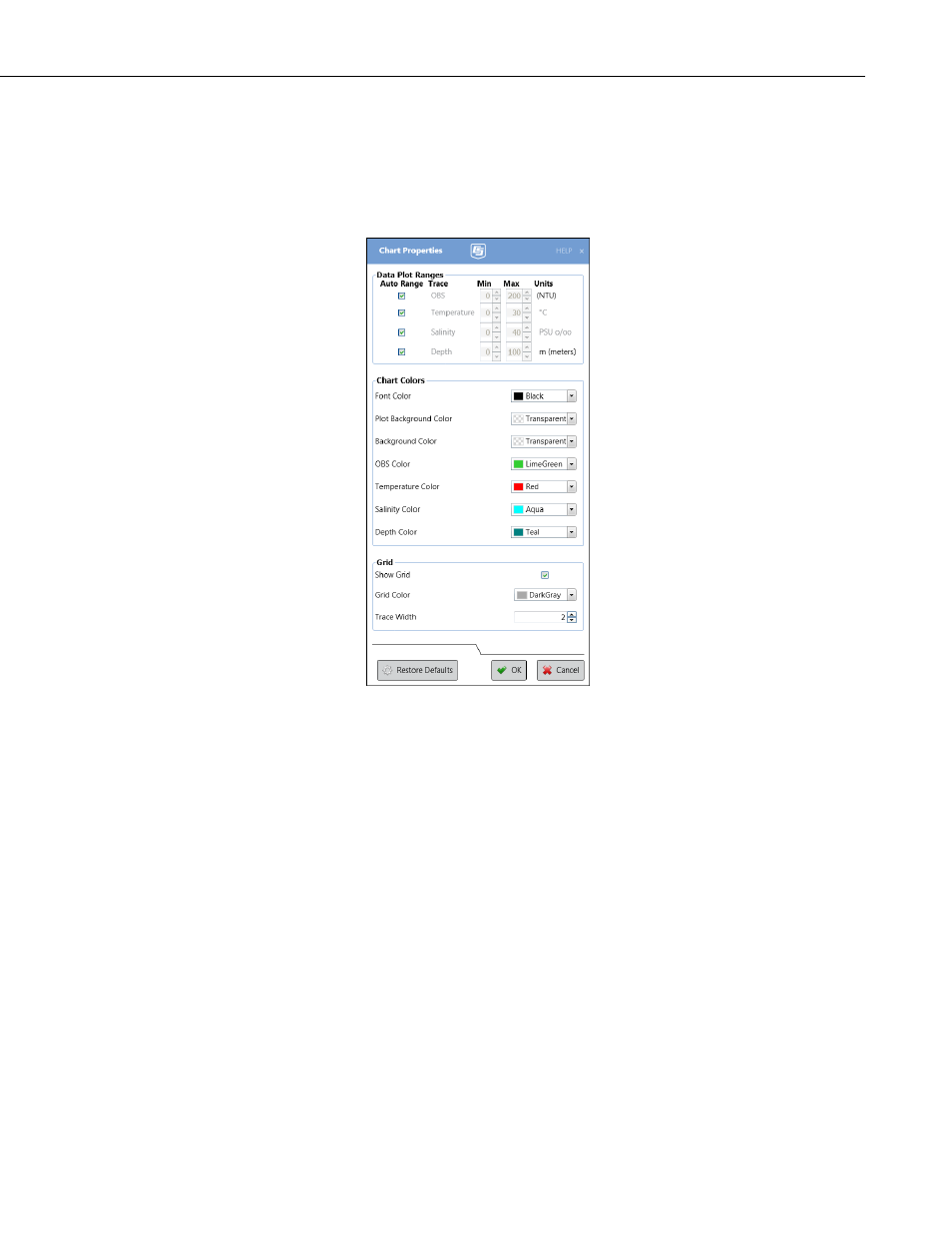

right axis.) You can change chart properties by pressing the Chart Properties
button.
Hold the right mouse button and use the mouse to pan through the data. Zoom
in on a graph by holding the left mouse button and dragging the mouse from
top-left to bottom-right over the area to be zoomed. Undo the zoom by holding
the left mouse button and dragging the mouse from bottom-right to top-left.
Select the Pause Data Output check box to temporarily pause the charts from
updating.
