OBS-3A Turbidity and Temperature Monitoring System

Show Terminal tab brings up a terminal screen that allows you to view the
commands being sent to the OBS-3A and the responses that are returned.

6.7 Connection

The default communication settings are: 115 kbps, 8 data bits, no parity, no
flow control. These settings will work for most applications and with most
PCs.

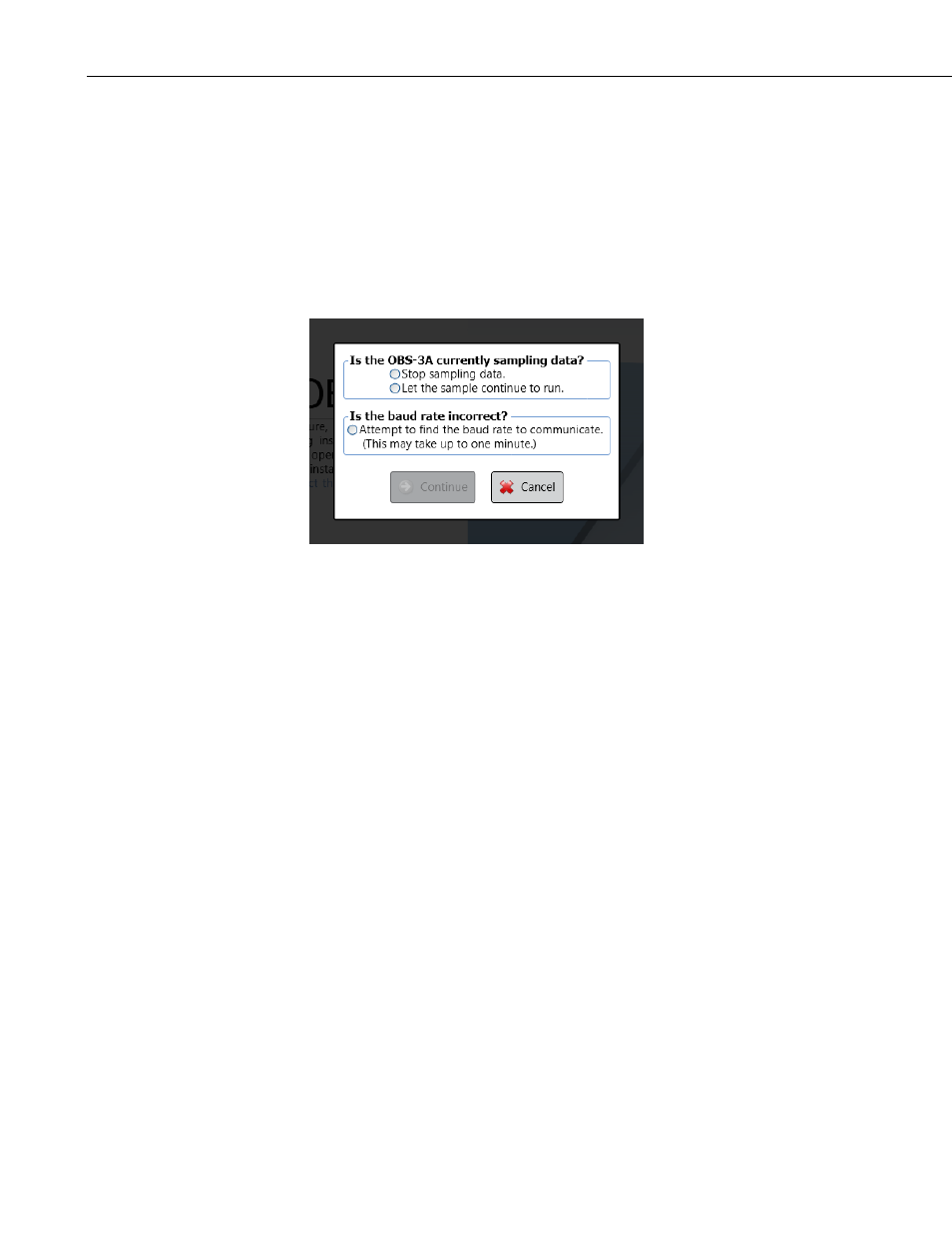

If the OBS-3A does not connect this screen will appear:

If the OBS-3A is sampling, you have the option to stop the test. You can also
choose to connect and allow the test to continue to run. If HydroSci cannot
find an OBS-3A at the specified baud rate, you can have HydroSci try each
baud rate until the OBS-3A responds.

Use the radio buttons to make your selection and then press the Continue
button.

6.8 OBS-3A Configuration

The configuration tab displays setup information, allows you to perform
operations such as putting the unit to sleep or erasing the data, and allows you
to set up datalogging configurations.

6.8.1 Information

Information provides you with the system information, including: Sampling;
Serial Numbers for the OBS-3A, pressure sensor, and temperature sensor;
Calibration Dates, and Firmware.
