OBS-3A Turbidity and Temperature Monitoring System
6.3 Running HydroSci
1. Select the HydroSci program to start the program.
2. Physically connect the OBS-3A to a PC with the test cable as shown in
FIGURE 6-3. This can be an RS-232, RS485, or USB plug.

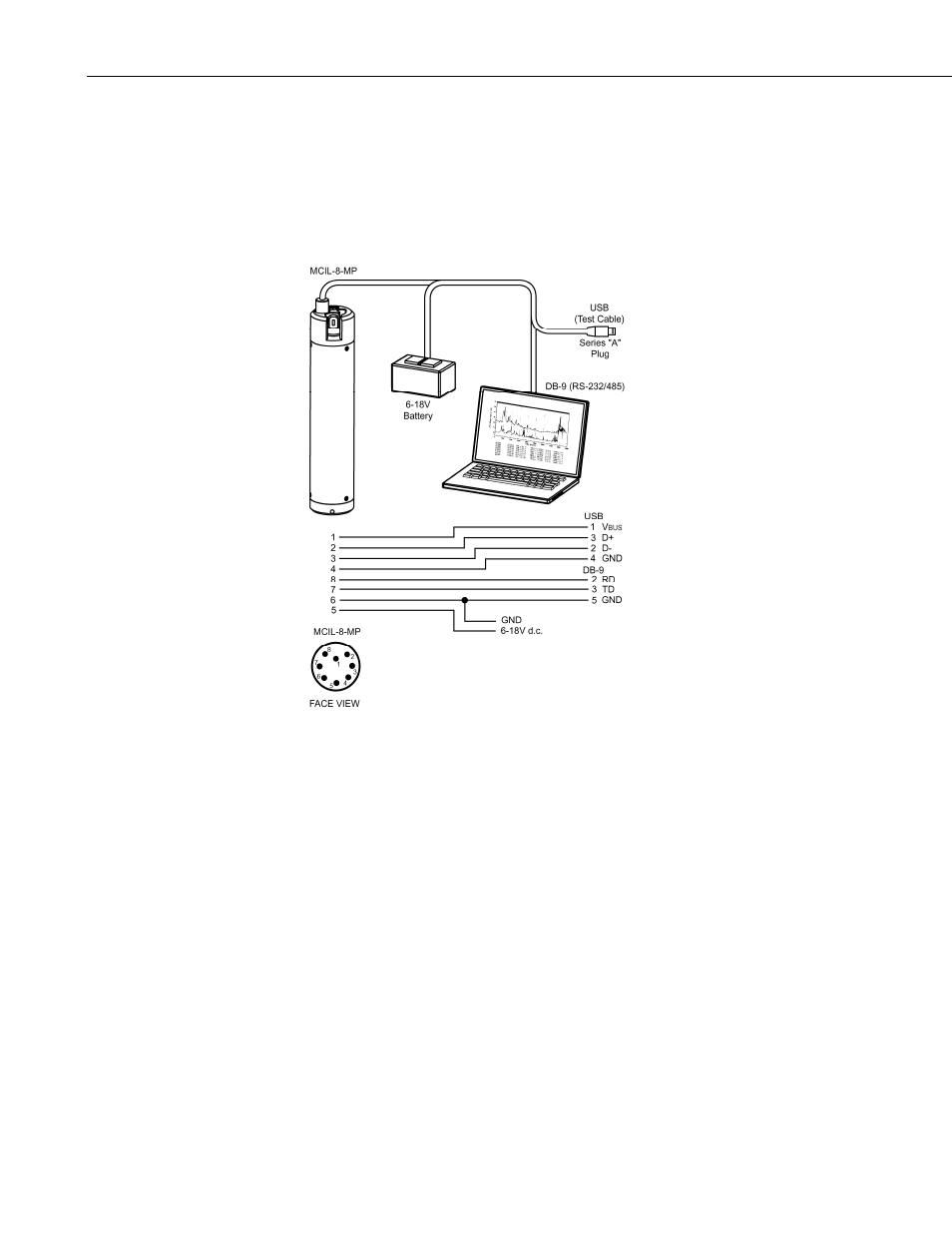

FIGURE 6-3. Connections and wiring of field cable
10
