9
• Within vibration and shock specification
5.2. Mounting Options
Direct connection to pressure ports with suitable piping and / or pres-
sure fitting or with bracket included for panel mounting. If using cable it
is recommended that the cable exit downward.
5.3. Pressure Connection
A. Only apply wrench to pressure port flats, DO NOT apply force to
the housing. Clear tubing of any debris (metal filings etc) and un-
wanted fluids (oil etc).
B. If using the panel mounting bracket minimize force applied from the
piping and ensure piping is parallel to the pressure port centerline.

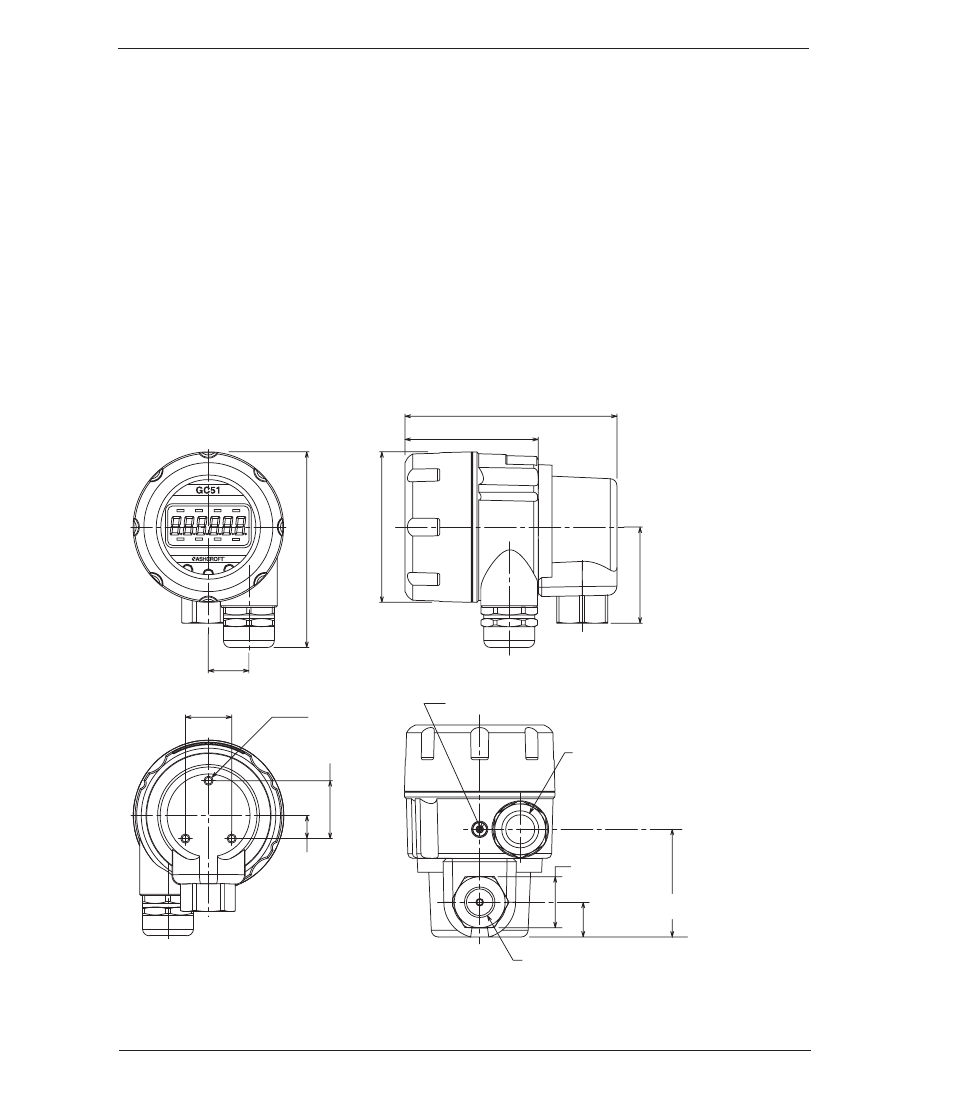

Dimensions in inches
Connection
Electrical Connection
PG 13.5 threaded
housing, factory
installed options
include cable gland
or 1/2 FNPT
conduit connection .79
ø
3.62
2.28
Air inlet port
1/4 NPT Female
3-M4 x 10
.98
.39
1
.6
3
2
.5
6
3
.3
5
.69
psi
.59
1.81
.87 x 1.0 Hex
