14

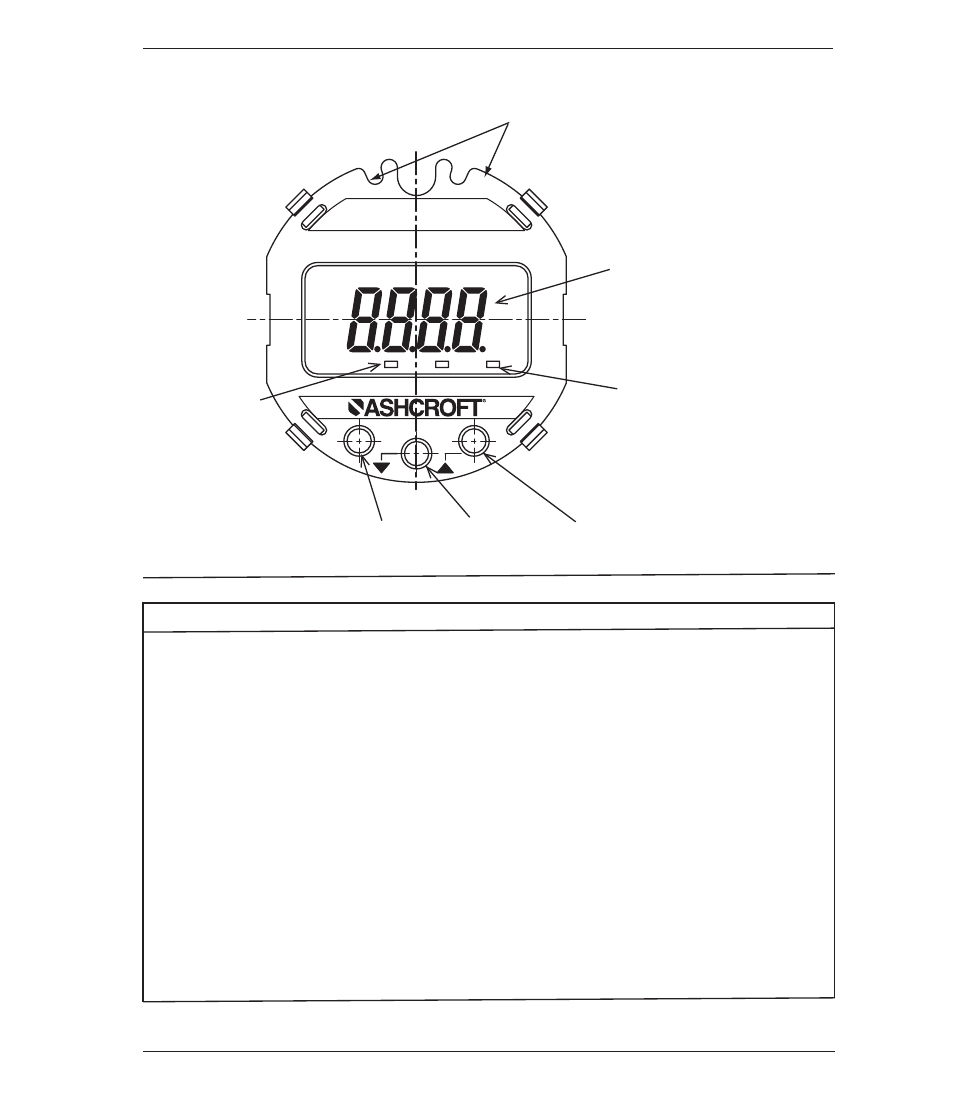

8. DISPLAY FUNCTIONS
(2)
Pressure
Unit Monitor
(1)
Measured
Data
(3)
Arbitrary
Unit Monitor
(4)
MODE key (5)
DOWN key (6)
UP key
CH+ CH-
PSI
M
GC51
Test
Terminals
Function
Pressure, linear scaling value, hold value
(max./ min), are displayed.
When either indicator is ON, the display is
reading in PSI.
When this indicator is ON, the linear scaling
value of an arbitrary unit is indicated on the
display.
Used to switch the setting mode, the measure-
ment mode and the setting item.
Used to change (decrease) and select the set
value and to zero-reset the hold function.
Used to change (increase) and select the set
value and to shift from the measurement mode
to the zero adjustment mode.
Designation
1. Measured Data Display
2. Pressure unit monitor
3. Arbitrary unit monitor
4.MODE button
੗
5.DOWN button #
6.UP button $
MODE
