4 PROGRAMMABLE LCD DISPLAY
4.1 Introduction
The LCD display on the UPS front panel is used to show various operational parameters of the UPS (in
real time) as well as other important system information. It is also used to program options and set
points for many UPS functions.
The LCD display operates in two main modes:
1. Normal Mode - The default mode of operation for displaying real time UPS parameters. When
left unattended, the display will always revert back to normal mode.
2. Menu Mode - Used for accessing additional system information and for programming any
modifiable UPS parameters. Menu mode is accessed by pressing and holding the Select/Menu
Mode button for approximately two seconds.

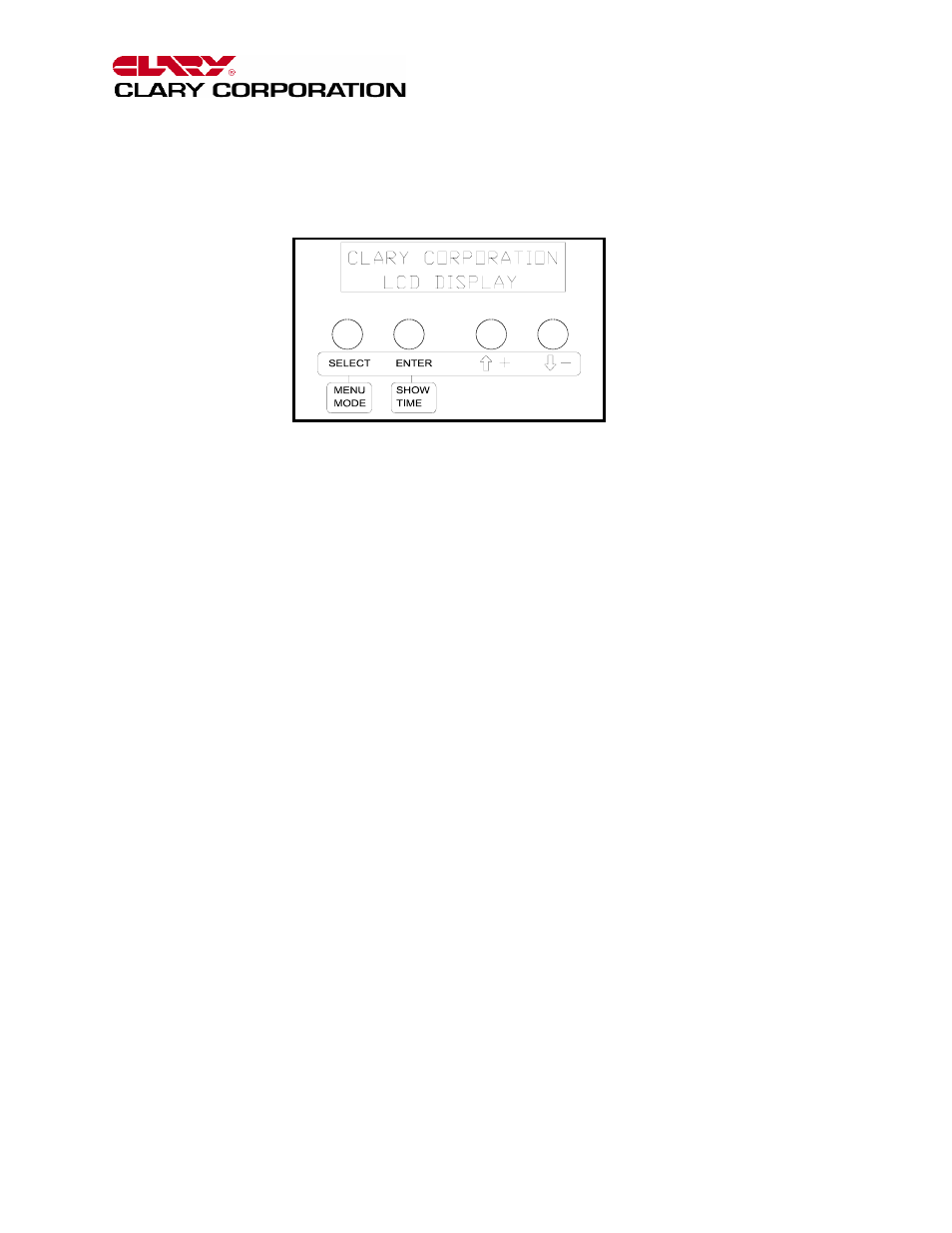

The Programmable LCD Display is operated by the 4 push button switches. Once in Menu mode, the
following eight main menus can be selected:
1. Battery system status
2. Power system
3. UPS system
4. UPS info
5. Event log
6. Options
7. Time/Date
8. Relays
From the normal mode’s main screen, depress and hold the SELECT/MENU MODE button until Menu
mode is entered (The screen will change to the Battery System status screen). Press the
SELECT/MENU MODE button to go to the menu you want then press ENTER. You will now be in one
of the seven menus.
