Figure 3: bypass box with gfci option, Table 3: bypass box descriptions – Clary SP Series-Model PD User Manual
Page 13
T H E C O N T I N U O U S P O W E R C O M P A N Y
13

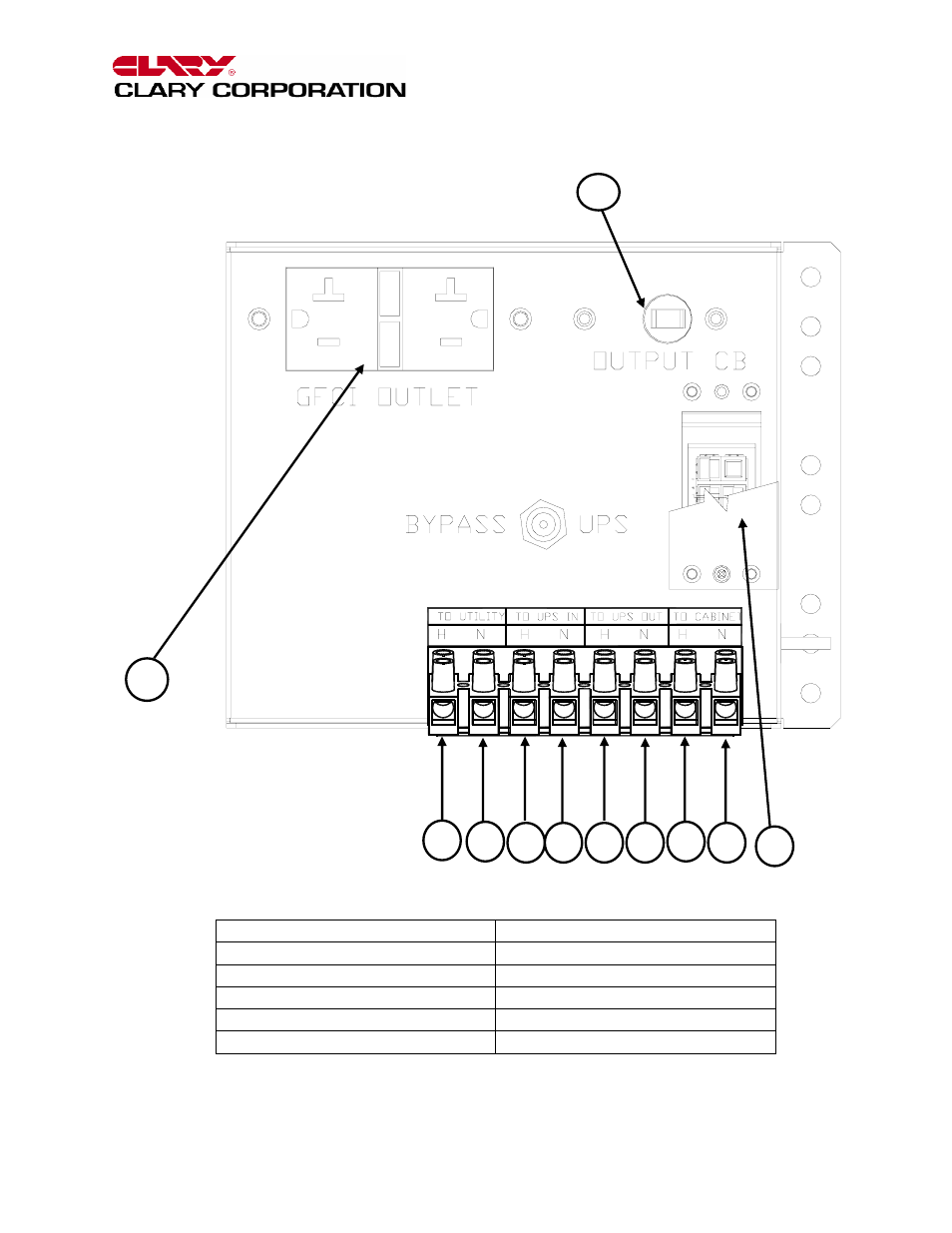

Figure 3: BYPASS BOX with GFCI Option
1 – To Utility - H
7 – To CABINET - H
2 – To Utility - N
8 – To UPS OUT - N
3 – To UPS IN - H
9 - Generator Input (Optional)
4 – To UPS IN - N
10 - GFCI Outlet (Optional)
5 – To UPS OUT - H
11 - Circuit Breaker for GFCI
6 – To UPS OUT - N
Table 3: BYPASS BOX DESCRIPTIONS
1
2
3
4
5
6
7
8
10
11
9
