Page 66
MICR PLUS, RS-232
58

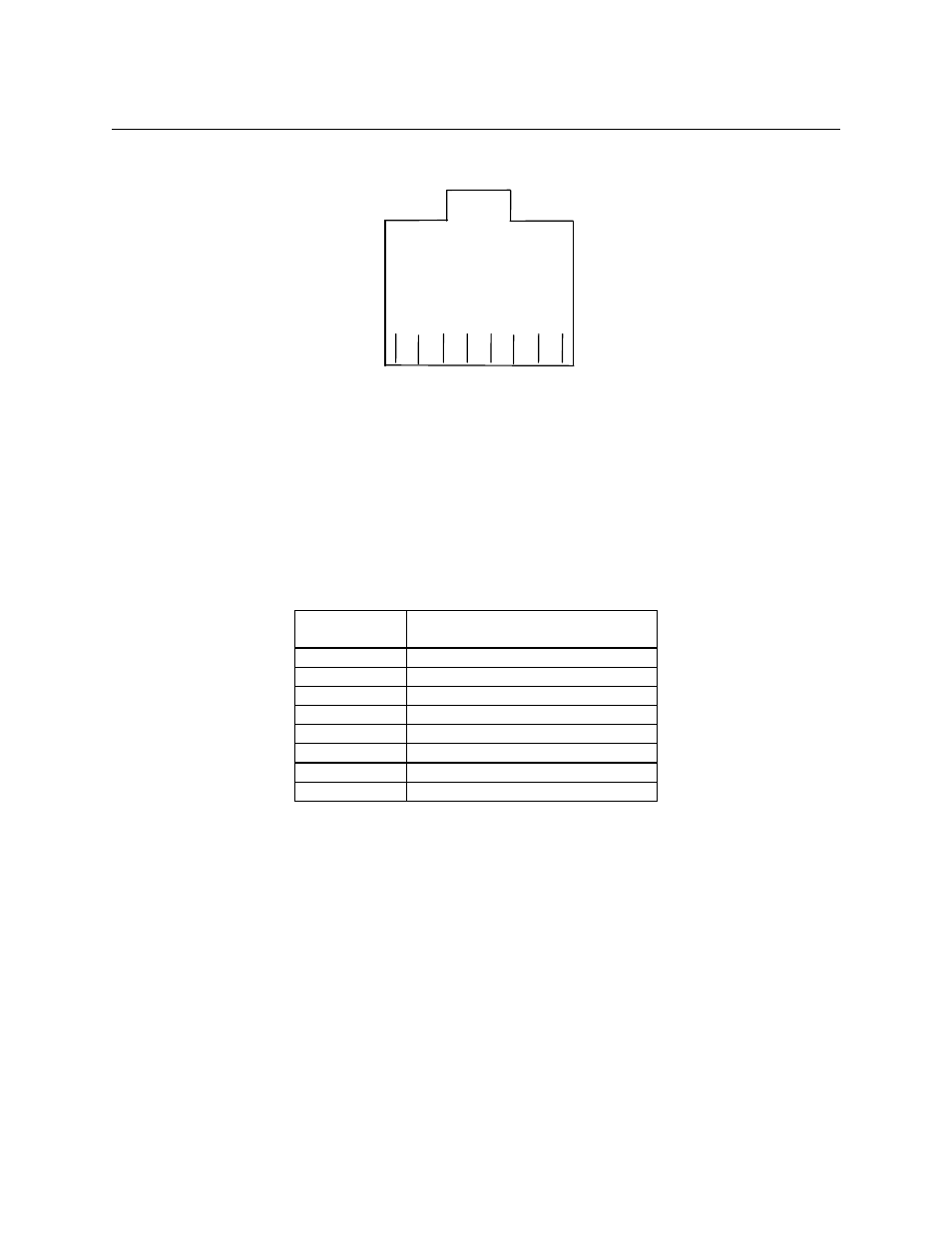

The 8-pin RJ socket for the RS-232 Host Port is shown in Figure F-1. The Pin List is shown in
Table F-3.
8 7 6 5 4 3 2 1
Figure F-1. RS-232 Host Port, 8-Pin, RJ Socket
Table F-3. RS-232 Host Port Pin List
PIN
NUMBER
SIGNAL
(MICR Plus as Reference)
1
+16V DC, unregulated
2 RXD
3 TXD
4 CTS
5 RTS
6 DSR
7 DTR
8 GND
