MICR PLUS, RS-232
42
The nonnumeric CMC-7 characters are translated by the MICR Plus as shown in Table B-1.
Table B-1. CMC-7 Nonnumeric Characters
CMC-7 Character MICR Plus Output
SI A
SII B
SIII C
SIV D
SV E
CHECK LAYOUTS

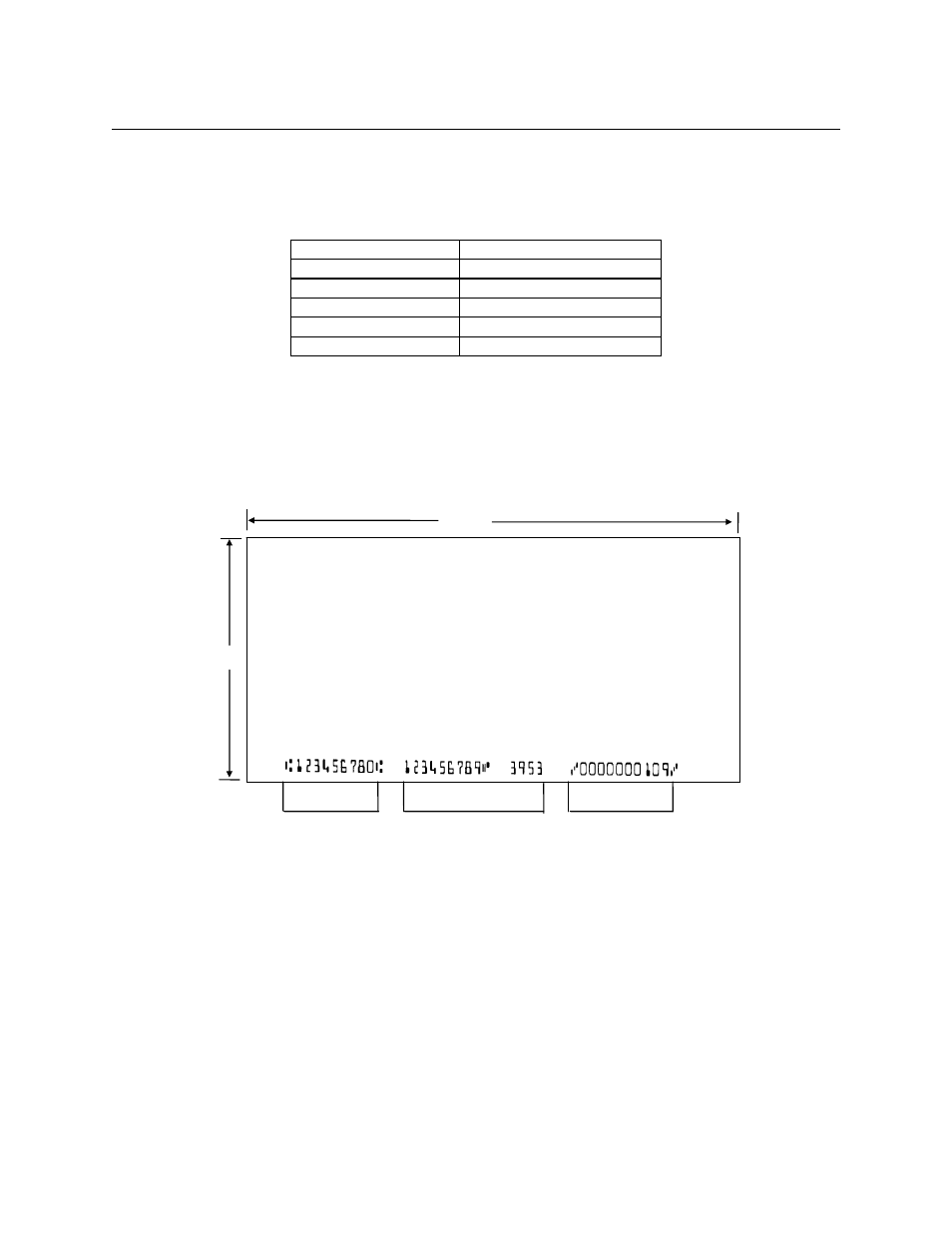

Personal checks with MICR fields are shown in Figure B-1. Business checks are shown in
Figure B-2. The digits 1 through 4 in the illustrations are described below under MICR Fields.
6.00”
2.75”
1 2 3
Figure B-1. Personal Checks
