MICR PLUS, RS-232
4
The ports are for the following connections:
•
The RS-232 Host port is used when connecting to an RS-232 Host.
•
The ECR port is used when connecting to an ECR Host.
•
The RS-232 Auxiliary Port is used to attach an external RS-232 device to the MICR Plus.
The MICR Plus in turn, acts as a communication bridge between the external device and the
Host device.
•
The Power plug connects to an adapter and wall power.
To Install the MICR Plus, perform the following steps:
1. On the interface cable connect the DB25/DB9 connector to the PC. The pin lists for
these connectors are shown in Appendix F.
2. On the interface cable connect the 8-pin RJ plug to the RS-232 Host port.
3. If an external RS-232 device is to be used, connect the cable from the RS-232 device to
the RS-232 auxiliary port. An example is shown in Figure 2-2.
Note
The RS-232 auxiliary port will be set with the same communication
parameters as the RS-232 Host Port.
25-pin, 6' Cable to PC
Part No. 22617504
10' Cable to IntelliPIN
Part No. 30019308
120 VAC
Power Adaptor
with 6' Cable
P/N 64300050
MICR Plus
IntelliPIN
Dock

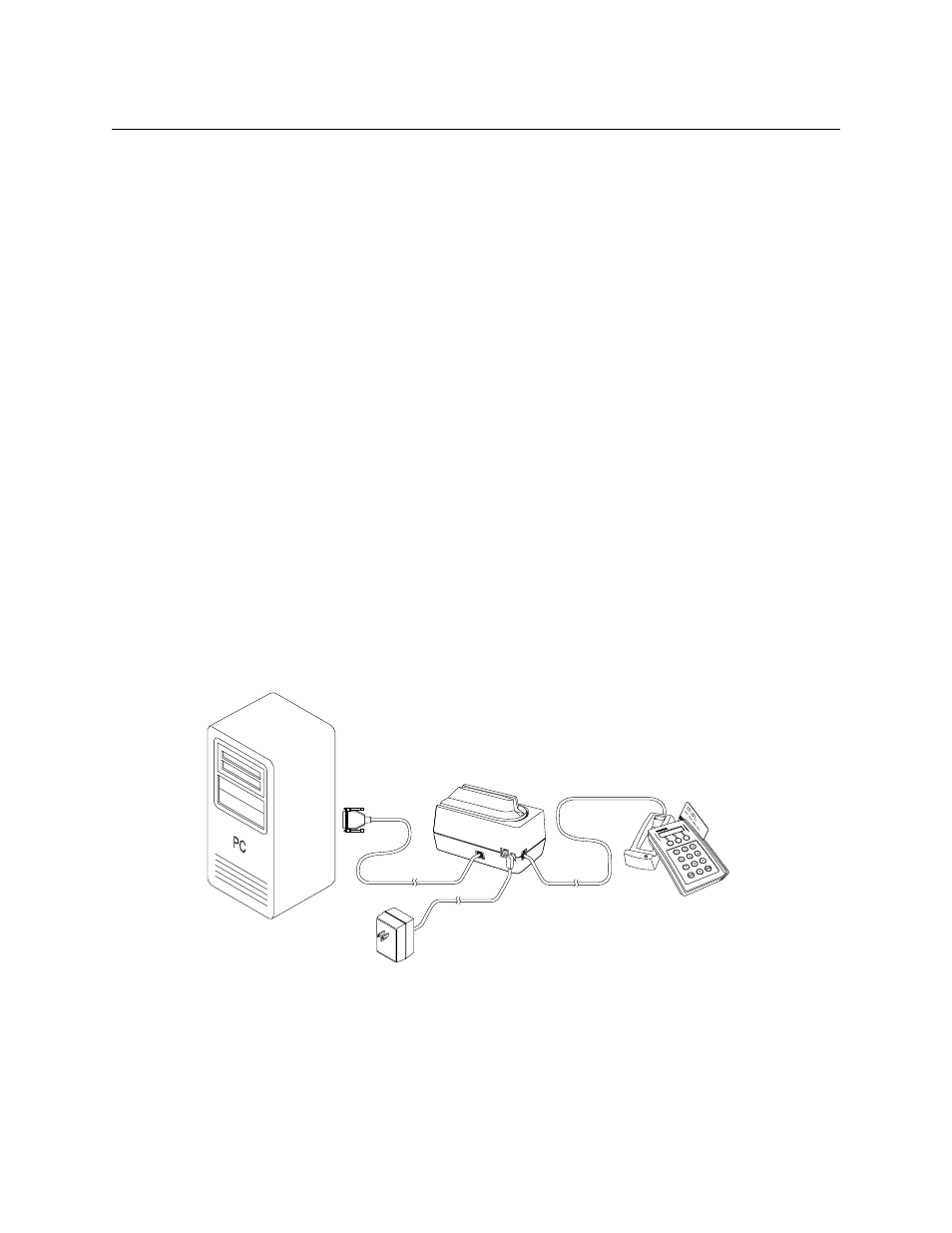

Figure 2-2. MICR Plus Connections
4.
On the AC power adapter, connect the jack to the plug on the MICR Plus.
