APPENDIX D. RS-232 AUXILIARY PORT
In addition to the RS-232 Host port, the MICR Plus offers the added benefit of an RS-232
auxiliary port. This port allows the user to attach an additional RS-232 device to the Host
through the MICR Plus. For example, Figure D-1 shows Mag-Tek’s IntelliPIN device attached
the RS-232 auxiliary port.
25-pin, 6' Cable to PC
Part No. 22617504
10' Cable to IntelliPIN
Part No. 30019308
120 VAC
Power Adaptor
with 6' Cable
P/N 64300050
MICR Plus
IntelliPIN
Dock

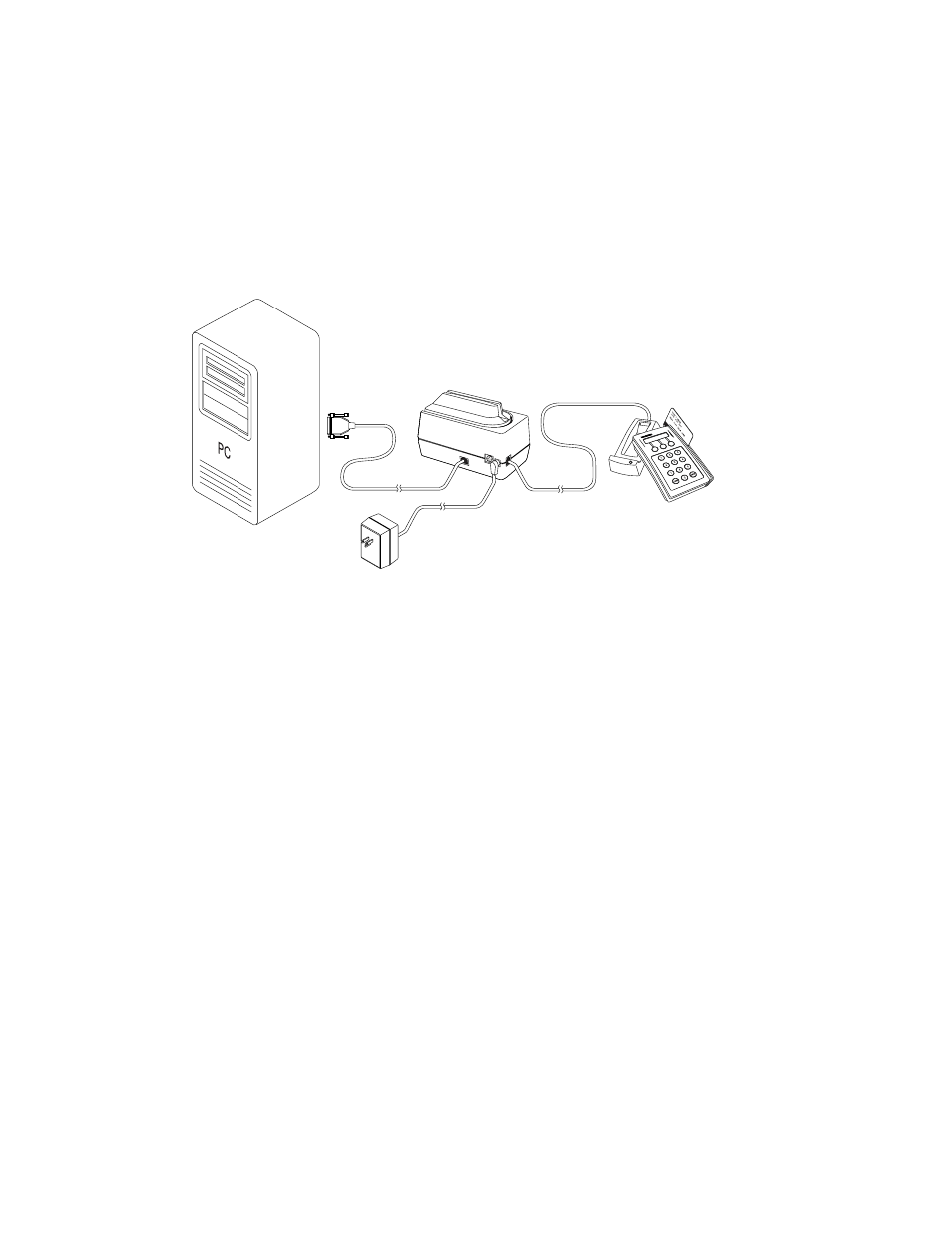

Figure D-1. IntelliPIN on Auxiliary RS-232 Port
In this setup, the MICR Plus serves as a communication bridge between the Host and the RS-232
device, directing the data flow between the Host and the RS-232 device. It should be noted that
at all times, the Host is responsible for the control and operation of the RS-232 device.
COMMUNICATION PARAMETERS
The RS-232 auxiliary port is set to the same communication parameters used by the RS-232 Host
port.
HOST DATA TO AUXILIARY PORT
The MICR Plus will not automatically direct Host data to the auxiliary port. There are two
methods available to direct data to the auxiliary port.
The first method involves bracketing the data with and as follows:
[Host data]
>
The MICR Plus will automatically remove and from the message, and will
transmit the Host data through the auxiliary port.
