SECTION 2. INSTALLATION
The installation for the MICR Plus is as follows:
REQUIREMENTS
The following is required for the Installation:
•
MICR Plus
•
Interface Cable, DB25 female, Part Number 22617504 or
Interface Cable, DB9, female, Part Number 22617506
•
AC Power Adapter with Cable, 120VAC to 12 VAC, 1 Amp, Part Number 64300050
•
Interface Cable, if required, from RS-232 Auxiliary Port to external RS-232 device
PORTS

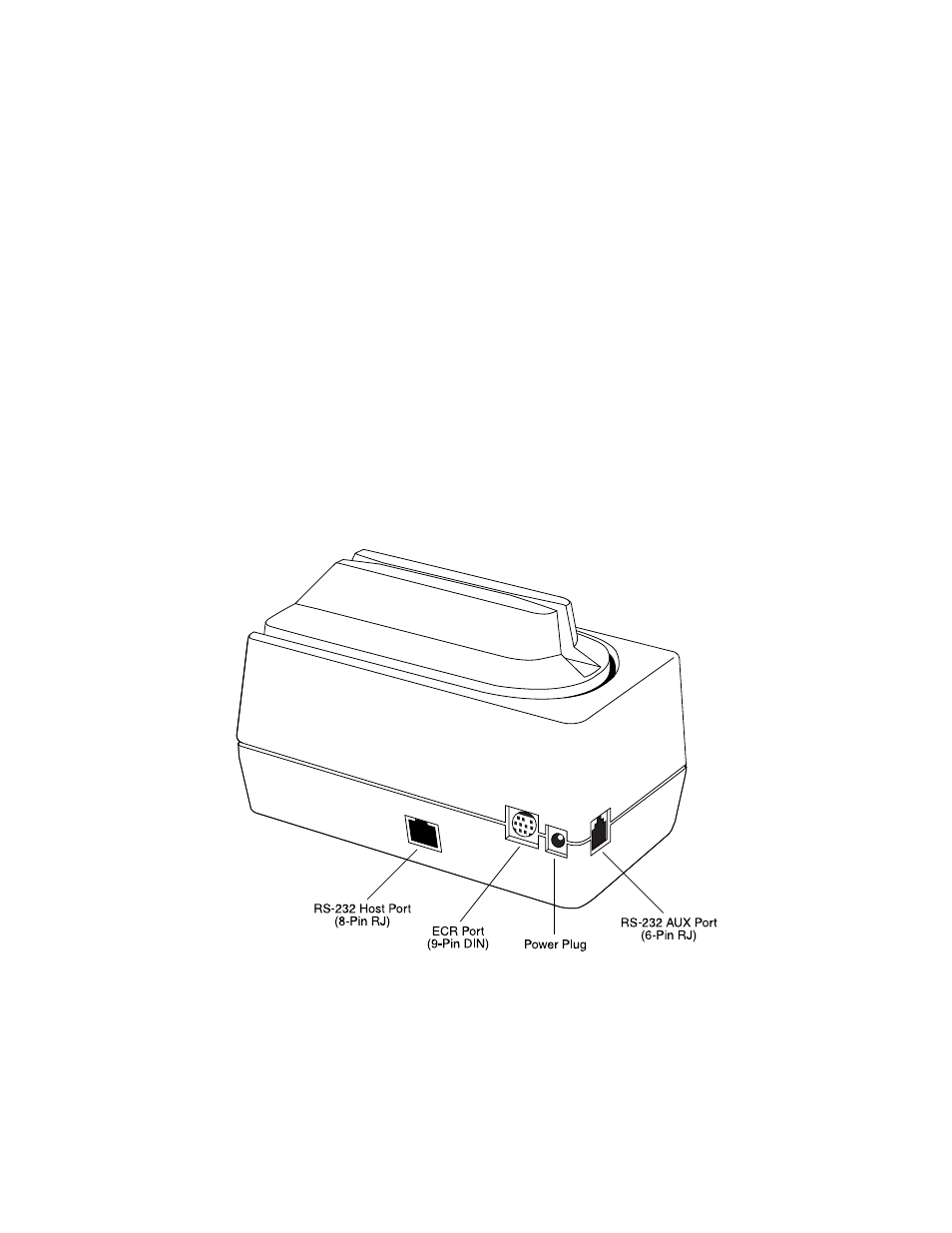

The MICR ports are shown in Figure 2-1.
Figure 2-1. Ports on the MICR Plus
