Instruc
tions manual - English - EN
17

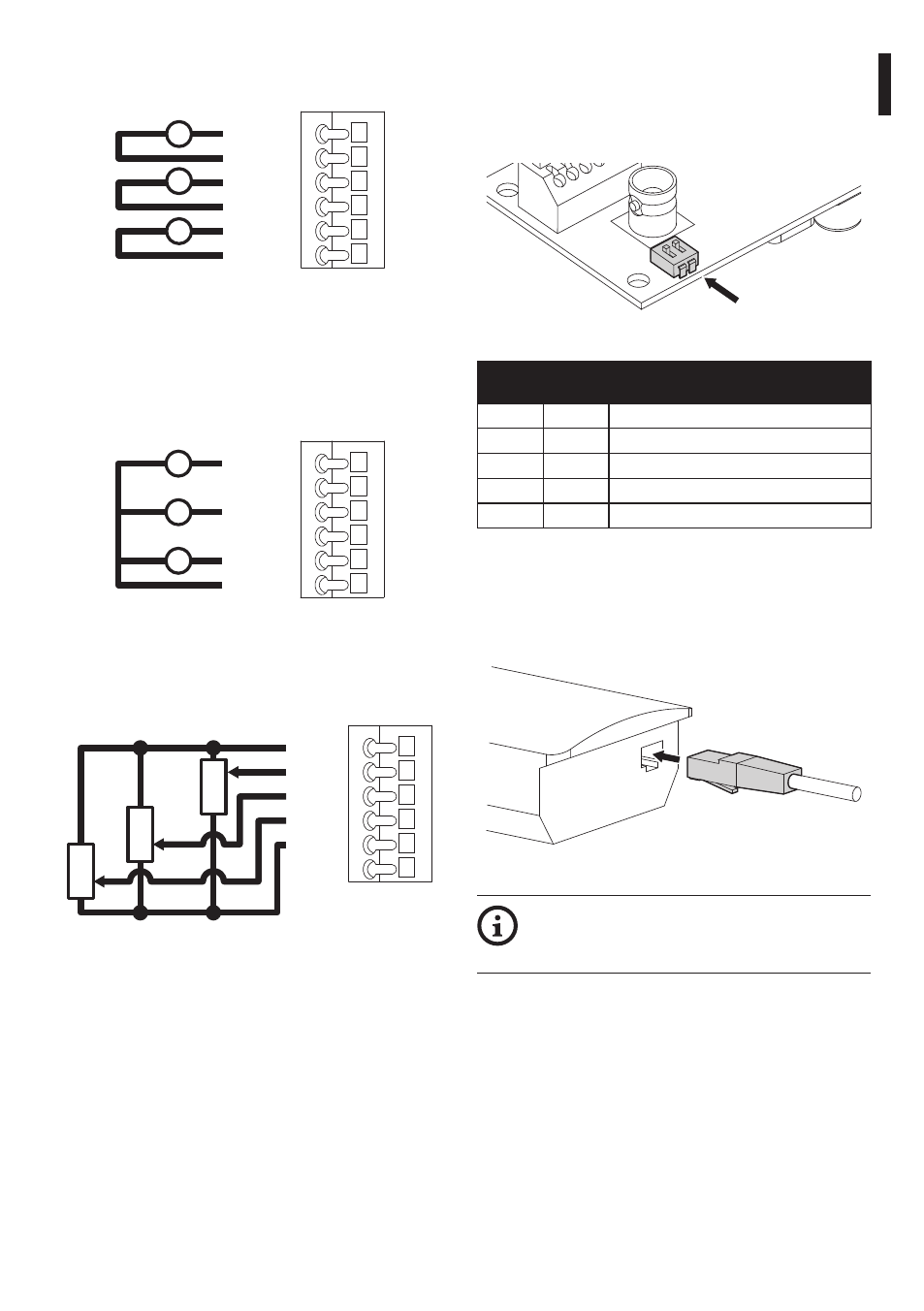

In the case of lenses with reverse polarity motors,
connect as shown in the figure.
FOCUS +
FOCUS -
IRIS +
IRIS -
ZOOM +
ZOOM -
+
M
+
M
+
M
CN2
Fig. 13 CN2.
In the case of lenses with common wire motors, it is
necessary to enable the corresponding menu option
(9.1.13 Camera Parameters, page 36). Make the
connections as shown in figure.
FOCUS +
FOCUS -
IRIS +
IRIS -
ZOOM +
ZOOM -
+
M
+
M
+
M
CN2
Fig. 14 CN2.
The potentiometer connections must be made as
shown in the following diagram.
+ POT
FOCUS
IRIS
ZOOM
- POT
GND
CN3
IRIS
ZOOM
FOCUS
Fig. 15 CN3.
7.1.3.3 Adjustment of the supply voltage of
the lens motors
Before powering the Pan & Tilt, set the lens power
voltage using DIP1.
DIP1
Fig. 16
ADjUSTMENT OF THE SUPPLY VOLTAGE OF THE LENS
MOTORS
DIP 1 DIP 2 Configuration
OFF OFF 15Vdc
ON OFF 12Vdc
OFF ON 9Vdc
ON ON 6Vdc
Tab. 3
7.1.3.4 Connection of the communication
line
Connect the Ethernet cable to the camera.
Fig. 17
Gather the excess cable to avoid it
interfering with the wiper operation (in the
versions in which they are available).
