ASSEMBLY INSTRUCTIONS FOR

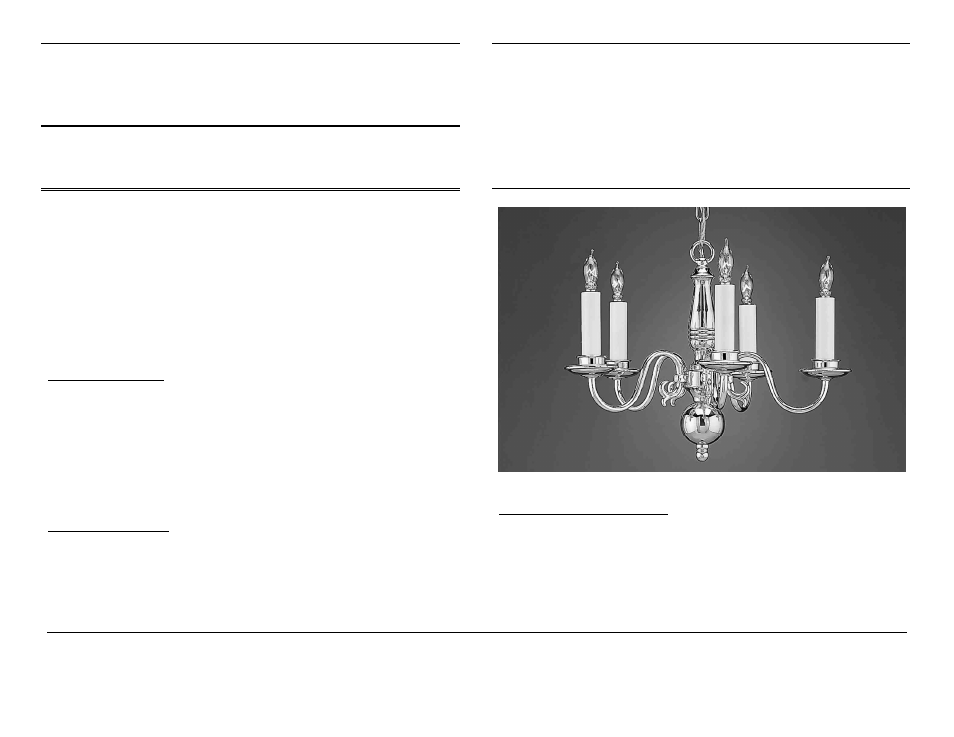

Traditional Colonial Series
3115/5
Major fixture parts manufactured in Germany by Holtkötter Leuchten GmbH. Final assembly by Holtkötter International, Inc. in South St. Paul, MN.
Holtkötter ® & Holtkötter Leuchten ® are registered trade-
marks of Holtkötter International, Inc. All Rights Reserved.
© Holtkötter International, Inc.
Please make sure that the following parts for your fixture are enclosed.
A column assembly consisting of:
• a threaded nipple
• the brass column piece
• the brass loop
A canopy kit consisting of:
• 3 feet of chain
• hanging hardware
• canopy
COLUMN ASSEMBLY
The fixture is pre-wired. The only thing that needs to be attached is the
column.
1. Push the threaded nipple over the ground wire and the fixture wire.
2. Screw the threaded nipple into the coupling at the top of the fixture.
3. Slip the brass column over the ground and fixture wire.
4. Thread the brass loop onto the threaded nipple.
The column assembly is now complete.
HANGING ASSEMBLY
1. Attach the chain to the top loop of the fixture and pull the wire
through the chain.
2. Once the wire is pulled through the chain, attach the other side of
the chain to the screw collar loop and screw the fixture bar over the
1/4 IP threaded nipple.
Now the fixture is ready to be hung.
3115/5
WIRING INTO THE OUTLET BOX
Connect the copper ground wire to the ground wire on the outlet box. The
fixture wire (=lamp cord) has a marked side which is rough, and an unmarked
side which is smooth. Holding your thumb over both sides of the wire, you
can feel the rough and smooth part of the wire.
The rough side of the wire connects to the white (neutral) wire in the outlet
box. The smooth side connects to the black (hot) wire in the outlet box.
