ASSEMBLY INSTRUCTIONS FOR
Major lamp parts manufactured in Germany by Holtkötter Leuchten GmbH.
Bulbs manufactured in Germany by Osram GmbH. Final assembly by Holtkötter in South Saint Paul, MN. Holtkötter ® and Holtkötter Leuchten ® are registered trademarks of Holtkötter. All Rights Reserved.
© Holtkötter
LICHTSTAR Triple & Quad Canopy
No. C-8310 & No. C-8410
Care Instructions
Use only a soft, dry cloth to clean. If necessary, a slightly damp, soft cloth can be used to spot
clean. Do not use common household cleaners on lamps or fixtures, as the lacquer on the
outside of the brass may be damaged as a result. Enjoy your new Holtkötter lamp.
C-8310
C-8410

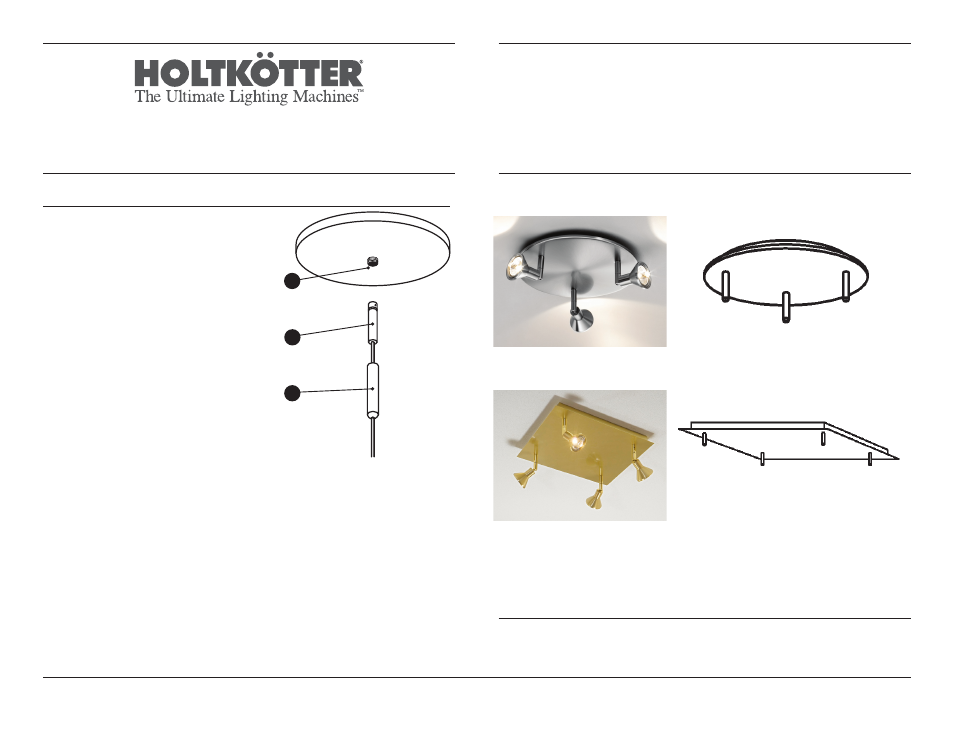

QUICK-CONNECT INSTRUCTIONS
1. Once the LICHTSTAR canopy has been
installed, the quick-connect feature
completes the fixture.
2. Be sure to discard the nut (A) removed
from the canopy and universal backplate
assembly, referred to in Step 2 under the
Mounting Instructions. This will allow access
to the threaded stem (G) at the center of the
canopy.
3. Insert the plug (E), located at the end of
the cable or reflector, into the center of the
threaded stem (G).
4. Slide the finished stem (D) over the plug (E)
and screw into place on the threaded stem
(G).
D
E
G
Diagram shows Canopy C-8120
with a cable assembly.
C-8310 R-5900
C-8410 R-5900
