ASSEMBLY INSTRUCTIONS FOR
Major lamp parts manufactured in Germany by Holtkötter Leuchten GmbH.
Final assembly by Holtkötter in South Saint Paul, MN. Holtkötter ® and Holtkötter Leuchten ® are registered trademarks of Holtkötter. All Rights Reserved.
© Holtkötter

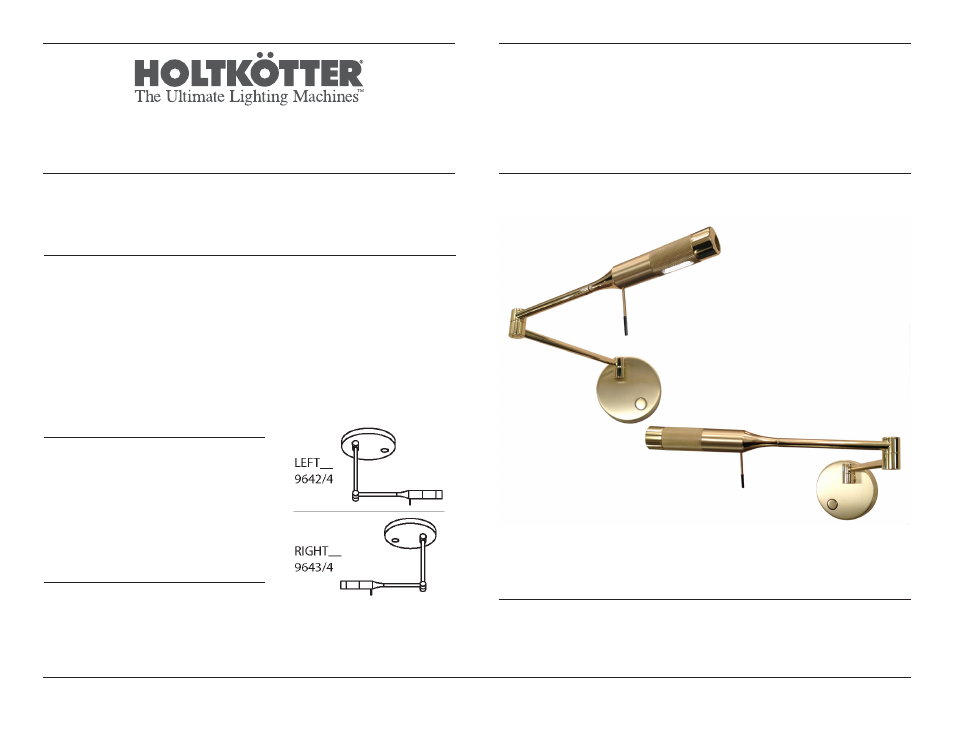

LED Wall Sconces
No. 9642*LED & No. 9643*LED
Care Instructions
Use only a soft, dry cloth to clean. If necessary, a slightly damp, soft cloth can be used to spot
clean. Do not use common household cleaners on lamps or fixtures, as the lacquer on the
outside of the brass may be damaged as a result. Enjoy your new Holtkötter lamp.
IT IS FIRMLY RECOMMENDED THAT A LICENSED ELECTRICIAN INSTALL THIS
FIXTURE.
Installation Instructions
1. Disconnect power to the outlet box where the sconce will be installed.
2. Loosen the set screws on the top and bottom of the sconce to release the universal crossbar
strap from the back of the fixture. Do not remove the set screws completely.
3. Pull the universal cross-bar strap off of the fixture.
4. Mount the universal cross-bar strap to the outlet box.
5. Connect the wires from the sconce with the wires in the outlet box according to generally
accepted electrical standards.
6. Mount the fixture to the crossbar strap and tighten the set screws on the top and bottom of
the sconce to secure the fixture.
7. Your wall sconce is now operational.
Dimmer Function
The LED wall sconce is equipped with a “touch”
dimmer.
1. To turn the sconce On or Off, briefly touch the
dimmer button.
2. To adjust the light output, touch and hold
the dimmer button. It will cycle through the
dimming levels. Release the dimmer when the
proper light level is achieved.
Power Consumption
Voltage: 12V
Amperage: 350mA
Wattage: 4.2W
9642/4*LED
9643/4*LED
