ASSEMBLY INSTRUCTIONS FOR

Major lamp parts manufactured in Germany by Holtkötter Leuchten GmbH.
Bulbs manufactured in Germany by Osram GmbH. Final assembly by Holtkötter in South Saint Paul, MN.

Holtkötter

and Holtkötter Leuchten

© Holtkötter

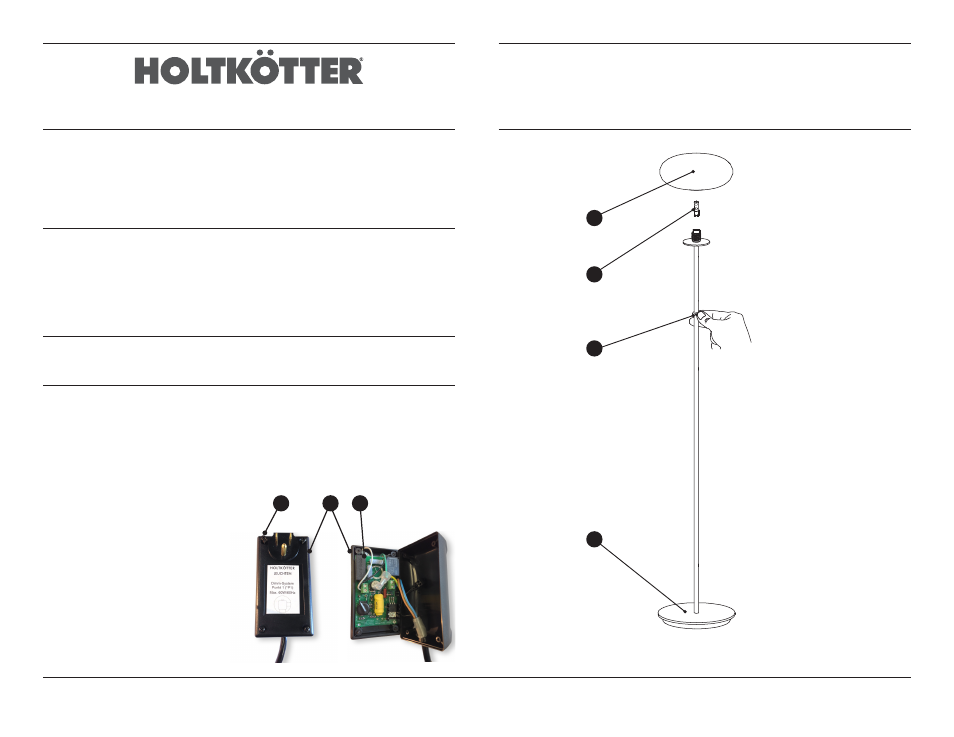

Please make sure the following parts are included:
1. Lamp Base (A) with Punkt1 (*P1) dimmer (D)

2. Bulb (B): 60 Watt Halopin, Frosted (Order Code: 9250*060-HPNFR)

3. Glass Shade (C)

Install the Bulb and Glass Shade

1. Install the new bulb, being careful not to touch the bulb envelope with your bare

hands. Insert it into the socket and push it down.

2. Once the bulb is installed, place the threaded end of the glass over the bulb and onto

the socket.

3. Screw the glass shade down on the fixture until it is firmly in place.

4. Your lamp is now operational.

Note of Caution

The recommended replacement bulb for this fixture is the 60 Watt Halopin bulb (frosted).

Replace the Fuse

An integrated fuse to protect the dimming circuit can be found in the box housing
the plug. Please check the fuse first, in case the lamp does not come on.
A four (4) Amp replacement fuse can be found on the Holtkoetter parts website:

http://www.holtkoetter.com/products/parts/fuse-4amp.aspx

or at your local automotive

or electronics parts store.

1. Unscrew the screws (G) located on each corner of the plug housing (E).

2. Open the housing to reveal the circuit board.

3. Locate the black box inside labeled

Fuse 5 x 20 (F) and open it.

4. Remove and discard old fuse; replace

with the new fuse.

5. Close the small fuse box and the plug

housing.

6. Replace and tighten the four screws

on the outside of the plug housing.

Halogen Floor Lamp

No. 6542*P1
