ASSEMBLY INSTRUCTIONS FOR
Major lamp parts manufactured in Germany by Holtkötter Leuchten GmbH.
Final assembly by Holtkötter in South Saint Paul, MN. Holtkötter ® and Holtkötter Leuchten ® are registered trademarks of Holtkötter. All Rights Reserved.
© Holtkötter
LED Floor Lamp
No. 2560 LED*P1
Your “Dimm System Punkt 1” LED floor lamp must be assembled with the LED unit and the glass
shade.

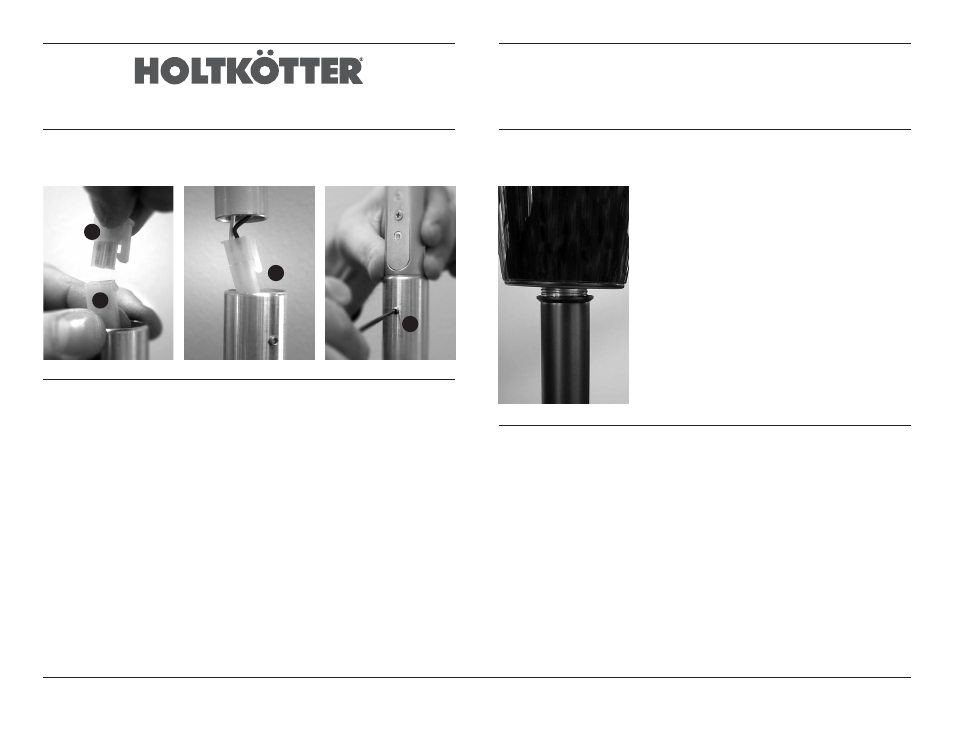

Install the LED Unit
1. Locate the white connection clip parts. One part (A) is connected to the top
of the lamp base, the other part (B) is connected to the bottom of the LED
unit.
2. Secure the white connectors, making certain that the hook (C) is snapped
past the clip on the part (A).
3. Push the connector back into the stem of the lamp.
4. Insert the LED unit into the top of the lamp base until it stops. Center one
column of LEDs with the set screw (D) located on the stem of the base of the
lamp. Tighten the set screw to secure the LED unit.
5. You may now install the glass shade.
A
B
C
D
Install the Glass Shade
6. Lower the glass shade down over the LED portion of the floor lamp.
7. Screw the glass shade down on the fixture until it is firmly in place.
8. Your lamp is now operational.
