14

1080 N. Crooks Road • Clawson, MI 48017 • 800.635.0289 • Phone 248.435.0700 • Fax 248.435.8120 • www.ametekapt.com

AUTOMATION & PROCESS TECHNOLOGIES

®

A Tri-color LED is conveniently located next to the

connector to help with set-up and diagnostics.

Diagnostic LED

LED Color Description

None

No power to LDT

Green

Magnet signal detected and within programmed

range.

Yellow

Magnet signal detected, but magnet is outside of

programmed range.

NOTE: Magnet can be programmed in this range

if desired.

Red

No magnet signal detected. Make sure magnet

is on the rod and within the active area. Move

magnet back into the range and cycle power.

If a problem exists after reading this section, please

contact our technical support department.

General Checks

Make sure that the magnet is located within the

LDT’s active stroke area. Keep in mind that the LDT

is programmable over the entire active stroke area.

Captive magnet assemblies should be positioned

so that they can move freely over the entire area of

the active stroke without binding or pushing on the

rod end. Non-captive magnet assemblies should be

situated so that the magnet is no farther than 0.2”

from the rod at any point in the magnet assembly’s

movement.

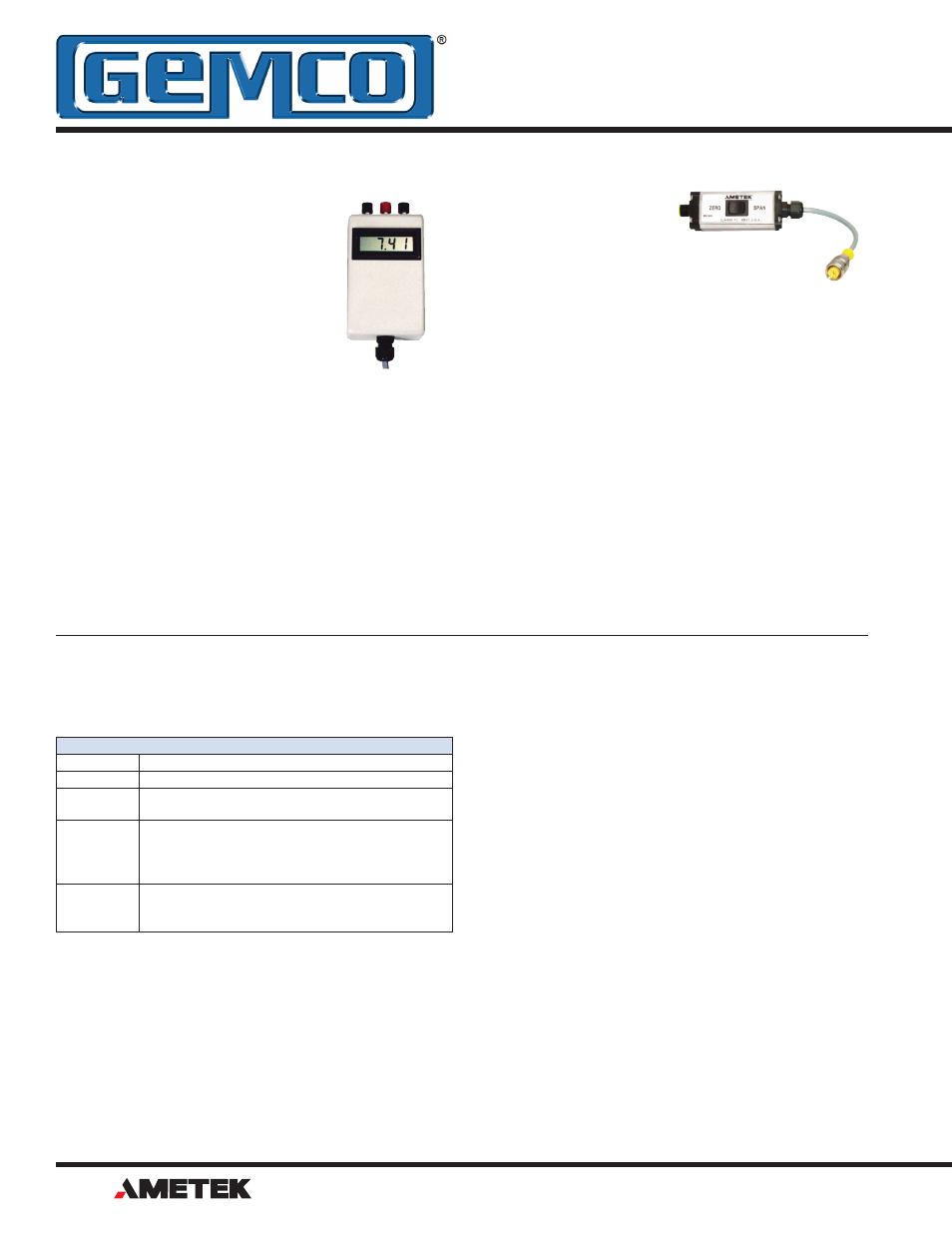

Optional Remote Tester & Programmer

The battery operated remote tester / programmer is

available in either a voltage or current model. P/N

SD0528810 is designed for voltage

units while SD0528811 is for current

units. Both units are designed to

work with connector option S only.

These units are typically used to

demonstrate the functionality of the

LDT in the field, however, they can

be used as a handy troubleshooting

/ programming device.

1. Attach the 5 pin Euro connector

to the VMAX.

2. Push the toggle switch to the ON position to power

the LDT.

3. Place magnet assembly where Zero is to be

located, but within the active region of the probe.

4. Push the black Zero button for 4 seconds,

release for 1 second. Within 5 seconds, push

the Zero button again. This completes the Zero

programming process.

5. Place magnet assembly where Span is to be

located, but within the active region of the probe.

6. Push the black Zero button for 4 seconds, release

for 1 second. Within 5 seconds, push the Span

button.

NOTE: This time the Span button is pushed for the

final programming step.

This completes the programming process.

Appendix A: Troubleshooting

NOTE: Ferromagnetic material (material readily

magnetized) should be located no closer than 0.25”

from the magnet or LDT rod end. This includes

mounting brackets, magnet spacers, magnet brackets,

and mounting screws. Ferromagnetic material can

distort the magnetic field, causing adverse operation or

even failure of the LDT.

Check all LDT wires for continuity and/or shorts. It

is preferred that the cable between the LDT and the

interface device be one continuous run. If you are

using a junction box, it is highly recommended that the

splice junction box be free of AC and/or DC transient-

producing lines. The shield should be carried through

the splice and terminated at the interface device end.

Power Supply Checks

This section will help you to determine if your power

supply is adequate for the LDT to operate properly, or

if the LDT’s cable has a short or open.

In order for the VMAX to operate properly, the external

power supply must provide a level between 7-30 VDC.

A power supply providing voltage above this specified

range may damage the LDT. A power supply providing

power below this specified range will not be sufficient

Optional In-Line Programmer

The 955-1409 is a remote

programmer that can help

simplify the programming

process. The programmer

is a portable device

that can be temporarily or permanently

installed in series with the VMAX with

connector option S.

1. Remove the 5 pin cordset to the LDT.

2. Attach the existing cordset to the 955-1409

programmer.

3. Attach the other end to the LDT.

4. Apply power to the LDT.

5. Place magnet assembly where Zero is to be

located, but within the active region of the probe.

6. Push the Zero button for 4 seconds. Release the

button for 1 second. Within 5 seconds, push the

Zero button again.

7. Place magnet assembly where Span is to be

located, but within the active region of the probe.

8. Push the Zero button for 4 seconds. Release the

Zero button for 1 second. Within 5 seconds, push

the Span button.
