11

1080 N. Crooks Road • Clawson, MI 48017 • 800.635.0289 • Phone 248.435.0700 • Fax 248.435.8120 • www.ametekapt.com

AUTOMATION & PROCESS TECHNOLOGIES

®

A

U

TO

M

A

TIO

N

&

P

R

O

C

ES

S T

EC

H

N

O

LO

G

IE

S

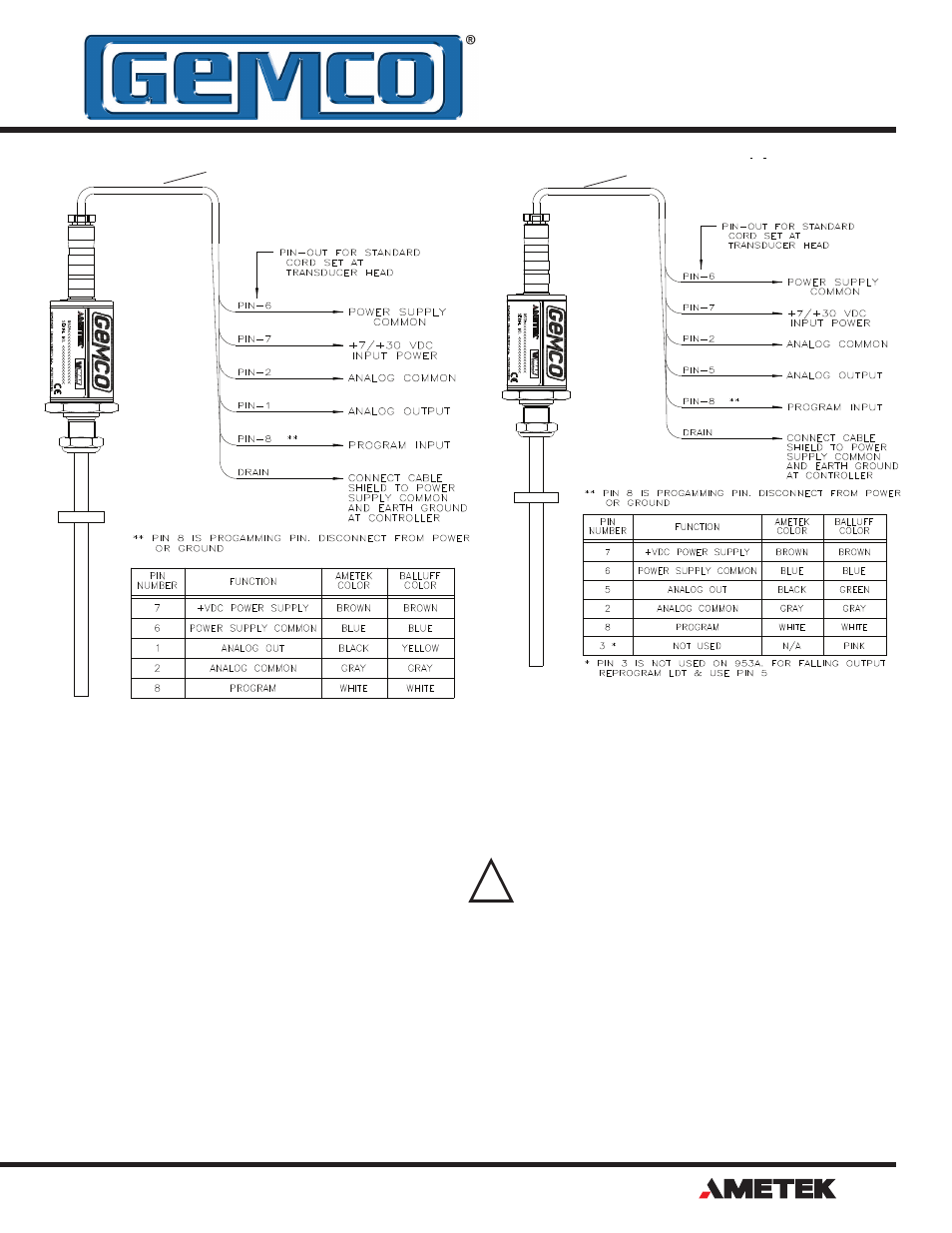

Figure 3-7: Wiring for Connector

Option "B", 8 Pin DIN,

Voltage Output

CAUTION: Pinout is different for

voltage vs. current models with

connector option "B"

!

Cable # SD0553300LXX

NOTE: XX= Length in feet

A

U

TOM

A

TI

O

N

&

PROCE

S

S T

E

C

H

N

O

LO

GIES

Figure 3-6: Wiring for Connector

Option "B", 8 Pin DIN,

Current Output

Cable # SD0553400LXX

NOTE: XX= Length in feet
