RocketRAID 2310 Hardware Description/Installation
2 - LED Connections
The RocketRAID 2310 has two LED jumpers that are used to indicate the activity and
failure status of hard disks attached to the card’s four SATAII channels.
J3 and J4 can be used to configure LED indicators for each individual disk attached to
the card (one LED per channel).

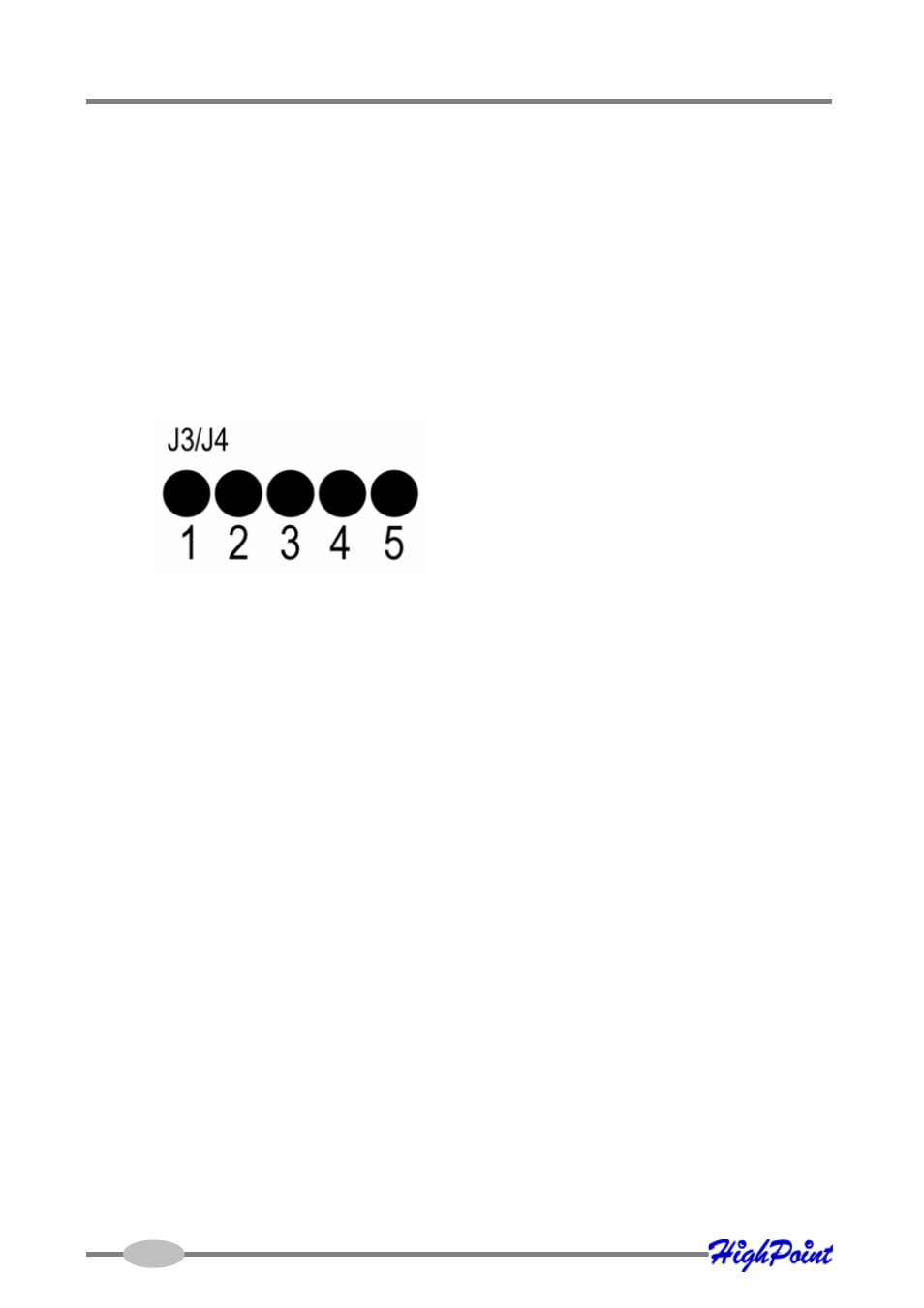

The following diagrams describe the connector pin definitions for these LED
connectors.
Pins 1-4 represent each SATAII channel/port (Pin 1 = Port 1, Pin 2 = Port 2, etc.). Pin 5
is for power (VCC, 3.3v)
RocketRAID 2310 LED Guide
For more information about LED support, and installation guides for various chassis
configurations, consult the RocketRAID 2310 LED Guide (which will be available for
download), or contact our Customer Support Department.
3 - Installing the RocketRAID 2310 Host Adapter
Note: Make sure the system is powered-off before installing the RocketRAID 2310
host adapter.
The RocketRAID 2310 includes both standard and low-profile brackets. It may be
necessary to attach the low-profile bracket in place of the standard bracket, depend-
ing upon the chassis design.
1.
Open the system chassis and locate an unused PCI-Express slot.
2. Remove the PCI slot cover.
3. Gently insert the RocketRAID 2310 into the PCI-Express slot, and secure the
bracket to the system chassis.
