RocketRAID 2310 Hardware

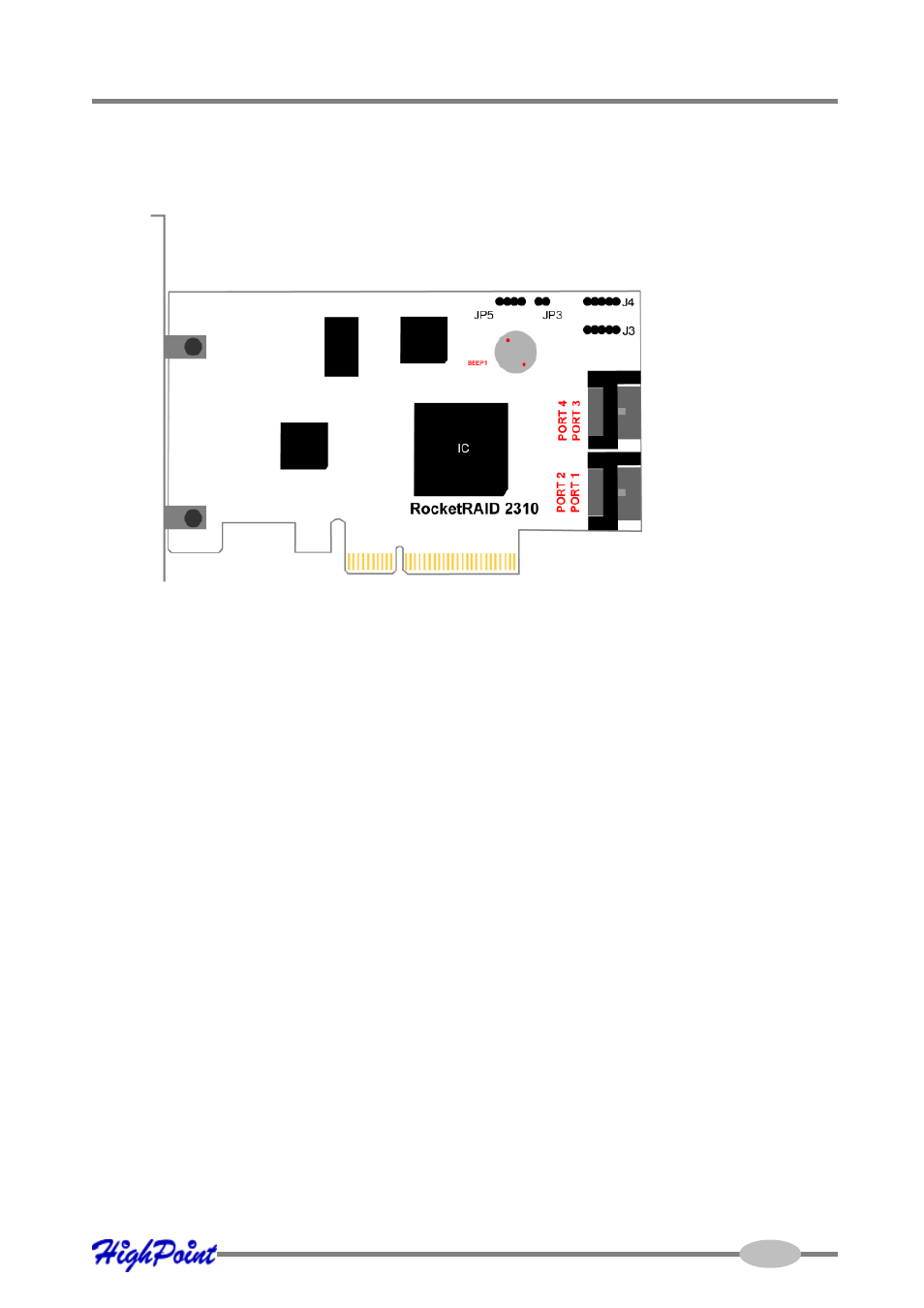

1 - RocketRAID 2310 Adapter Layout
Port1- Port4
These represent the RocketRAID 2310’s four SATAII channels. The SATA port
furthest away from the surface of the adapter is always the odd numbered channel (1,
3), while the port closest to the adapter is the even numbered channel (2, 4,).
J3, J4
These LED connectors can be used to configure Disk Failure (J3) and Disk Activity
(J4) indicators for each individual disk attached to the RocketRAID 2310. These
connections are ideal for server chassis that utilize removable drive bays.
JP3
This jumper can be used to enable or disable the card’s alarm (BEEP1). The alarm is
enabled by default (the jumper is attached). To disable the alarm, remove the jumper.
BEEP1 - Speaker
Alarm (speaker): the speaker emits and audible alarm in the case of disk/array failure.
JP5
SAF-TE support: this support is dependent upon the system chassis. Not all chassis
models support SAF-TE features. Consult the chassis’s manual for more information.
RocketRAID 2310 Hardware Description/Installation
2-1
