Hardware - Description and Installation
Hardware – Description and Installation
1-RocketRAIDAdapter layout

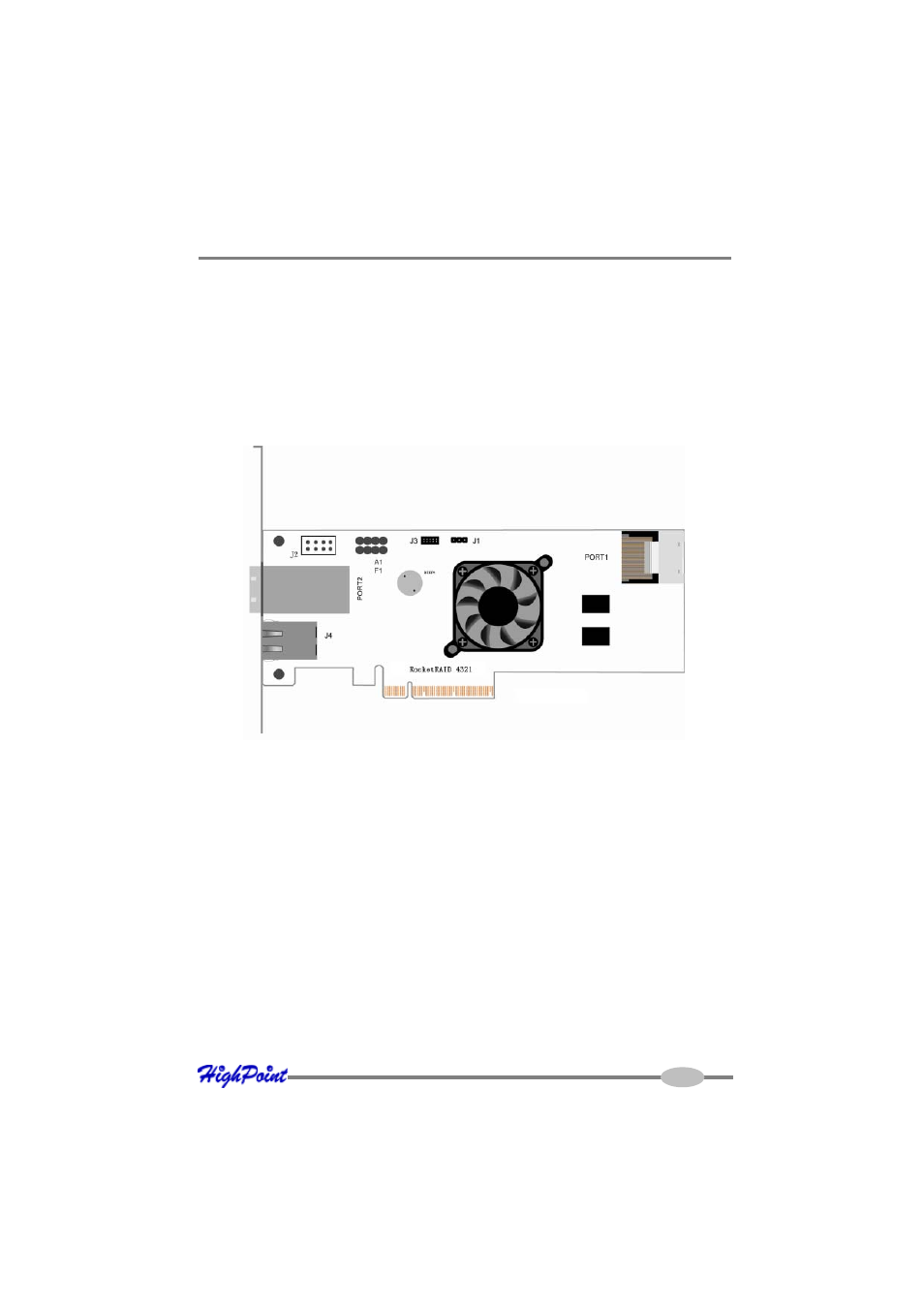

1.1 – RocketRAID 431x/4321 Adapter layout
Port1- This is provided for theRocketRAID 4310/4321.
This represent the RocketRAID 4310/4321’s a Internal Mini-SAS port.
Port2 -This is provided for theRocketRAID 4311/4321.
This represent the RocketRAID 4311/4321’s a External Mini-SAS port.
Each port can directly support up to 4 SAS/SATA hard disks.
A1,F1
A1 is Disk Activity LED’s; F1 is Disk Failure LED’s.These connectors are provided for
RocketRAID 4310/4321’s Internal Mini-SAS port.
(illustration shows the RocketRAID 4321)
9
