Hardware – Description and Installation

2.2 – Installing the RocketRAID 4322 Host Adapter

Note: Make sure the system is powered-off before installing the RocketRAID 4322

host adapter.

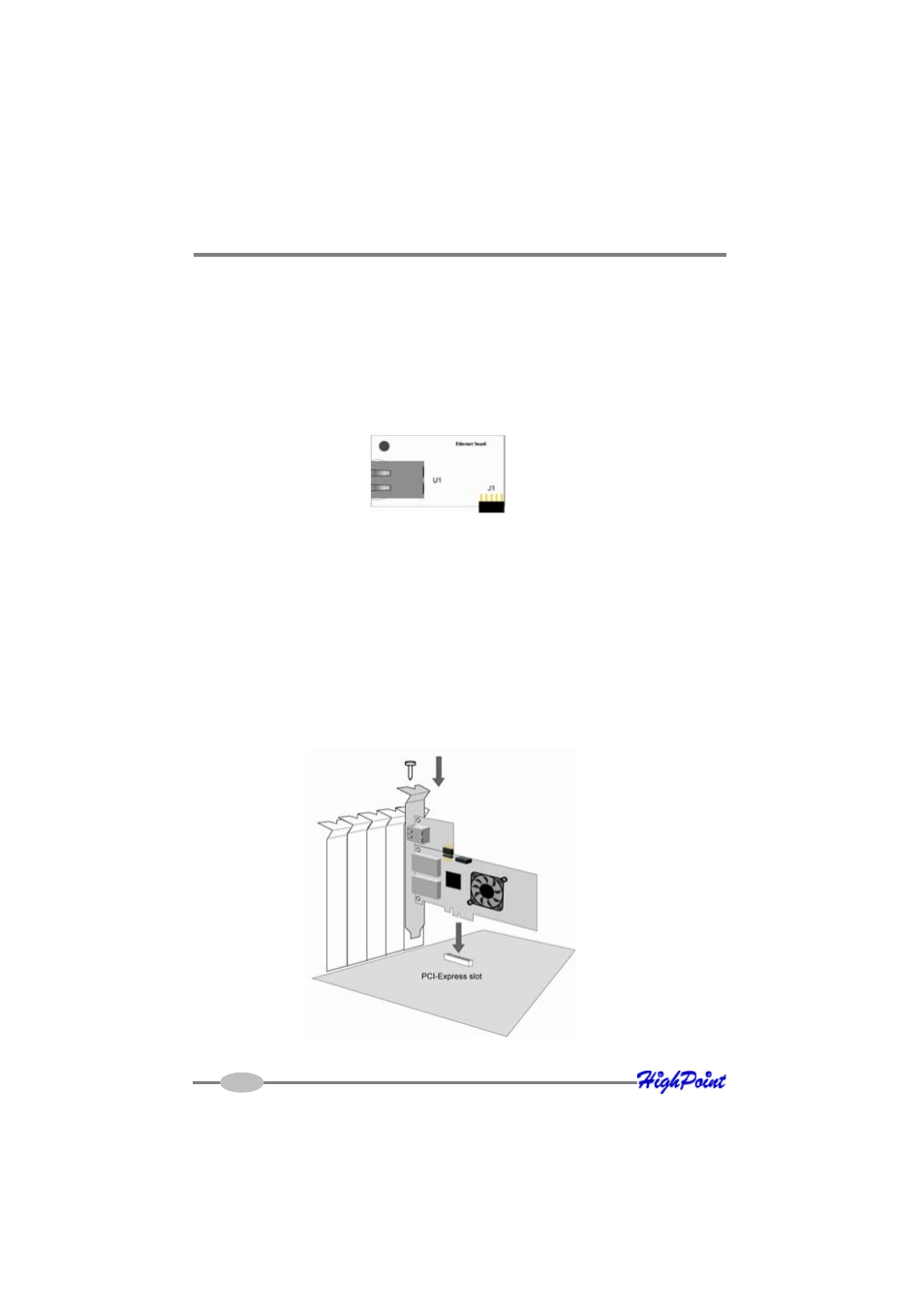

1. Installing the

HighPoint Ethernet Board – the

following illustration shows the

HighPoint Ethernet Board

.

U1 is the RJ45 connector. J1 is connector for connecting the HighPoint Ethernet

Board to the RocketRAID Host Adapter. If you want to use the Ethernet functions,

connect the HighPoint Ethernet Board to the RocketRAID Host Adapter via connec-

tors J4 through J1, and secure the two boards to the bracket. If you do not want to

use the Ethernet function, secure the RocketRAID Host Adapter to the bracket.

1. Open the system chassis and locate an unused PCI-Express x8.

2.

Remove the PCI slot cover.

3.

Gently insert the RocketRAID 4322 into the PCI-Express slot, and secure the

bracket to the system chassis.

4.

Close and secure the system chassis

16
